Mini Wireless charging IC module wearable device beauty device compact wireless charging IC module
Product Description
Input voltage: DC5V
Input current: 100-300MA
Output power: Directly connected to lithium battery for charging
Working frequency: 600kHz
Conversion efficiency: 50-70%
Charging distance: 2-5mm
Charging current: 100-300ma
Charging voltage: 4.2 pulse charging
Characteristic:
1. The charging IC is specially designed for small power digital products, with high integration, small size, powerful function and high cost performance. It can be widely used in all kinds of small power digital products.

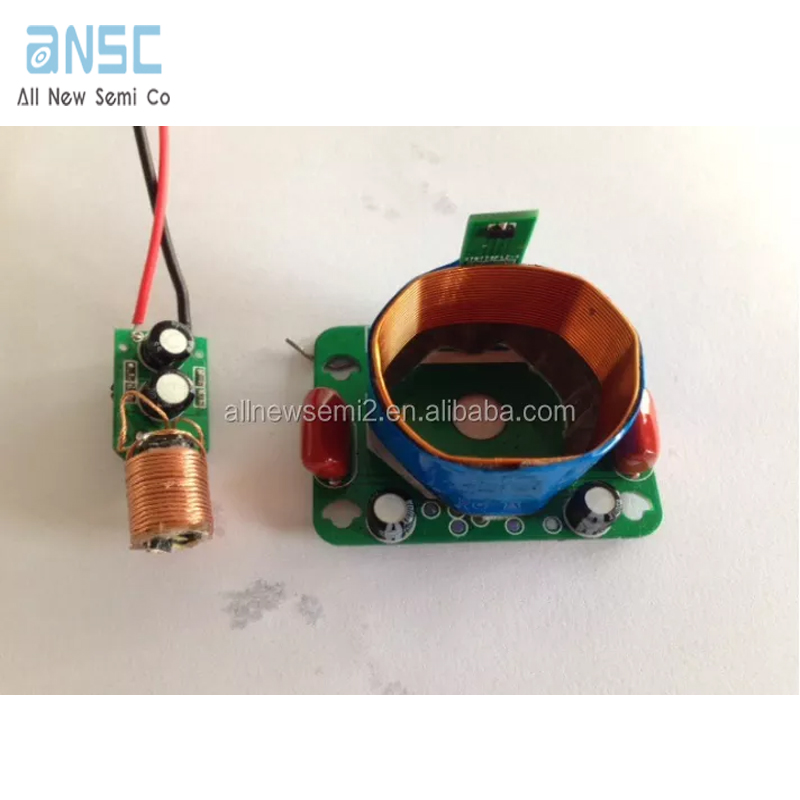

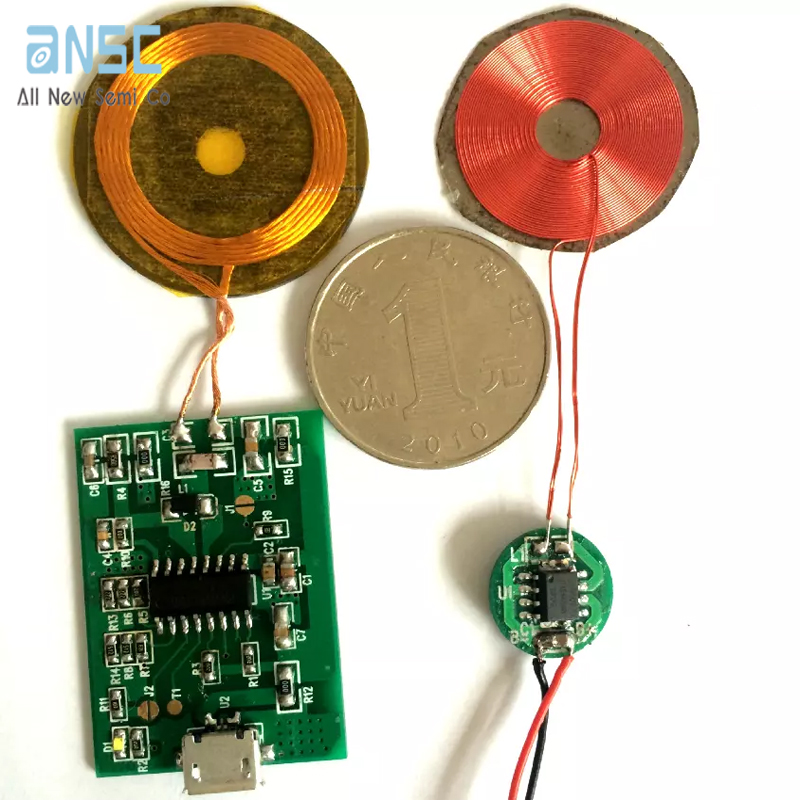

2. This charging IC pack is divided into two parts, one for transmitting SOP16 package and one for receiving one (sop8 package)
3. Has the function of foreign matter detection and over flow charging protection.
4. The receiver IC has built-in integrated rectification, filtering, voltage reduction, intelligent decoding and charging management functions, which can be directly connected to lithium battery for charging, with a current of 100-300ma.
5. The external circuit is very simple. In addition to IC itself, there are only a few external resistance and capacitance devices in the transmitting part. The cost is low. The receiving IC sop8 package has only one 0805 chip capacitor
6. Low cost, small size, can be placed in more small volume products, does not occupy space, PCB design integration is simple.
7. Wide range of applications:
Such as: electric toothbrush, beauty products, electronic cigarettes, adult products, LED desk lamp, shaver, electric toothbrush, electronic candle, fish tank lamp, toys, waterproof products and other digital products, wireless charging, DIY's best module selection!
This is a customized product, please contact us for price and more details.
