Qi wireless charging backpack Wallet Purse module transmitter with battery three in one wireless charging mobile power PCBA(Accept customization)
Product Description
Function and number:

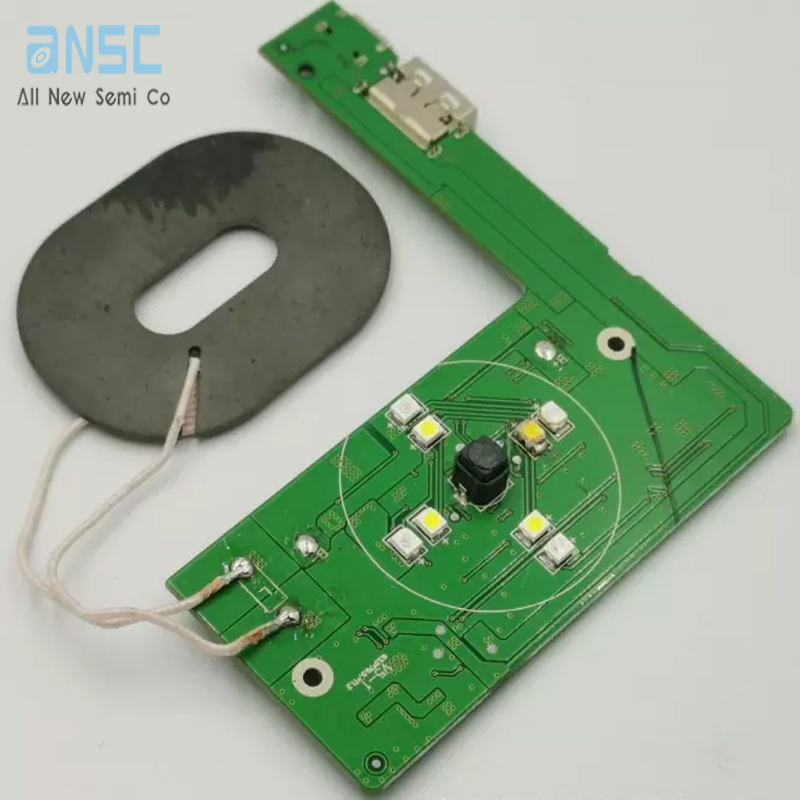

Product model: Backpack, handbag, leather bag, wallet, wireless emission battery integrated PCBA
Main functions: Charge the built-in 6000mAh battery through type C, and charge the mobile phone through 5W Qi transmission
Standard Version: WPC-1.2.4
Product application: Wireless charger in line with Qi standard
Charging type: One to one charging in corresponding area
Charging voltage: DC5V
Charging current: 2000mA Max
Transmitting power: 5W
Working frequency: 100-205khz
Power conversion: greater than 75%
Charging mode: Inductive mode
Battery capacity: 6000mAh
Power indicator: 4 LEDs
Wireless charging indicator: 1 LED
Start mode: Press key to start
| 1. Electrical specifications | |||||
| 1.1 maximum rating | |||||
| Parameter | Symbol | Rating | Company | ||
| Working environment temperature | Ta | -40 to + 85 | °C | ||
| Storage temperature | Tstg | -65 to + 150 | °C | ||
| Storage humidity | Tstr | < 95% | RH | ||
| Supply voltage | Vcc | -0.5 to + 5.4 | V | ||
| Supply current | Imax | Two point one | A |
| 1.2 rated parameters | |||||
| Test conditions: ambient temperature 25 ° C. | |||||
| Test conditions | Rating | Inimum value | Maximum | Company | |
| Power consumption in standby mode | VCC = 5V, no load | Zero point seven four | Zero point five | One | mW |
| Working frequency | Adjust load and distance | / | One hundred and five | Two hundred and five | KHz |
| Transmission efficiency | VCC = 5V, bq51013xevm test | Seventy | Fifty | Seventy-six | % |
| Working voltage | 5W output | Five | Four point five | Five point five | V |
| Wireless output power | Fast mode | Five | Four point five | Five | W |
| USB output power | Constant voltage 4.75V | Ten point five | Ten | Twelve | W |
| Working distance | Bq51013xevm test | Six | One | Eight | mm |
2. Mechanical specifications
2.1 basic parameters
PCB board size: 79.5*93.5*1.2mm
Component thickness on PCB: 4.9mm
Length of transmitting coil: 80mm
Receiving coil length: 80mm
Receiving disc size: 36*46*0.3mm
Size of emission disk: 52*46*1mm
2.2 coil magnetic sheet size (unit mm, tolerance: 0.5mm)

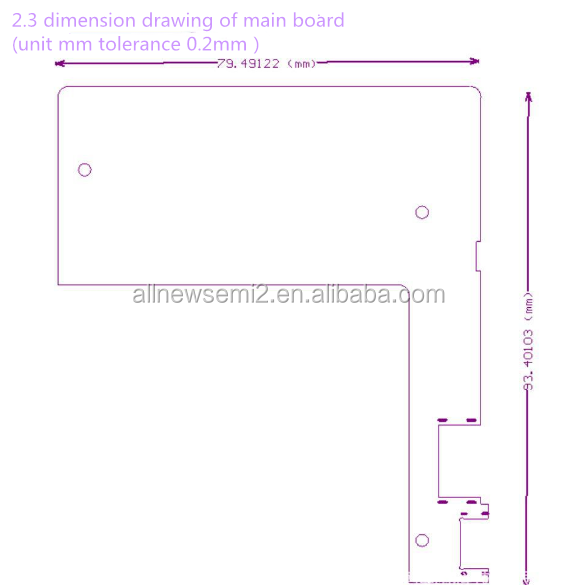

2.3 dimension drawing of main board (unit mm tolerance 0.2mm)
