Product Description
wireless charging PCBA board Q5 wireless charger pcba5w universal standard
transmitter module development and customization
| Product parameters: | |
| 1. Input voltage: | DC5V-9V |
| 2. Input current: | 5V/2A,9V/1.67A |
| 3. Output voltage: | DC5V-9V |
| 4. Output current: | 0.5A-1.67A |
| 5. Charging power: | Up to 10W |
| 6. Conversion efficiency: | More than 76% |
| 7. Transmission distance: | The maximum is 10 mm, and the recommended receiving and sending distance is 2 mm ~ 4 mm |
| 8. Executive standard: | wireless charging standard |
| 9. Working frequency: | 100~205KHZ |
| 10. Charging interface: | MICRO/TYPE-C |

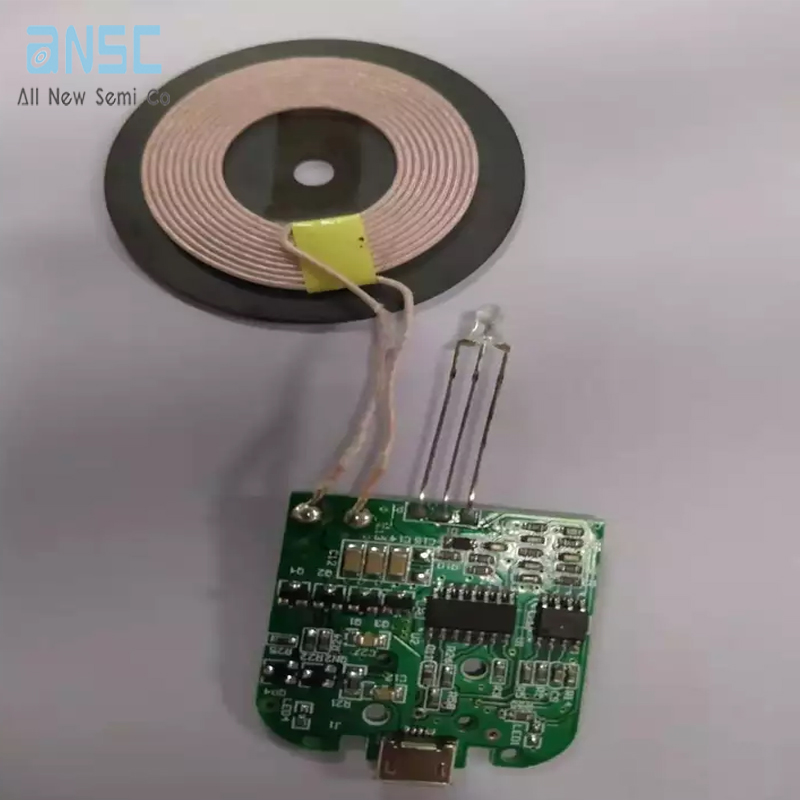

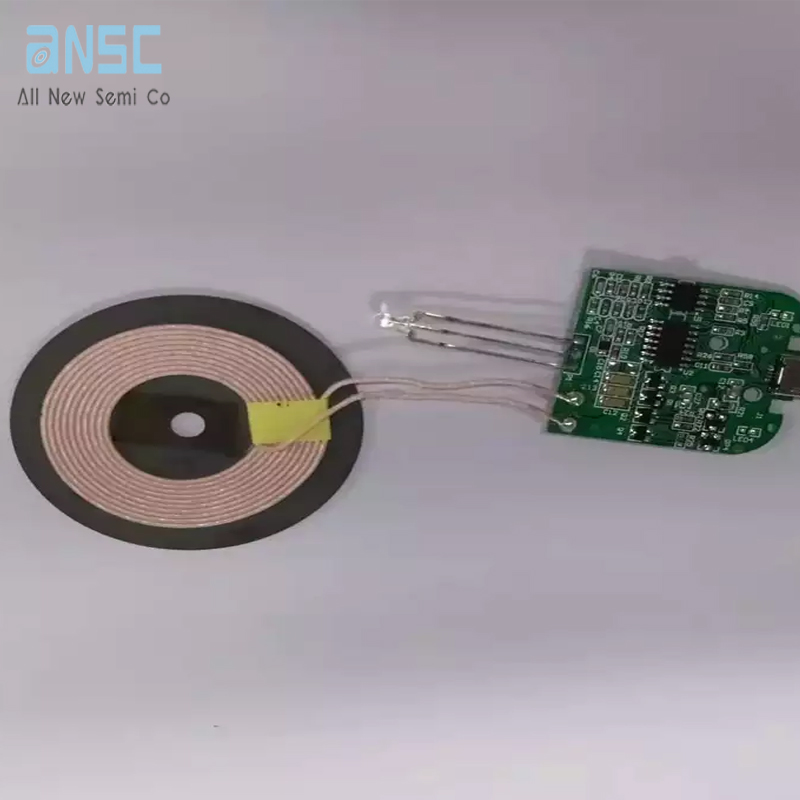

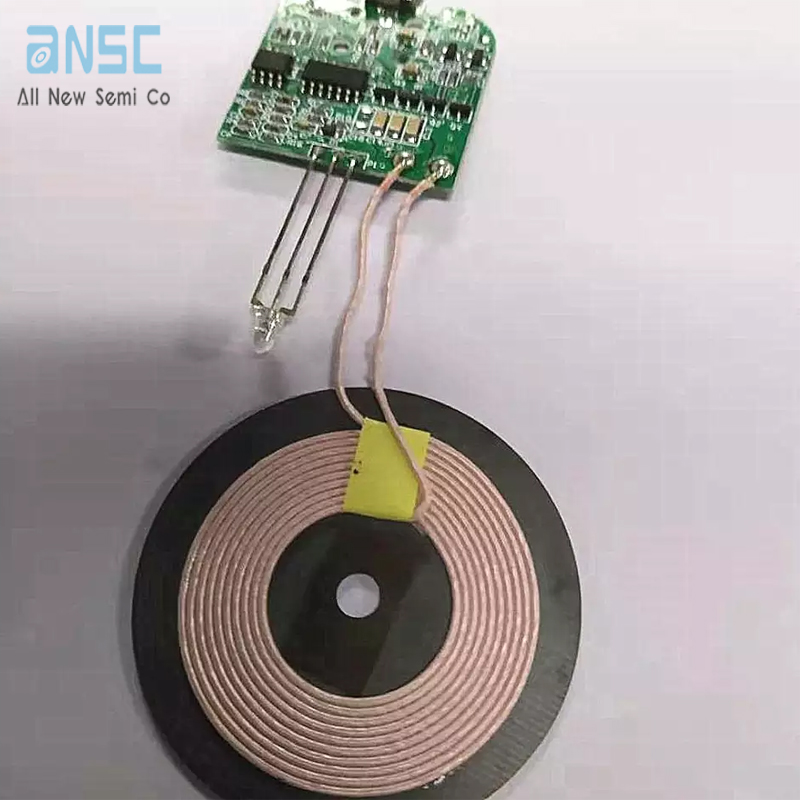

Actual image of the product
