Product Description
| Part# | ARXY15W-ZL1 |
| PCB size(mm) | 30X30(can Make it smaller) |
| Coil size(mm) | 41x29 |
| Ferrite size(mm) | 46*36 |
| Input | >5W |
| Output | 15W |
| Output voltage: | 5~14V(Adjustable) |
| Working distance(mm) | 2-6 |
| Efficiency: | max74%(5V out) max80%(9V out) |
| Working mode: | Electromagnetic induction (single coil) |
| Work agreement: | WPC1.2 |
| Working frequency: | 110-205KHz |
| Over voltage protection: | Support |
| Support rated output current: | 1.7A |
| Support over-current protection value: | 2.0A |
| Support chip internal over temperature protection value: | 150℃ |
| Support certification: | QI,CE,FCC,RoHS |
| about production | no stock,need production |
| Features | High current/ best price/Qi standard |
| Customized | Can customize larger current, NOT Qi |
Support Intelligent detection / Over current protection / Over temperature protection
Other RX modules

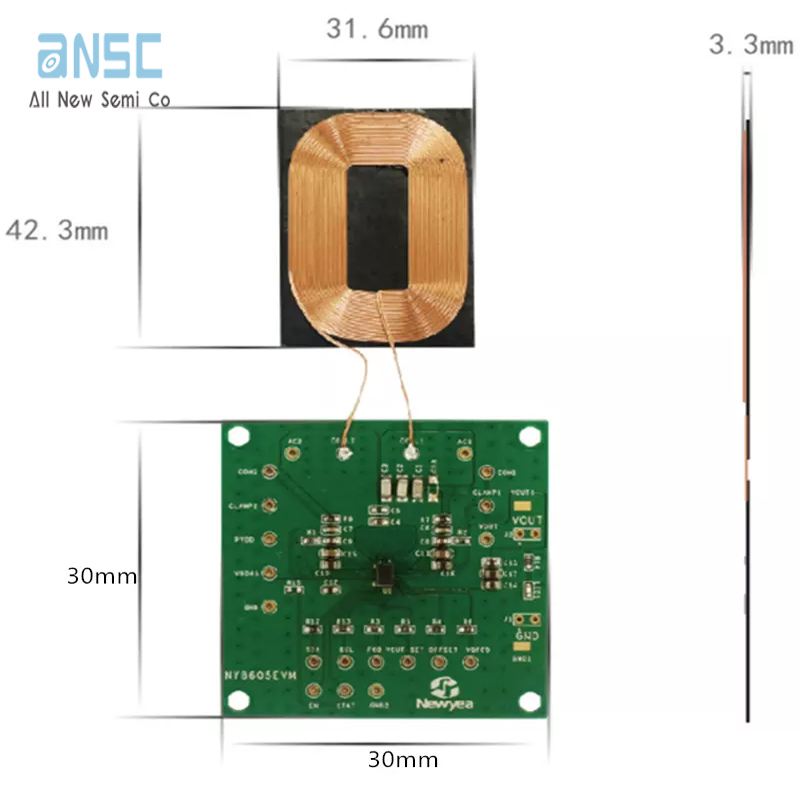

Dimension descriptio
