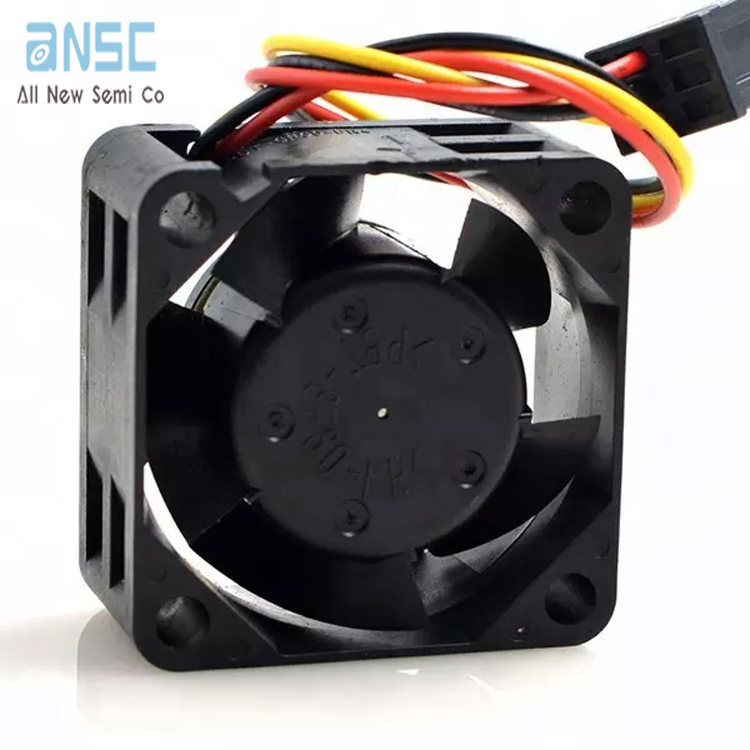

24V 0.07A FANUC CNC Machinery fan A90L-0001-0510
Model Number: A90L-0001-0510
Size: 40X40X20MM
Voltage: DC24V
Model Number: 1608KL-05W-B39
Size: 40*40*20MM
Voltage: 24V
Currect: 0.07A
Power: 1.92W
Speed: 6500RPM
Air volume: 7.4CFM 0.21 cubic meters/minute
Win pressure: 42.2pa
Noise: 25.5 DBA
Ambient temperature: -20~75°
Service life: 50000 hours
Features: Overwhelmingly long service life, 180,000 hours of MTBF; no compromises, high-accuracy parts construction
Service life: 18.0000 hours (at 25°C, 45 to 85% relative humidity)
Fan frame: injection molding, PBT +30% glass fiber +VO flame retardant;
Feng Ye: injection molding, PBT +30% glass fiber +VO grade flame retardant;
Fan rotation: counterclockwise from the blade direction;
Operating temperature: -10 degrees Celsius to +70 degrees Celsius;
Storage temperature: -40 degrees Celsius to +70 degrees Celsius;
Bearing: high precision ball bearing;
Power range: plus or minus 15% of rated power;
Insulation resistance: more than 500 megohms;
Withstand voltage: sink leakage current 0.5mA 500V/1 minute
