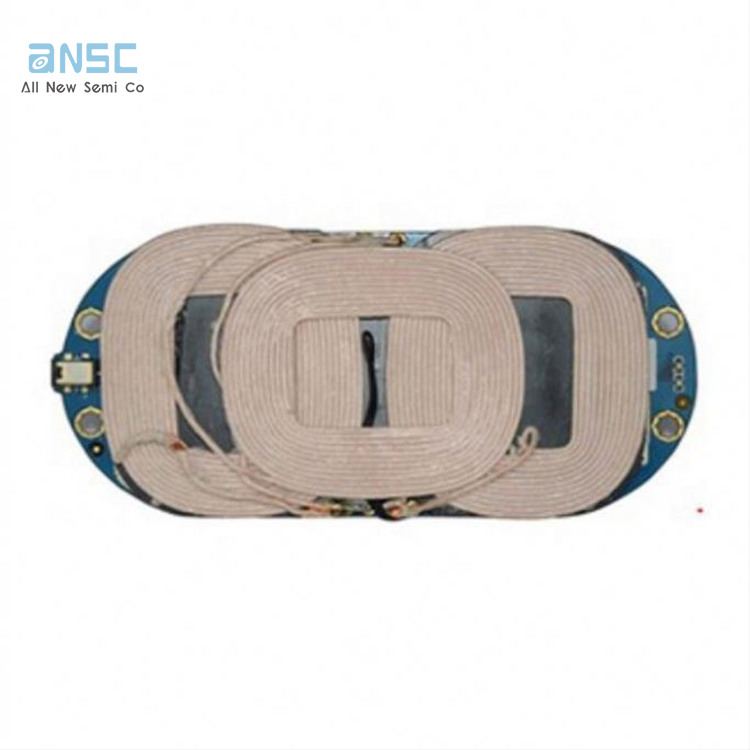

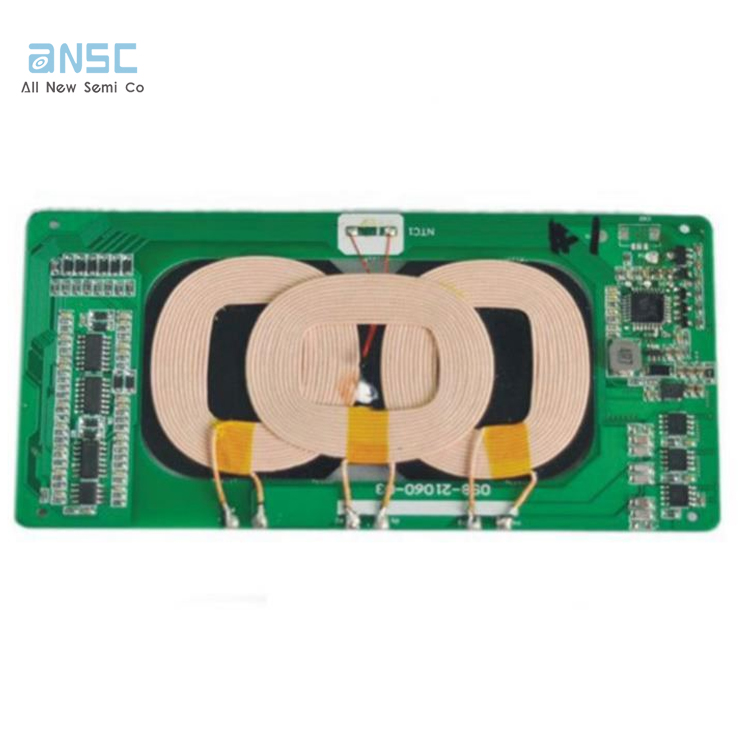

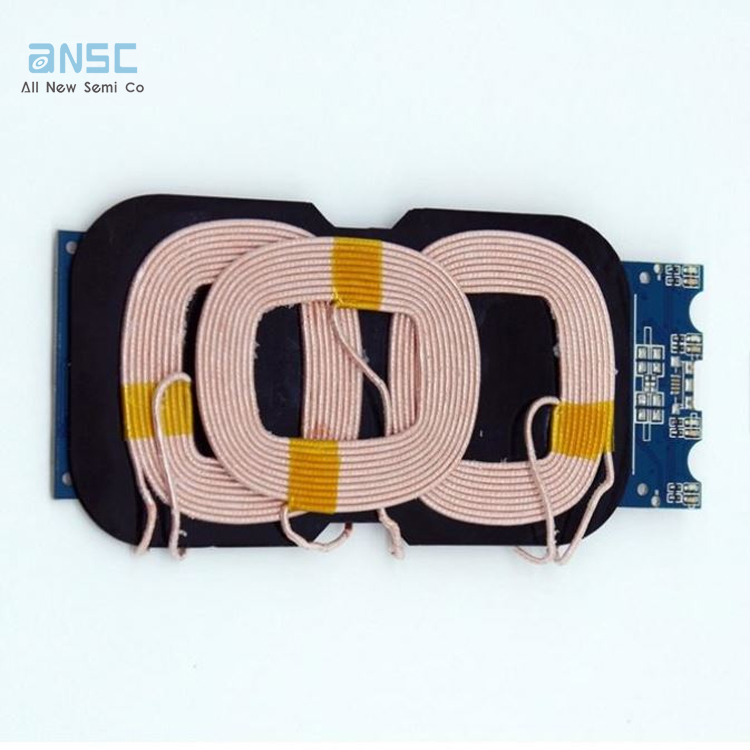

| Custom 3 Coils Wireless Charger Transmit PCB for Samsung and iPhone |
|
| Product Specification: |
| 1 Version Solution |
| 2. QI Compatible with all Qi Standard |
| 3.Wireless Power Transmitter Module , |
| 4. Size : you demand |
| 5. Input: DC 5V2A / 12V1A |
| 6. Output :5V/1A |
| 7. Power:5W |
| 8. standby current : <10mA |
| .9. Transmitting frequency: 105K-205KHZ |
| 10. charging distance : 3mm~10mm (max) |
| 11. Protectoin : Over-current / overheating / short circuit |
| 12. LED : RED / BLUE |
| 13. Operating amb. Temp. & Hum : 0°C – 55°C , 10 – 85% |
| 14. Charging efficiency : 70% |
| 15. Certificate: CE\ROHS\FCC |
|

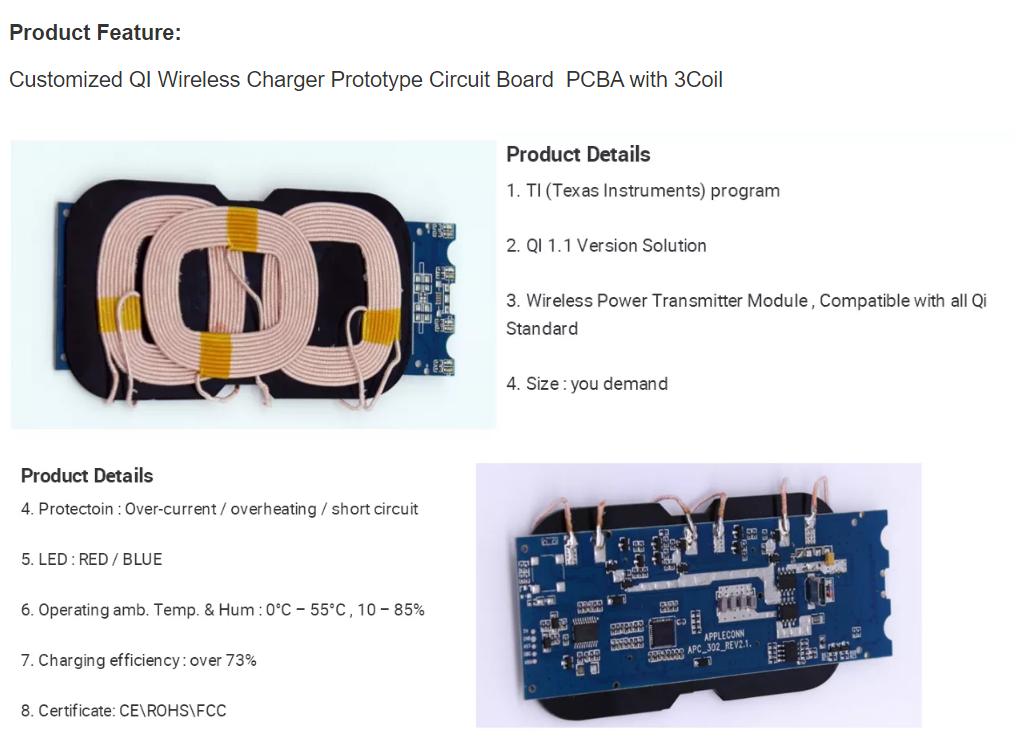

| Product Feature: |
| Customized QI Wireless Charger Prototype Circuit Board PCBA with 3Coil |
