Product Introduction

Customizable power supply range: 5-30V

Common anode wiring method:

For example, controlling a 12V light strip: Connect the positive pole of the 12V power supply to the VCC of the module. Connect the negative terminal to the GND of the module. The positive terminal of the controlled light strip is connected to the VCC negative terminal of the module at 0UT. After power on, you can control the light strip by touching the module with your fingers. Long press the touch button to adjust the brightness of the light, such as controlling the speed of a 12V motor: the positive terminal of the 12V power supply is connected to the VCC of the module. Connect the negative terminal to the GND of the module. The positive pole of the controlled motor is connected to the VCC of the module. The 0UT of the negative terminal connected to the module. After power on, the motor can be controlled by touching the module with your fingers, and long pressing the touch button can control the motor speed.

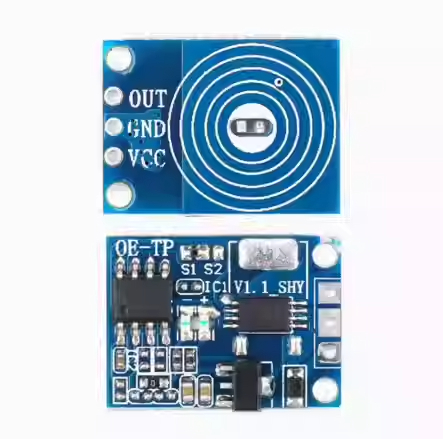

Control interface: There are a total of 3 pins (VCC, GND, 0UT). VCC is the power supply, GND is the ground, and 0UT is the digital signal output pin

LED indicator light: powered on green (blue) light on, touch sensing output red light on

Touch area: The internal area of an icon similar to a fingerprint, which can be triggered by lightly touching with a finger.

Positioning holes: 2 M2 screw positioning holes with a diameter of 2m, making it easy to install and position the module, and achieving combination between modules

Application: 12V LED brightness adjustment touch control. 5-20V DC motor speed control.

Product Photograph
