Spot quality online sx1278 lora module lora ra-02 lora wireless transmission serial port

Product Descriptions：

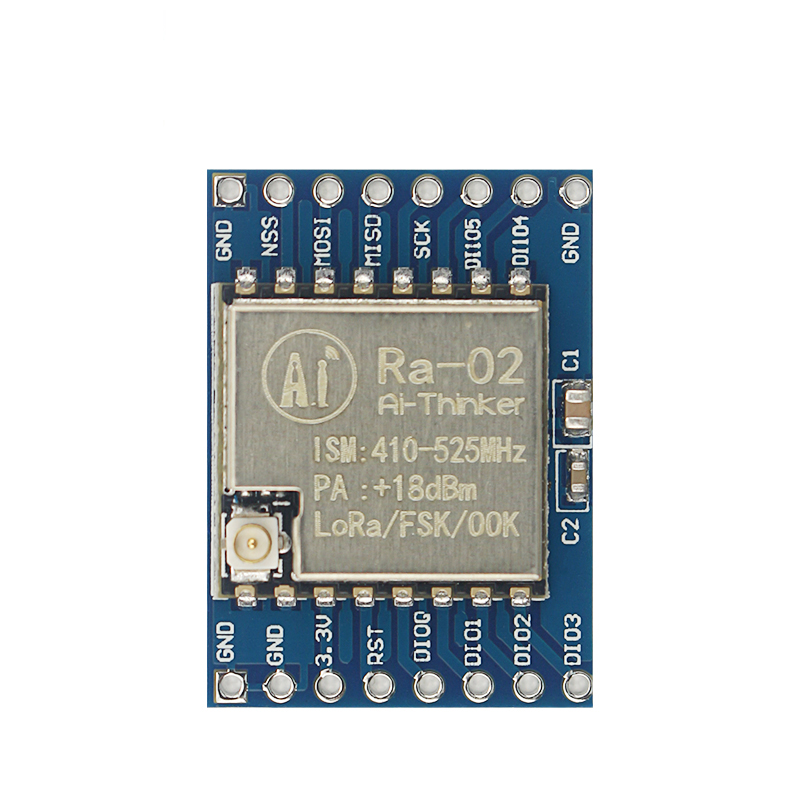

The SX1278 LoRa spread spectrum wireless module adopts the Anxinke LoRa series module Ra-02 The exported interface is compatible with the NRF24L01 module. If you want to transmit data over long distances, you can directly replace NRF24L01 by changing the program without changing the hardware design.

Anxinke LoRa series modules (Ra-01/Ra-02), the RF chip SX1278 of this series module mainly uses LoRa ? Remote modem, used for ultra long distance spread spectrum communication, has strong anti-interference ability and can minimize current consumption. Utilizing SEMTECH's LoRa ? With patented modulation technology, the SX1278 has high sensitivity exceeding -148dBm, power output of+20dBm, long transmission distance, and high reliability. Meanwhile, compared to traditional modulation techniques, LoRa ? Modulation technology also has significant advantages in anti blocking and selection, solving the problem that traditional design schemes cannot simultaneously consider distance, anti-interference, and power consumption. Ra-01 and Ra-02 operate at a frequency of 433M, mainly targeting regions in the 433M network segment, including China and Southeast Asia.

SX1278 features:

? LoRa ? Spread spectrum modulation technology

? Ultra long communication distance of 15KM

? Constant RF power output during voltage changes of+20dBm-100mW

? High sensitivity: as low as -148dBm

? Half duplex SPI communication

? Programmable bit rate up to 300kbps

? Supports FSK GFSK、MSK、GMSK、LoRa ? And OOK modulation method

? 127dB RSSI dynamic range

? Automatic RF signal detection, CAD mode, and ultra high speed AFC

? Packet engine with CRC and up to 256 bytes

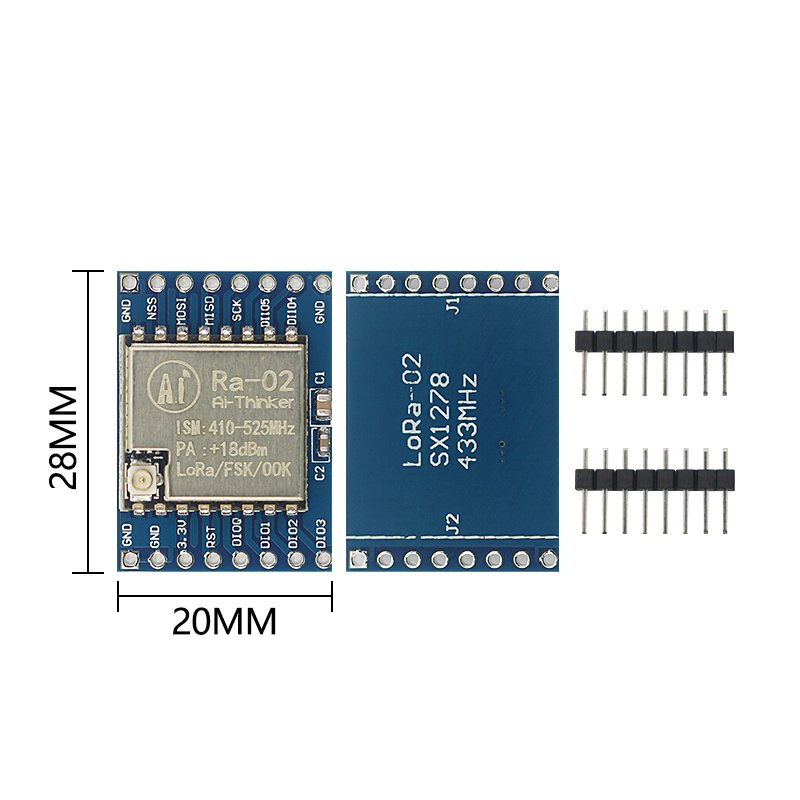

? Small volume double row stamp hole patch packaging

? With shielding shell

? IPEX external antenna interface (excluding antenna)
