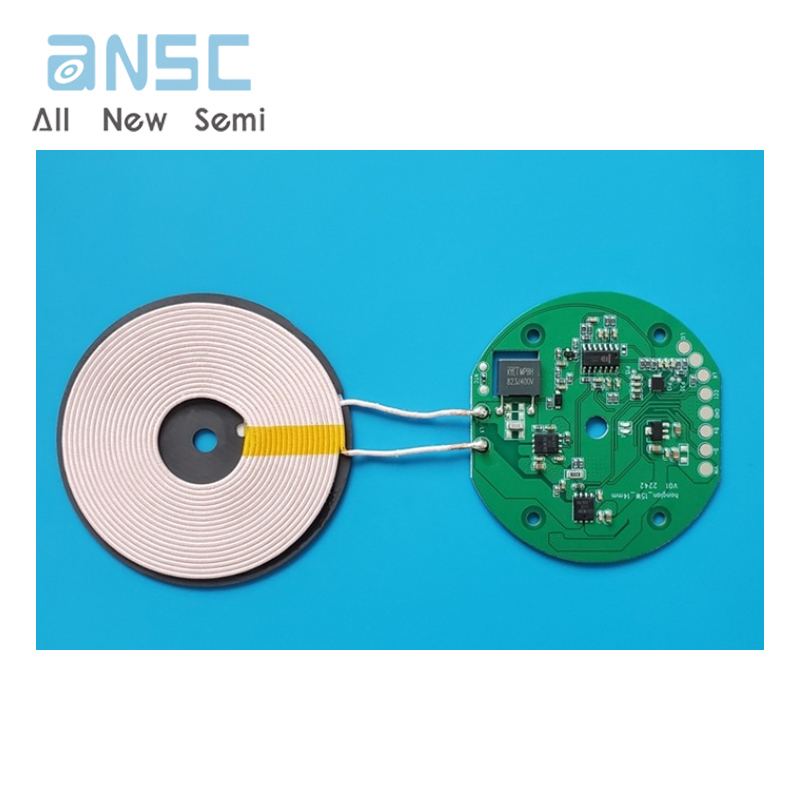

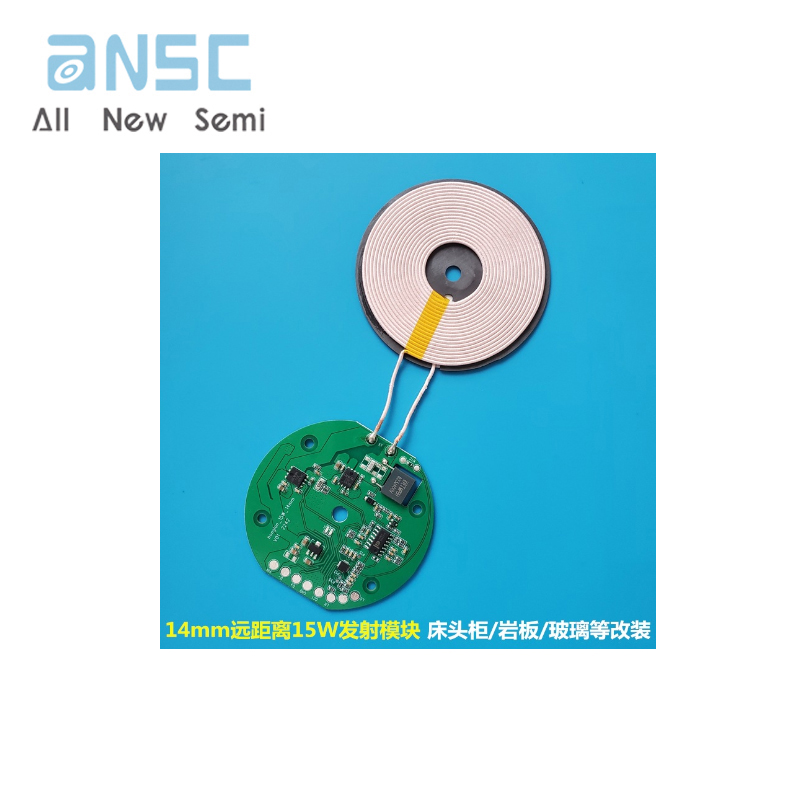

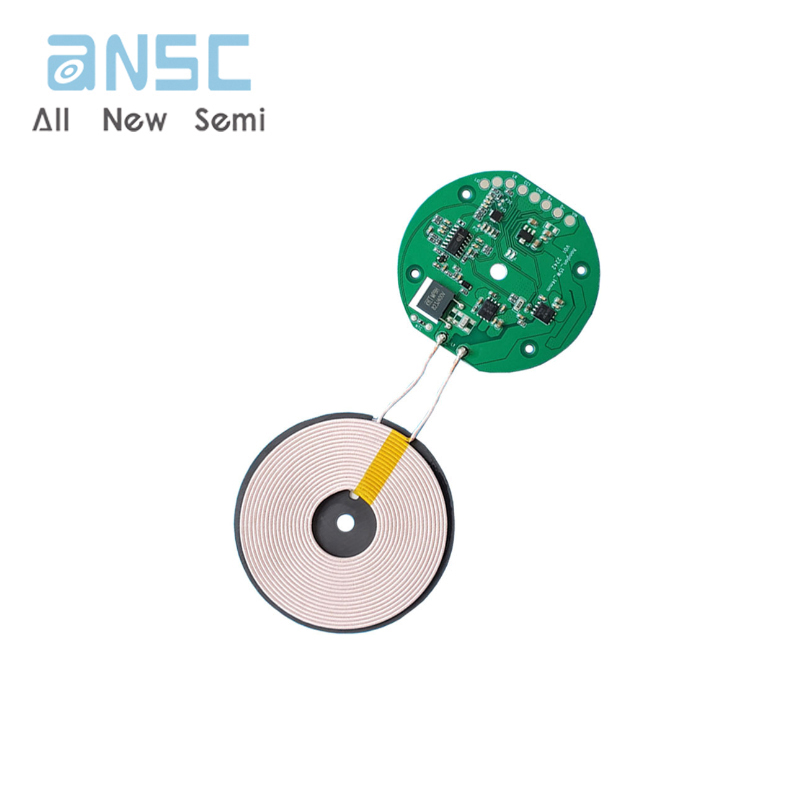

14mm long-distance 15W high-power transmission module, mobile wireless charger, furniture, rock glass DIY modification
Product Feature:
Compliant with WPC V1.2.4 wireless charging specifications
Product standard: EPP certification standard
Support mainstream smartphones such as Huawei, Xiaomi, Samsung, and Apple
Using high-performance control chips, stable and efficient
Penetrating non-metallic materials such as rock slabs, wood, glass, plastic, etc

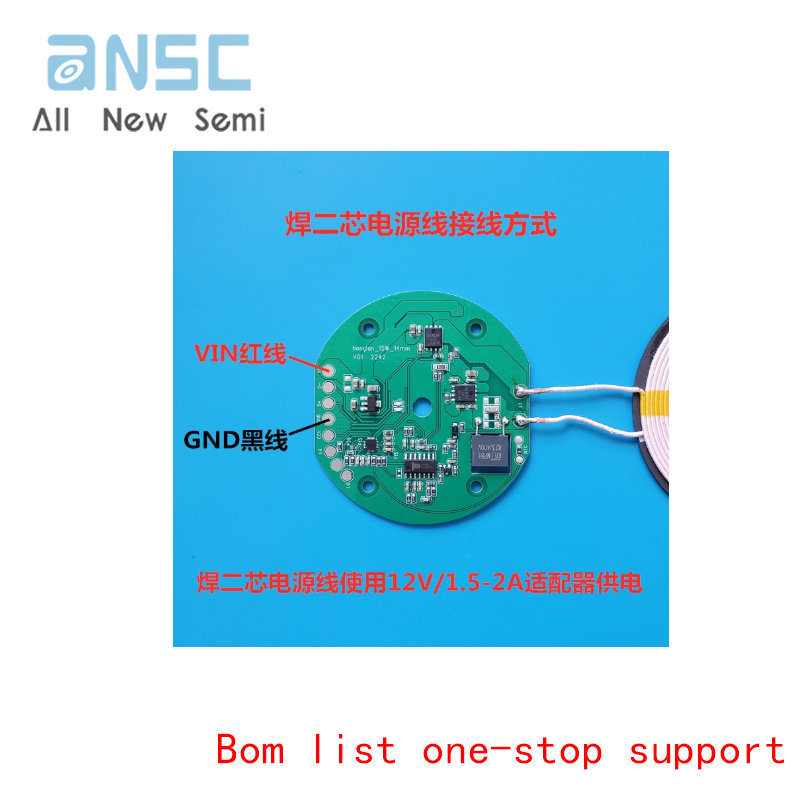

Use a 12V/1.5-2A adapter or QC3.0 charging head for power supply
Output power: 15W/10W 7.5W/5W Automatic recognition
Charging efficiency: around 76%
Charging distance 4-14mm, ideal distance 5-12mm
Mobile phones should not be placed at zero distance on the coil, and should be spaced at least 5 millimeters apart
Working frequency: 100-200Khz

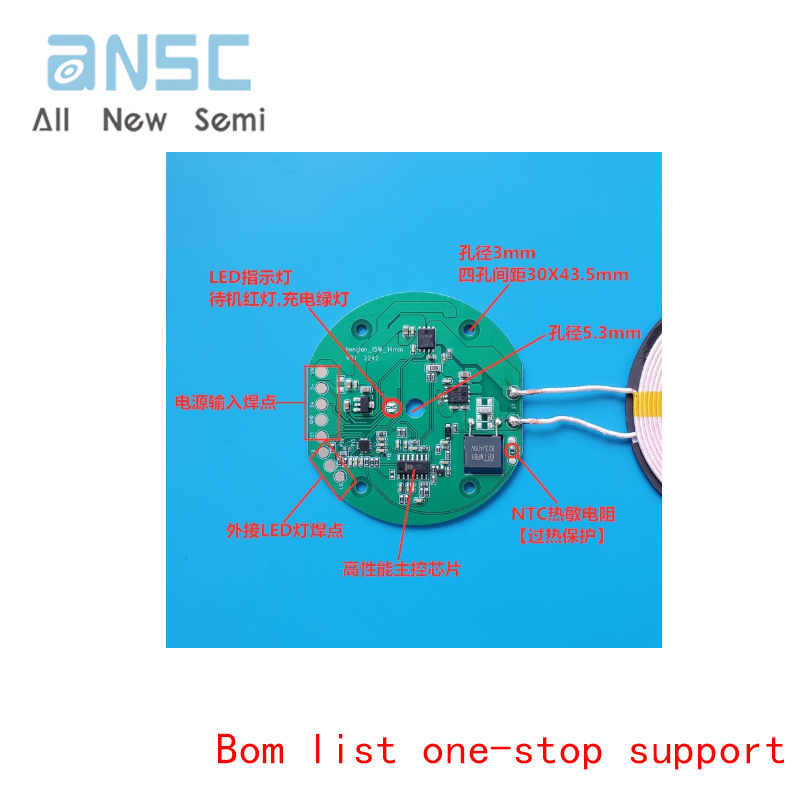

Equipped with quadruple protection functions such as overcurrent, overvoltage, overtemperature, and short circuit
Support Foreign Object Detection (FOD)

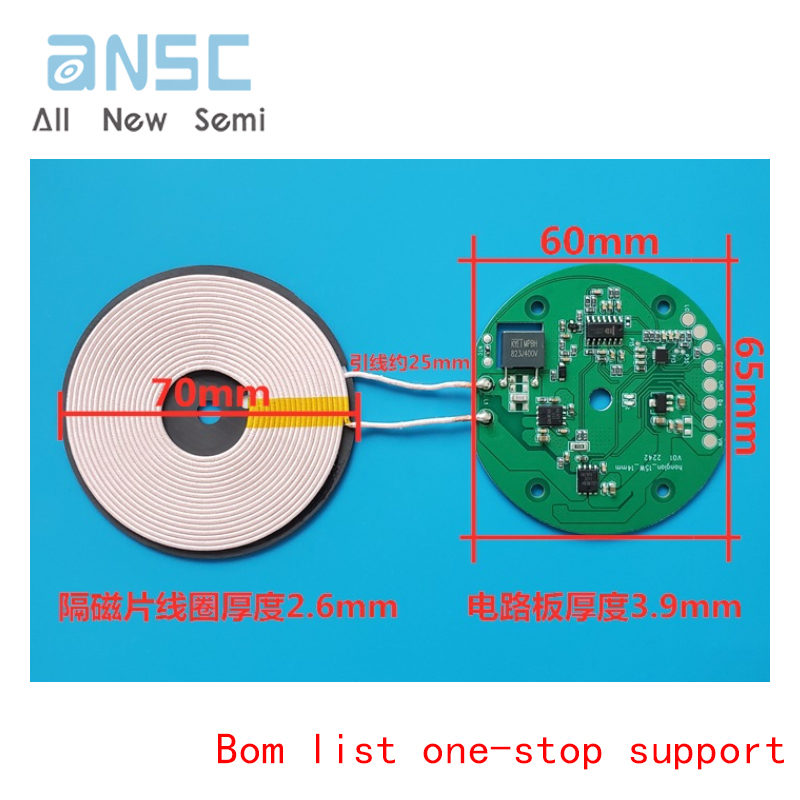

PCBA board size: length 65mm * width 60mm * thickness 3.9mm

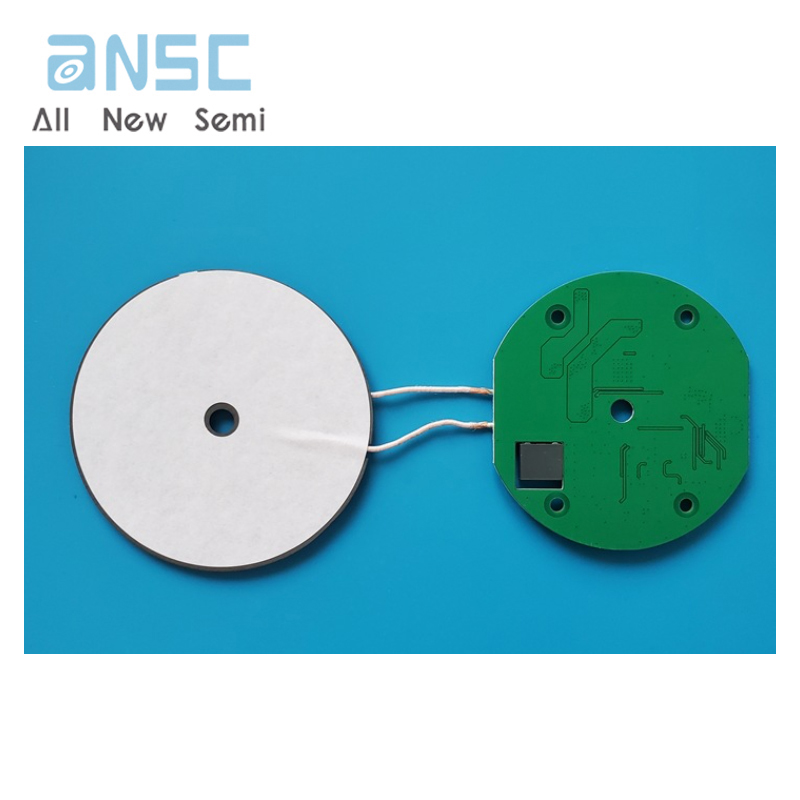

Magnetic isolation coil size: diameter 70mm, thickness 2.6mm, 18 coils
