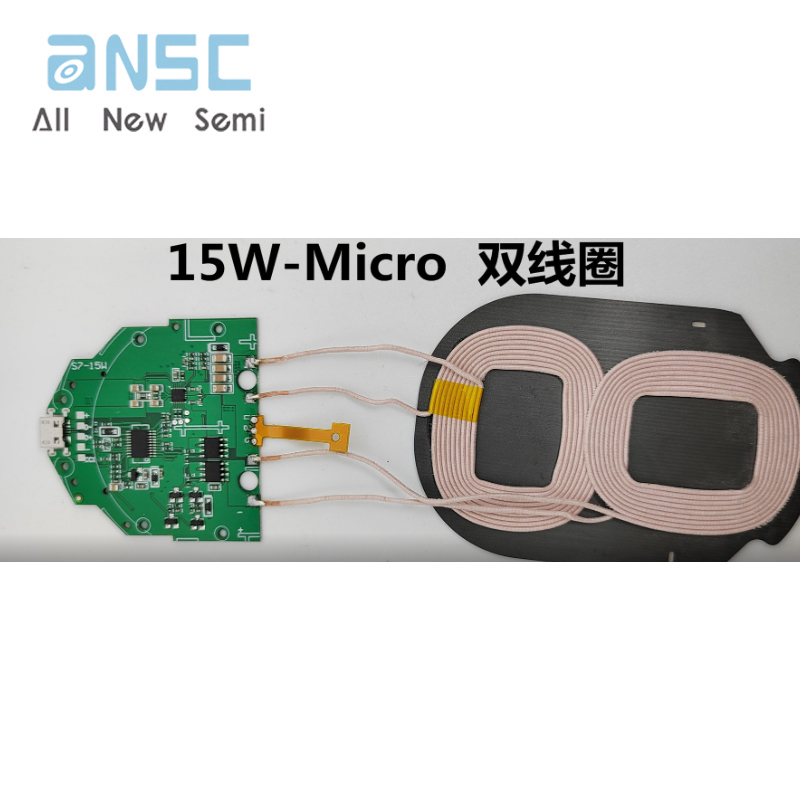

High power 15W dual coil fast charging wireless charger solution 15W compatible 7.5W factory direct sales in stock
Product Feature:
1. Input voltage: DC9V1.5-2A. If the voltage exceeds this range, an alarm will be triggered and charging will stop
2. Output voltage: 9V ± 0.1V
3. Charging current: 1.66A
4. Charging power: up to 15W compatible with 10W/7.5W/5W
5. Conversion efficiency: greater than 73% with foreign object detection
6. Transmission distance: maximum 10mm
7. Standby power consumption: average power consumption less than 50mW
8. Over temperature protection: When the temperature is above 60 ° C during charging, it will automatically stop charging for 1 minute and wait for the temperature to drop before recharging
9. Overcurrent protection: Automatically stops charging when the output current exceeds 2A during charging to prevent damage to the charger
10. Execution standard: Qi wireless charging standard
11. Product certification: CE/FCC, compatible with QI certification standards
12. Operating frequency: 110-205KHZ
13. Weight: 90 grams
14. Indicator light: Charging blue light, fully charged green light, flashing alternately in case of malfunction
About Application
About customization

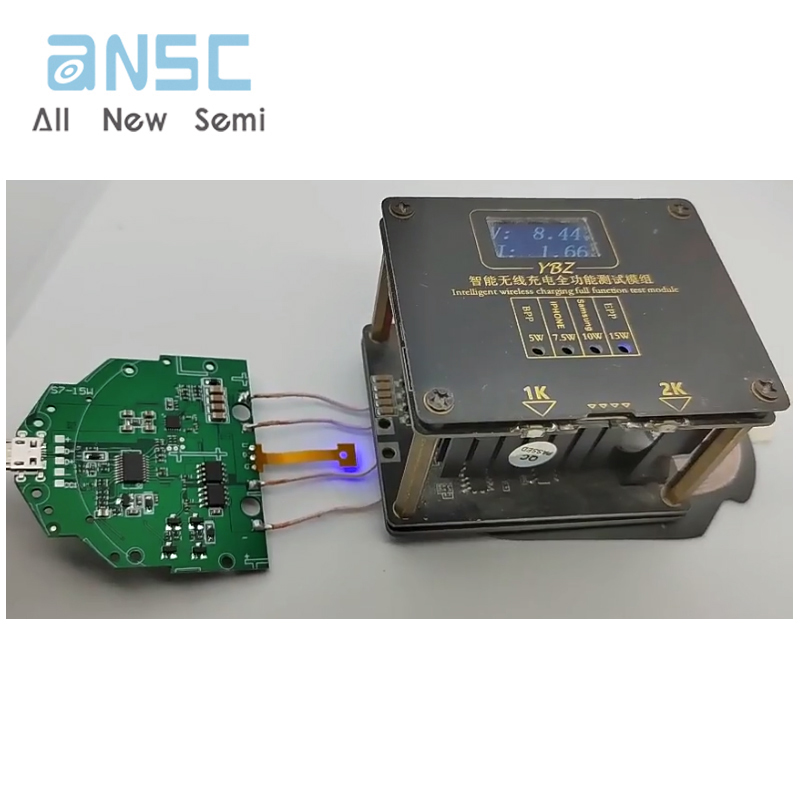

Delivery display
