圖片僅供參考

Hot selling original ATSAME70Q21A-CN SAM E70 Microcontroller IC 32-Bit Single-Core 300MHz 2MB FLASH 144-LFBGA quality assurance

ATSAME70Q21A-CN

Model:ATSAME70Q21A-CN

Manufacturer:Microchip Technology

Package:144-LFBGA

詳情

Product Features


Core

? Arm? Cortex?-M7 running at up to 300 MHz

? 16 Kbytes of I-Cache and 16 Kbytes of D-Cache with Error Code Correction (ECC)

? Single-precision and double-precision HW Floating Point Unit (FPU)

? Memory Protection Unit (MPU) with 16 zones

? DSP Instructions, Thumb?-2 Instruction Set

? Embedded Trace Module (ETM) with instruction trace stream, including Trace Port Interface Unit (TPIU)

Memories

? Up to 2048 Kbytes embedded Flash with unique identifier and user signature for user-defined data

? Up to 384 Kbytes embedded Multi-port SRAM

? Tightly Coupled Memory (TCM)

? 16 Kbytes ROM with embedded Bootloader routines (UART0, USB) and IAP routines

? 16-bit Static Memory Controller (SMC) with support for SRAM, PSRAM, LCD module, NOR and NAND Flash with on-the-fly scrambling

System

? Embedded voltage regulator for single-supply operation

? Power-on-Reset (POR), Brown-out Detector (BOD) and Dual Watchdog for safe operation

? Quartz or ceramic resonator oscillators: 3 MHz to 20 MHz main oscillator with failure detection, 12 MHz or 16 MHz needed for USB operations. Optional low-power 32.768 kHz for RTC or device clock

? RTC with Gregorian calendar mode, waveform generation in low-power modes

? RTC counter calibration circuitry compensates for 32.768 kHz crystal frequency variations

? 32-bit low-power Real-time Timer (RTT)

? High-precision Main RC oscillator with 12 MHz default frequency

? 32.768 kHz crystal oscillator or Slow RC oscillator as source of low-power mode device clock (SLCK)

? One 500 MHz PLL for system clock, one 480 MHz PLL for USB high-speed operations

? Temperature Sensor

? One dual-port 24-channel central DMA Controller (XDMAC) Low-Power Features

? Low-power sleep, wait and backup modes, with typical power consumption down to 1.1 μA in Backup mode with RTC, RTT and wakeup logic enabled

? Ultra low-power RTC and RTT

? 1 Kbyte of backup RAM (BRAM) with dedicated regulator


Specifications


AttributeAttribute value
ModelANSC-M24081960
Product NameATSAME70Q21A-CN
CategoryIntegrated Circuits (ICs)
Embedded
Microcontrollers
MfrMicrochip Technology
SeriesSAM E70
PackagingTray
Part StatusActive
DigiKey ProgrammableNot Verified
Core ProcessorARM? Cortex?-M7
Core Size32-Bit Single-Core
Speed300MHz
ConnectivityCANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SPI, UART/USART, USB
PeripheralsBrown-out Detect/Reset, DMA, I2S, POR, PWM, WDT
Number of I/O114
Program Memory Size2MB (2M x 8)
Program Memory TypeFLASH
EEPROM Size-
RAM Size384K x 8
Voltage - Supply (Vcc/Vdd)1.62V ~ 3.6V
Data ConvertersA/D 24x12b; D/A 2x12b
Oscillator TypeInternal
Operating Temperature-40°C ~ 105°C (TA)
Mounting TypeSurface Mount
Supplier Device Package144-LFBGA (10x10)
Package / Case144-LFBGA
Base Product NumberATSAME70

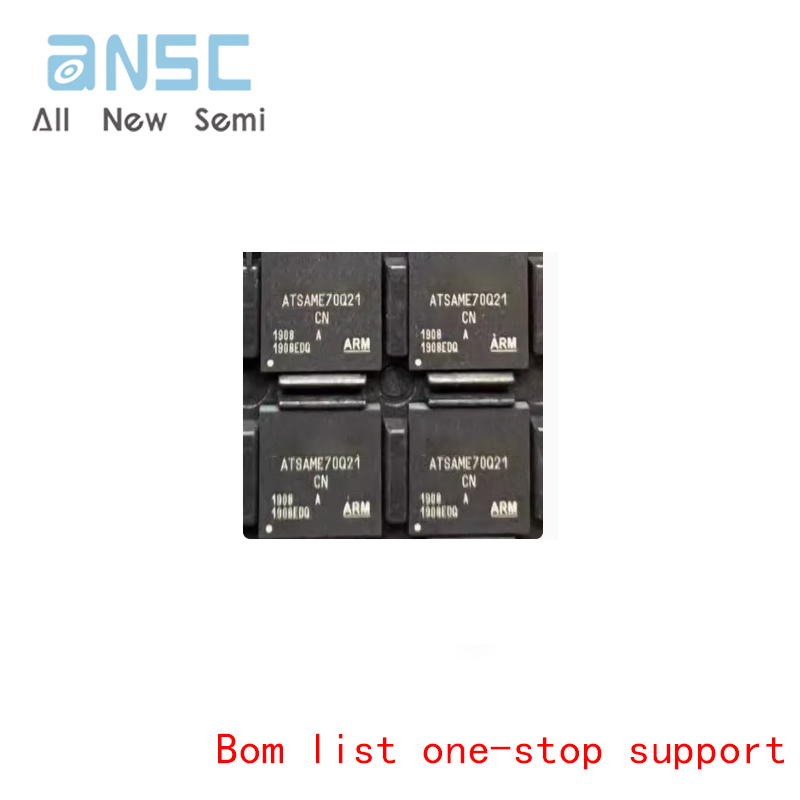

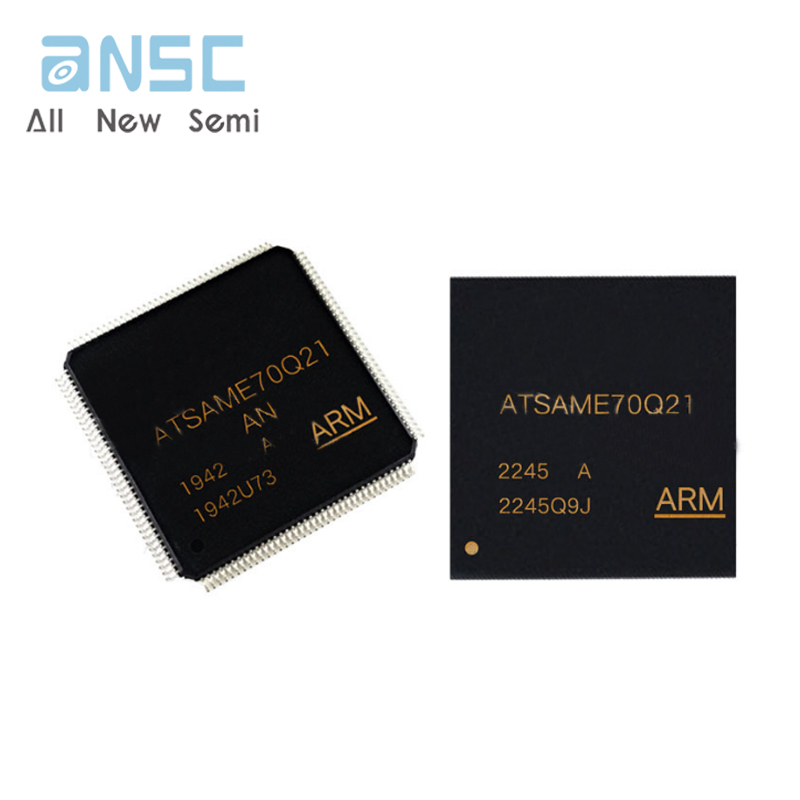

Actual product photos


ATSAME70Q21A-CN


Product Data Book:


搜狗高速瀏覽器截圖20240819165445

搜狗高速瀏覽器截圖20240819165453

搜狗高速瀏覽器截圖20240819165457


For more product information, please download the PDF



Payment&Transportation


詳情8.1


Official Certificate&Certificate



詳情頁3.1



Multiple product supply



詳情5.1


Company office environment


詳情6.1


Warehouse Real Shot




Standard packaging


詳情9


We also provide :


Part NoManufacturerDate CodeQuantityDescription
LM22676ADJNS19+250SOP8
TPS562201DDCRTI22+795500SOT23-6
NJG1806K75JRC22+500000DFN6
TLV74318PDQNRTI22+402000X2SON-4
NJG1801K75JRC22+300000SMD
NJG1804K64JRC22+300000DFN8
LM27761DSGRTI22+151000WSON8
TLV62565DBVRTI22+138000SOT23-5
TPS613222ADBVRTI22+108000SOT23-5
LNK625DG-TLPOWER22+100000SOP-8
OPA4322AIPWRTI22+100000TSSOP14
TLV75528PDRVRTI22+99000WSON-6
TPS7A2025PDQNRTI22+78500X2SON-4
TLV62568DBVRTI22+72000SOT23-5
STM32L051K8U6TRST22+60000QFN32
SKY66421-11SKYWORKS22+56500QFN16
TPS7A1111PDRVRTI22+54000WSON6
TLV62569PDDCRTI22+52000SOT23-6
TLV62569DBVRTI22+48000SOT23-5
TPS23753APWRTI22+40000TSSOP14
NB691GG-ZMPS22+30000QFN
SN74AHC1G02DBVRTI22+27939SOT-23
TPS63000DRCRTI22+23238VSON10
TLV75533PDRVRTI22+21500WSON6
NB687BGQ-ZMPS22+20000QFN
A3916GESTR-T-1ALLEGRO22+17150QFN-20
TPS62135RGXRTI22+15000VQFN11
TLE2022AMDRTI0803+12500SOP8
TPS23756PWPRTI22+12000HTSSOP-20
