Product Introduction

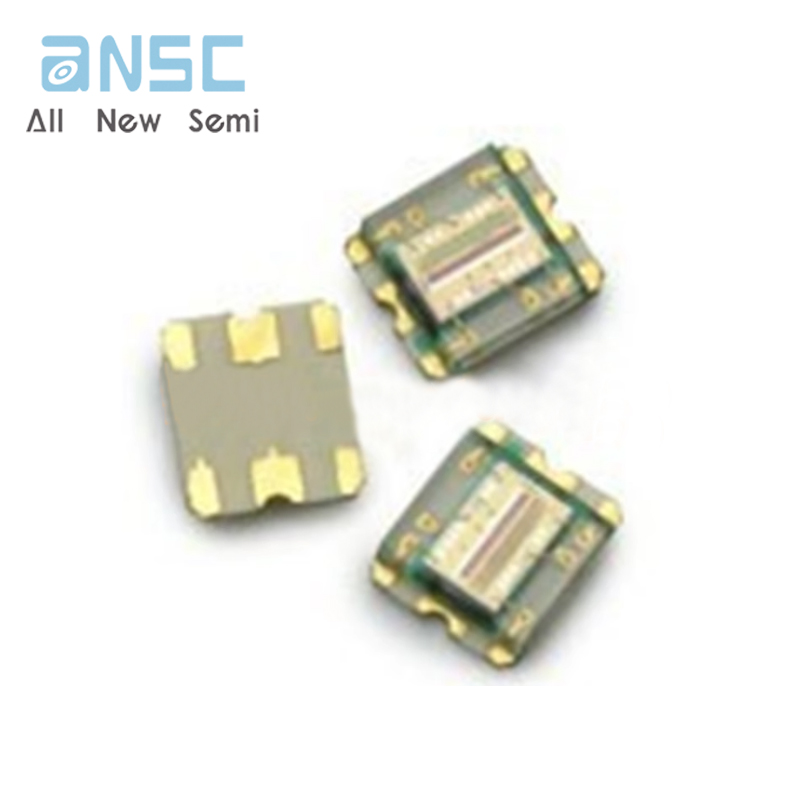

The APDS-9300 is a low-voltage Digital Ambient Light Photo Sensor that converts light intensity to digital signal output capable of direct I2C

interface. Each device consists of one broadband photodiode (visible plus infrared) and one infrared photodiode. Two integrating ADCs convert

thephotodiode currentsto adigital outputthatrepresents the irradiance measured on each channel. This digital output can be input to a

microprocessor where illuminance (ambient light level) in lux is derived using an empirical formula to approximate the human-eye response.

Product Features

? Approximate the human-eye response

? Precise Illuminance measurement under diverse lighting conditions

? Programmable Interrupt Function with User-Defined Upper and Lower Threshold Settings

? 16-Bit Digital Output with I2C Fast-Mode at 400 kHz

? Programmable Analog Gain and Integration Time

? Miniature ChipLED Package

Height - 0.55mm

Length - 2.60mm

Width - 2.20mm

? 50/60-Hz Lighting Ripple Rejection

? Low 2.5-V Input Voltage and 1.8-V Digital Output

? Low Active Power (0.6 mW Typical) with Power Down Mode

? RoHS Compliant

Product Applications

? Detection of ambient light to control display backlighting

o Mobile devices – Cell phones, PDAs, PMP

o Computing devices – Notebooks, Tablet PC, Key board

o Consumer devices – LCD Monitor, Flat-panel TVs, Video Cameras, Digital Still Camera

? Automatic Residential and Commercial Lighting Management

? Automotive instrumentation clusters.

? Electronic Signs and Signals
