Product Specifications
| 型號 Type | KP500B-P |
| 封裝 Encapsulation | TO-5 |
| 靈敏元面積 Element Size/Type | 2.0mm ×1.1mm ×Gap 0.9mm Dual,雙元 |
| 基片材料 Window Material | 硅 Si |
| 基片厚度 Window Thickness | 0.5mm |
| 窗口尺寸 Window Size | 4×3mm |
| 工作波長 Pass Band | 5-14μm (www.tzoic.cn) |
| 平均透過率 Transmittance | ＞75% |
| 輸出信號 Signal [Vp-p] | >2.2V |
| (420 ° K blackbody 1Hz modulation frequency 0.3-3.0Hz bandwidth 72.5dB gain) | |
| 靈敏度 Sensitivity | 3300V/W |
| 探測率(D*)Detectivity | 1.5×108 cmHz1/2/W |
| 噪聲 Noise(Vp-p) | ＜200mV |
| (mVp-p) (25℃) | |
| 平衡度 Balance | ＜20% |
| 工作電壓 Operating Voltage | 2.2-15V |
| 工作電流 Operating Current | 8.5-24μA |
| (VD=10V,Rs=47kΩ,25℃) | |
| 源極電壓 Source Voltage | 0.3-1.1V |
| (VD=10V,Rs=47kΩ,25℃) | |
| 工作溫度 Operating Temperature | -30℃- +70℃ |
| 保存溫度 Storage Temperature | -40℃- +80℃ |
| 視場 Field of View | Center angle 138 ° x 125 ° |

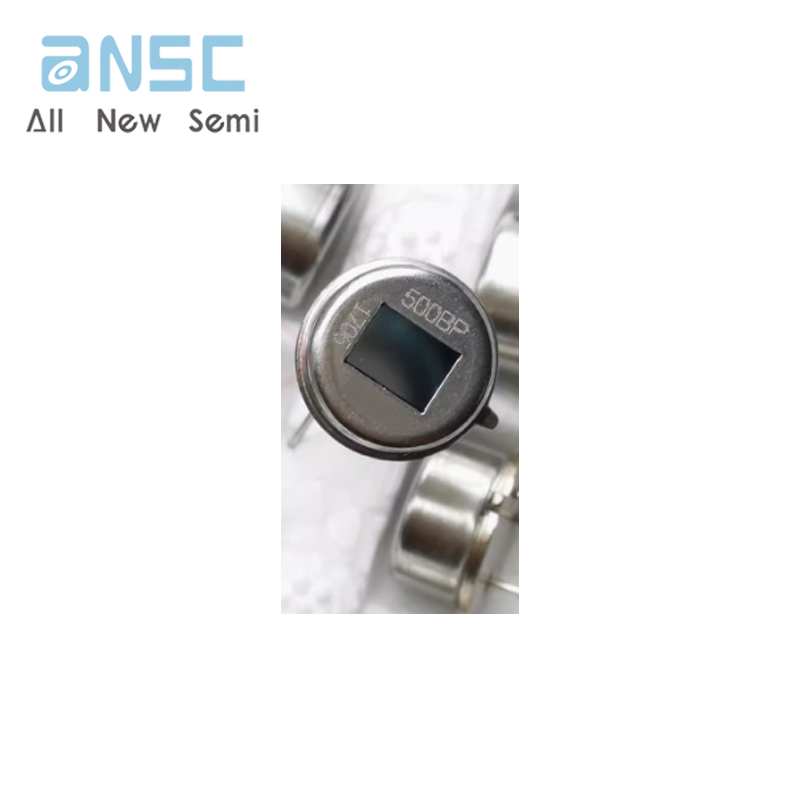

Product Images
Payment&Transportation
Official Certificate&Certificate
Multiple product supply
Company office environment
Warehouse Real Shot
Standard packaging
