Hot selling VN5012AKTR-E Single channel high side driver with analog current sense for automotive applications

VN5012AKTR-E

Model:VN5012AKTR-E

Manufacturer:ST

Package:PowerSSO-24

詳情

Product Descriptions


The VN5012AK-E is a monolithic device made using STMicroelectronics VIPower? M0-5 technology. It is intended for driving resistive or inductive loads with one side connected to ground. Active VCC pin voltage clamp protects the device against low energy spikes (see ISO7637 transient compatibility table). This device integrates an analog current sense which delivers a current proportional to the load current (according to a known ratio) when CS_DIS is driven low or left open. When CS_DIS is driven high, the CURRENT SENSE pin is in a high impedance condition. Output current limitation protects the device in overload condition. In case of long overload duration, the device limits the dissipated power to safe level up to thermal shutdown intervention. Thermal shutdown with automatic restart allows the device to recover normal operation as soon as fault condition disappears.


Product Features


■ General features

– Inrush current active management by power limitation

– Very low stand-by current

– 3.0 V CMOS compatible input

– Optimized electromagnetic emission

– Very low electromagnetic susceptibility

– In compliance with the 2002/95/EC european directive

■ Diagnostic functions

– Proportional load current sense

– High current sense precision for wide range currents

– Current sense disable

– Thermal shutdown indication

– Very low current sense leakage

■ Protections

– Undervoltage shutdown

– Overvoltage clamp

– Load current limitation

– Self limiting of fast thermal transients

– Protection against loss of ground and loss of VCC

– Thermal shutdown


Product Applications


■ All types of resistive, inductive and capacitive loads


Specifications


AttributeAttribute value
ANSM-Part#ANSM-VN5012AKTR-E
CategoryIntegrated Circuits (ICs)
Power Management (PMIC)
Power Distribution Switches, Load Drivers
MfrSTMicroelectronics
SeriesVIPower?
PackageTape & Reel (TR)
Cut Tape (CT)
Digi-Reel?
Product StatusActive
Switch TypeGeneral Purpose
Number of Outputs1
Ratio - Input:Output0.042361111
Output ConfigurationHigh Side
Output TypeN-Channel
InterfaceOn/Off
Voltage - Load4.5V ~ 36V
Voltage - Supply (Vcc/Vdd)Not Required
Current - Output (Max)45A
Rds On (Typ)12mOhm (Max)
Input TypeNon-Inverting
FeaturesAuto Restart
Fault ProtectionCurrent Limiting (Fixed), Over Temperature, Over Voltage
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerSSO-24
Package / Case24-PowerBSOP (0.295", 7.50mm Width)
Base Product NumberVN5012

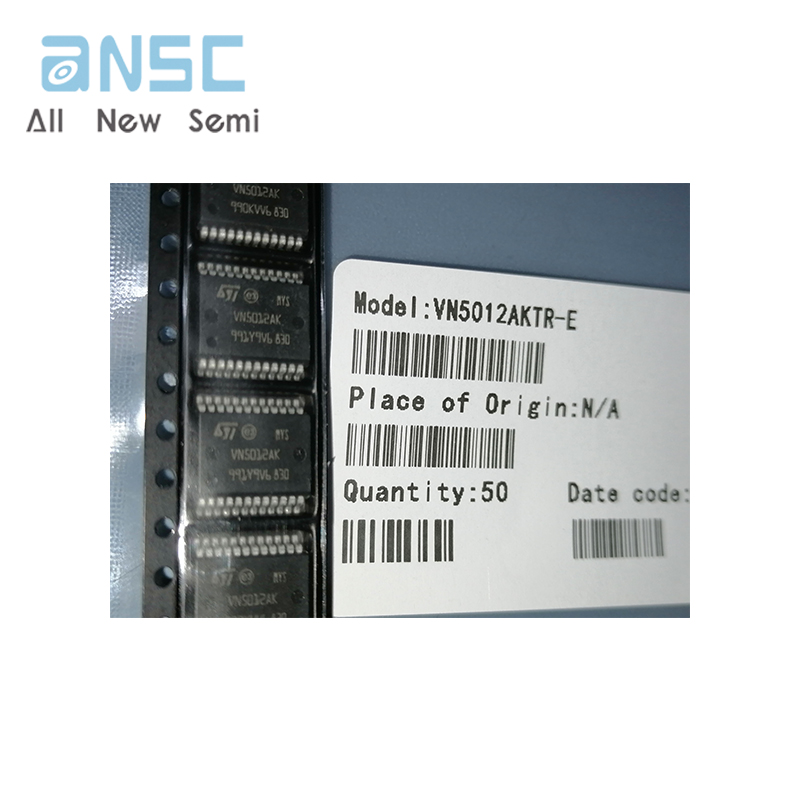

Actual product photos


VN5012AKTR-E

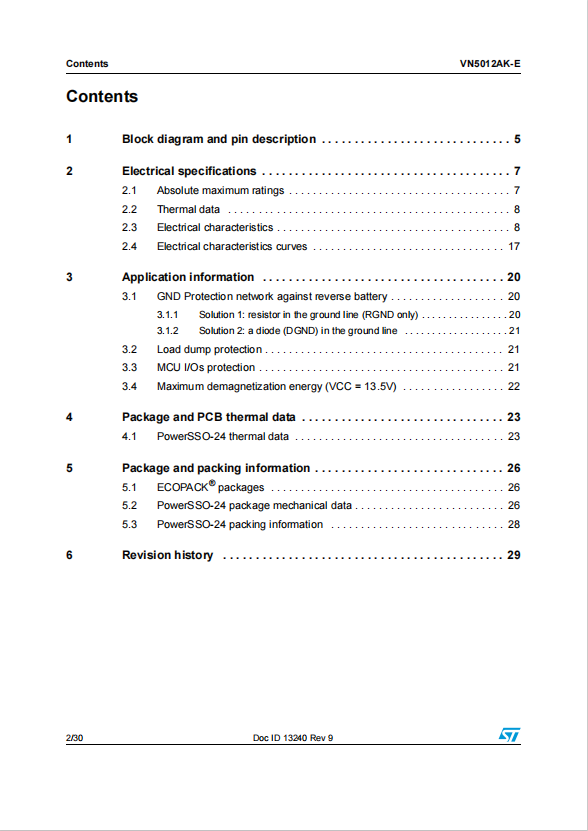

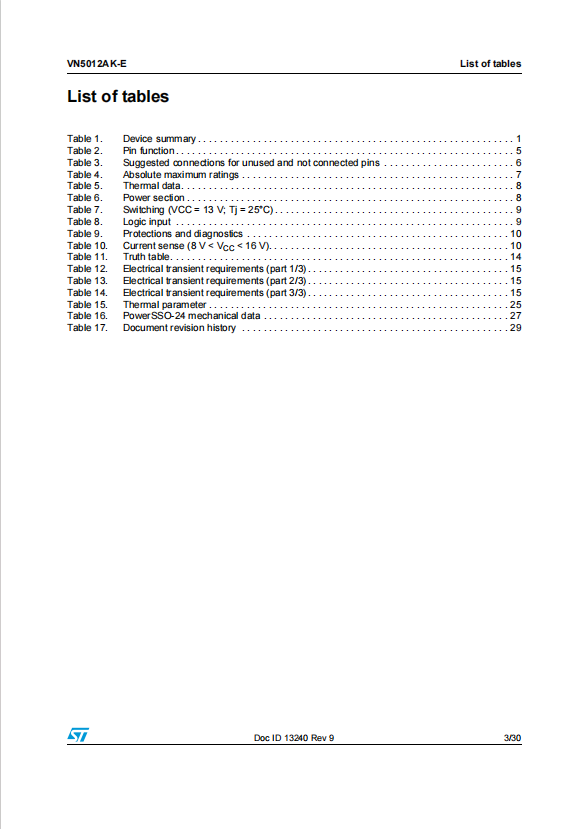

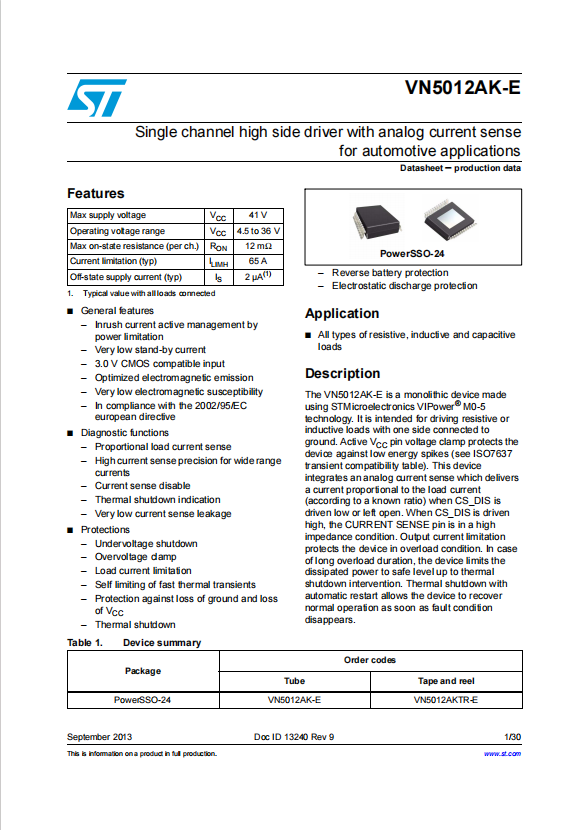

Product Data Book:



For more product information, please download the PDF
