Product Benefits and Features

. OUTPUT CURRENT TO 1 A

. OPERATES AT LOW VOLTAGES

. SINGLE OR SPLIT SUPPLY

. LARGE COMMON-MODE AND DIFFERENTIAL MODE RANGE

. LOW INPUT OFFSET VOLTAGE

. GROUND COMPATIBLE INPUTS

. LOW SATURATION VOLTAGE

. THERMAL SHUTDOWN

. CLAMP DIODE

The L2726 is a monolithic integrated circuit in SO-20 package intended for use as power operational amplifiers in a wide range of applications

including servo amplifiers and power supplies.

It is particularly indicated for driving inductive loads, as motor and finds applications in compact-disc VCR automative, etc.

The high gain and high output power capability provide superior performance whatever an operational amplifier/power booster combination

is required.

Attribute	Attribute value
ANSM-Part#	ANSM-L2726
Category	Integrated Circuits (ICs)
	Linear
	Amplifiers
	Instrumentation, OP Amps, Buffer Amps
Mfr	STMicroelectronics
Series	-
Package	Tube
Product Status	Obsolete
Amplifier Type	General Purpose
Number of Circuits	2
Output Type	-
Slew Rate	2V/μs
Gain Bandwidth Product	1.2 MHz
Current - Input Bias	200 nA
Voltage - Input Offset	10 mV
Current - Supply	10mA
Current - Output / Channel	1.5 A
Voltage - Supply Span (Min)	4 V
Voltage - Supply Span (Max)	28 V
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	20-SOIC (0.295", 7.50mm Width)
Supplier Device Package	20-SO
Base Product Number	L2726

L2726

Product Data Book：

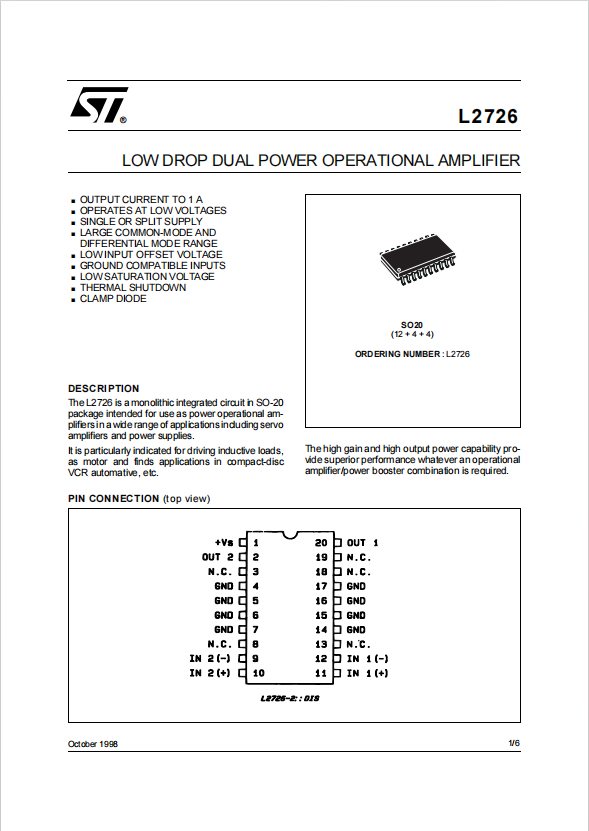

搜狗高速瀏覽器截圖20240106110540

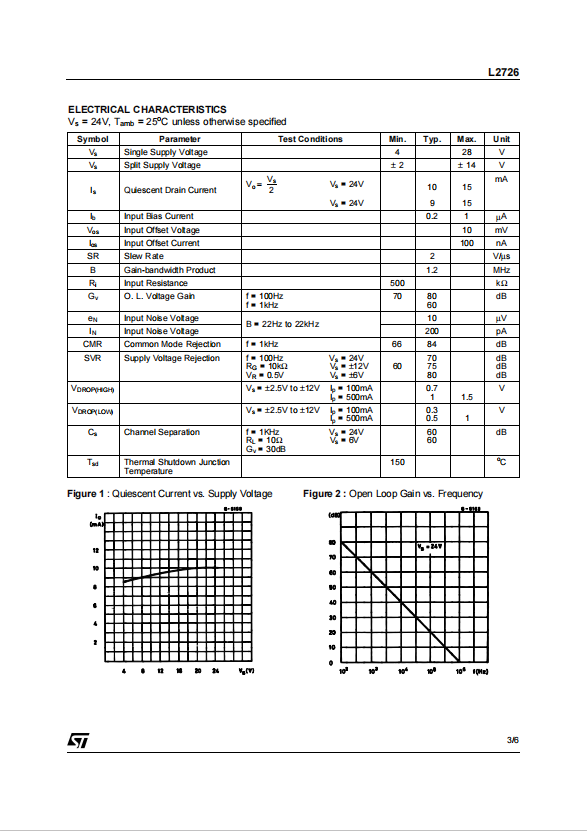

搜狗高速瀏覽器截圖20240106110546

搜狗高速瀏覽器截圖20240106110551

For more product information, please download the PDF
