Product Descriptions

The AD5625R/AD5645R/AD5665R and AD5625/AD5665 members of the nanoDAC? family are low power, quad, 12-/ 14-/16-bit, buffered voltage-out DACs with/without an on-chip reference. All devices operate from a single 2.7 V to 5.5 V supply, are guaranteed monotonic by design, and have an I2C-compatible serial interface.

The AD5625R/AD5645R/AD5665R have an on-chip reference.

The LFCSP versions of the AD5625R/AD5645R/AD5665R have a 1.25 V or 2.5 V, 10 ppm/°C reference, giving a full-scale output range of 2.5 V or 5 V; the TSSOP versions of the AD5625R/ AD5645R/AD5665R have a 2.5 V, 5 ppm/°C reference, giving a full-scale output range of 5 V. The WLCSP has a 1.25 V reference.

The on-chip reference is off at power-up, allowing the use of an external reference. The internal reference is enabled via a software write. The AD5625/AD5665 require an external reference voltage to set the output range of the DAC.

The device incorporates a power-on reset circuit that ensures that the DAC output powers up to 0 V (POR = GND) or midscale (POR = VDD) and remains there until a valid write occurs. The on-chip precision output amplifier enables rail-to-rail output swing.

Product Features

? Low power, smallest pin-compatible, quad nanoDACs

? AD5625R/AD5645R/AD5665R

- 12-/14-/16-bit nanoDACs

- On-chip, 2.5 V, 5 ppm/°C reference in TSSOP

- On-chip, 2.5 V, 10 ppm/°C reference in LFCSP

- On-chip, 1.25 V, 10 ppm/°C reference in LFCSP

? AD5625/AD5665

- 12-/16-bit nanoDACs

- External reference only

? 3 mm × 3 mm, 10-lead LFCSP; 14-lead TSSOP; and 1.665 mm × 2.245 mm, 12-ball WLCSP

? 2.7 V to 5.5 V power supply

? Guaranteed monotonic by design

? Power-on reset to zero scale/midscale

? Per channel power-down

? Hardware LDAC and CLR functions

? I2C-compatible serial interface supports standard (100 kHz), fast (400 kHz), and high speed (3.4 MHz) modes

Product Applications

? Process control

? Data acquisition systems

? Portable battery-powered instruments

? Digital gain and offset adjustment

? Programmable voltage and current sources

? Programmable attenuators

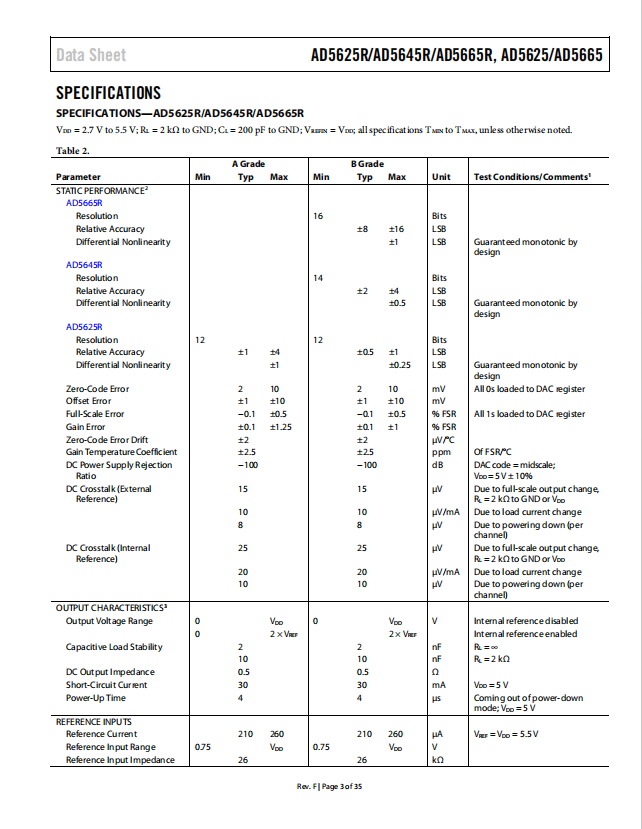

Specifications

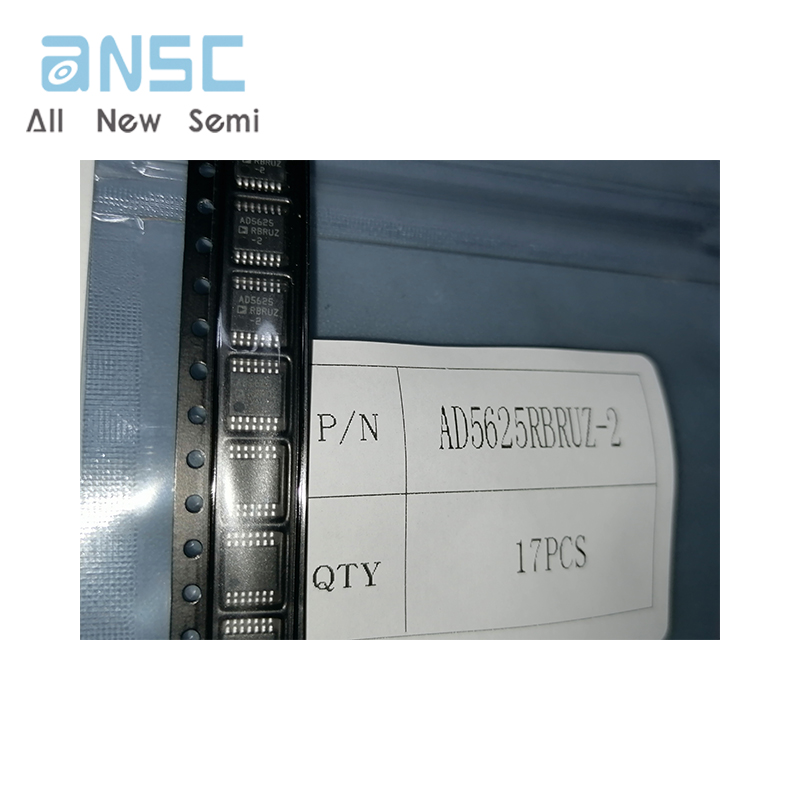

Actual product photos

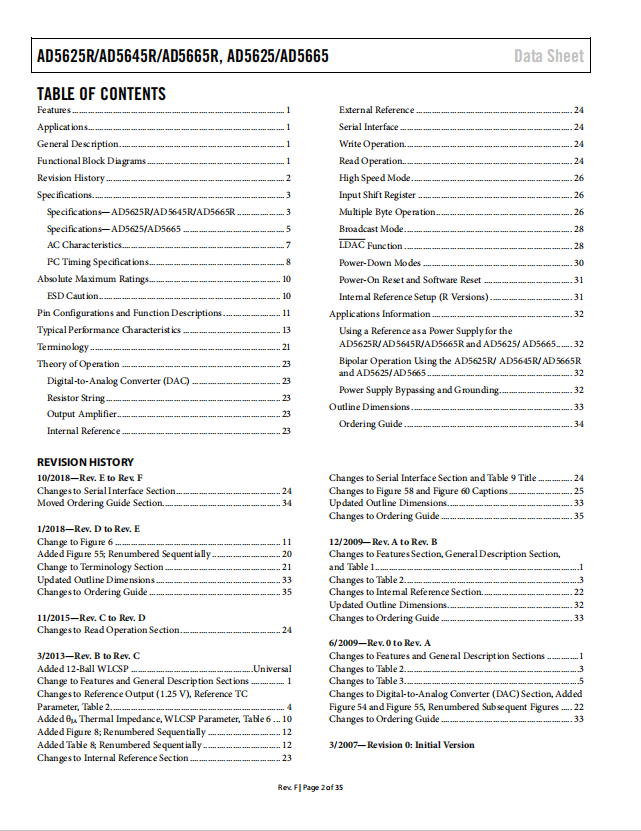

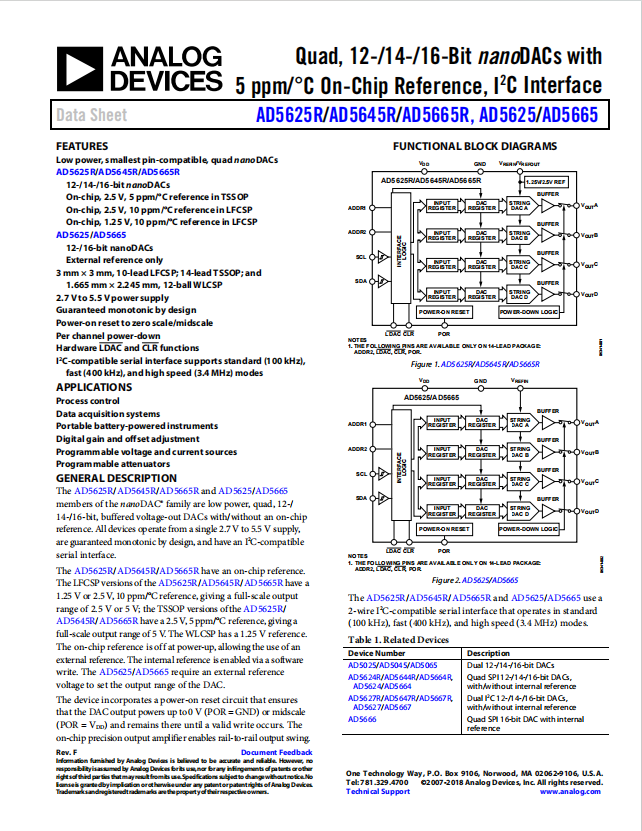

Product Data Book：

For more product information, please download the PDF
