Product Descriptions
The FPF2123，F(xiàn)PF2124，and FPF2125 are a series of loadswitches which provide full protection to systems and loadswhich may encounter large current conditions. These devicescontain a 0.125Q current-limited P-channel MOSFET which canoperate over an input voltage range of 1.8-5.5V. The currentlimit is settable using an external resistor. Internally, current isprevented from flowing when the MOSFET is off and the outputvoltage is higher than the input voltage. Switch control is by alogic input (ON) capable of interfacing directly with low voltagecontrol signals. Each part contains thermal shutdown protectionwhich shuts off the switch to prevent damage to the part when acontinuous over-current condition causes excessive heating
When the switch current reaches the current limit, the partsoperate in a constant-current mode to prohibit excessivecurrents from causing damage. For the FPF2123 and FPF2124if the constant current condition still persists after 10ms, theseparts will shut off the switch. The FPF2123 has an auto-restartfeature which will turn the switch on again after 160ms if the ONoin is still active. The FPF2124 does not have this auto-restartfeature so the switch will remain off after a current limit fault untilthe ON pin is cycled. The FPF2125 will not turn off after acurrent limit fault, but will rather remain in the constant currentmode indefinitely. The minimum current limit is 150mA.
These parts are available in a space-saving 5 pin SOT23package
Product Features
? 1.8 to 5.5V Input Voltage Range
? Controlled Turn-On
? 0.15-1 .5A Adjustable Current Limit
? Undervoltage Lockout
? Thermal Shutdown
? <2uA Shutdown Current
? Auto Restart
? Fast Current limit Response Time
3us to Moderate Over Currents
? Fault Blanking
? Reverse Current Blocking
? RoHS Compliant
Product Applications
? PDAs
? Cell Phones
? GPS Devices
? MP3 Players
? Digital Cameras
? Peripheral Ports
? Hot Swap Supplies
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-FPF2124 |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Power Distribution Switches, Load Drivers | |
| Mfr | - |
| Series | IntelliMAX? |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel? | |
| Product Status | Obsolete |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 0.042361111 |
| Output Configuration | High Side |
| Output Type | P-Channel |
| Interface | On/Off |
| Voltage - Load | 1.8V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 1.5A |
| Rds On (Typ) | 125mOhm |
| Input Type | Non-Inverting |
| Features | - |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, Reverse Current, UVLO |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-5 |
| Package / Case | SC-74A, SOT-753 |
| Base Product Number | FPF2124 |

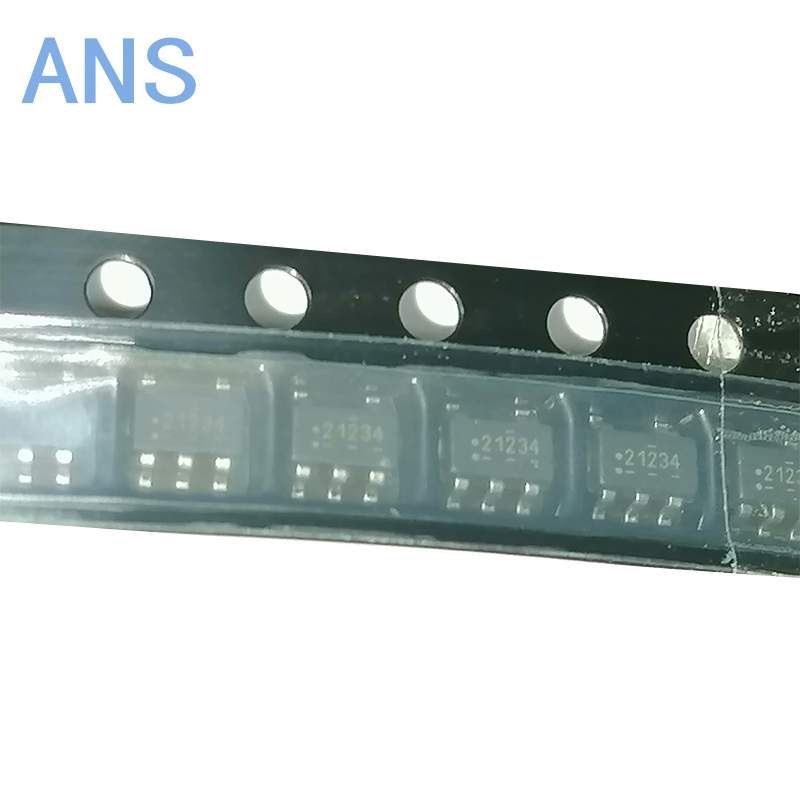

Actual product photos
Product Data Book：
For more product information, please download the PDF
Payment&Transportation
Official Certificate&Certificate
Multiple product supply
Company office environment
Warehouse Real Shot
Standard packaging
