Product Details

The CS9236 is a complete General MlDl wavetable mu-sic synthesizer on a single integrated circuit. The MIDIinterpreter, synthesis engine, effects processing, and allRAM and ROM memories (including the wavetable sam-ple ROM) are included on-chip. This all-digital devicereceives a standard serial MlDI data stream, and outputsa stereo 16-bit digital audio stream at 44.1kHz. TheCS9236 digital audio output is directly compatible withthe Crystal CS4236B/37B/38B multimedia CODECsand with the CS4333 DAC.

The CS9236 features a high quality General MIDI sam-ple set including 128 melodic instruments and 47percussion sounds. The synthesis engine is capable ofgenerating up to 32 simultaneous notes. Digital rever-beration and chorusing effects are included on-chip.

The CS9236 is the ideal low-cost General MIDI synthe-sizer solution for a number of applications, includingmultimedia PCs, game machines, karaoke, and low-costmusical instruments and MIDI sound modules.

Products Features

?Single low-cost device includes MIDIcontroller, synthesis engine, effectsprocessing, RAM, and sample ROM?General MIDI(GM) compliant

?32-note polyphony at 44.1kHz rate

?Independent reverb and chorus levelsfor each MIDI channel

?+3.3V supply, +5V tolerant inputs

?Fully static power-down capability

?Simple to design in - Serial MIDI in,Stereo digital audio out

?Digital audio output directly lnterfaceswith the CS4236B/37B/38B andCS4333

Specifications

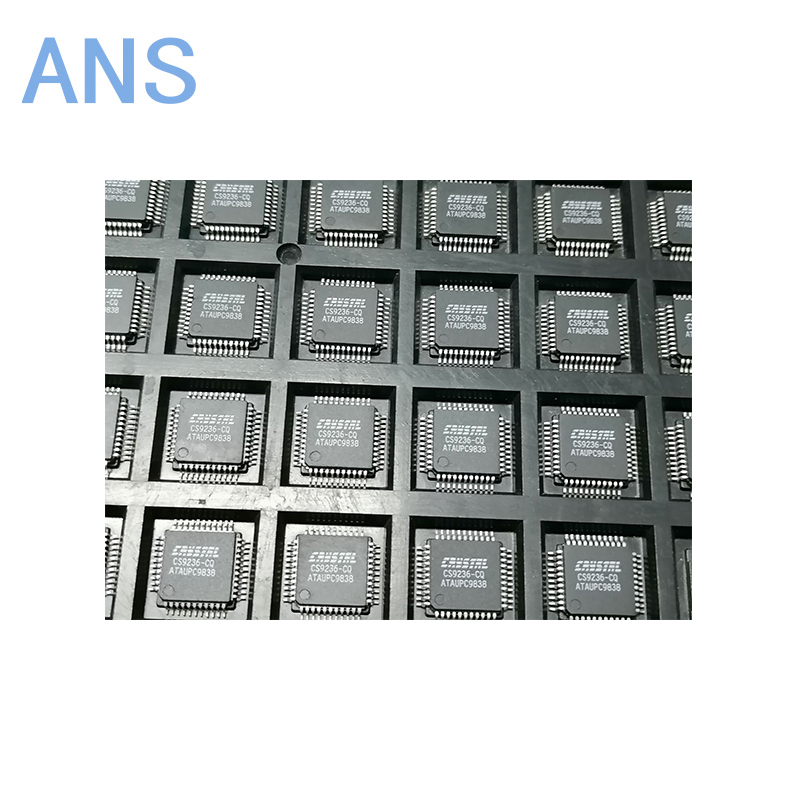

Actual product photos

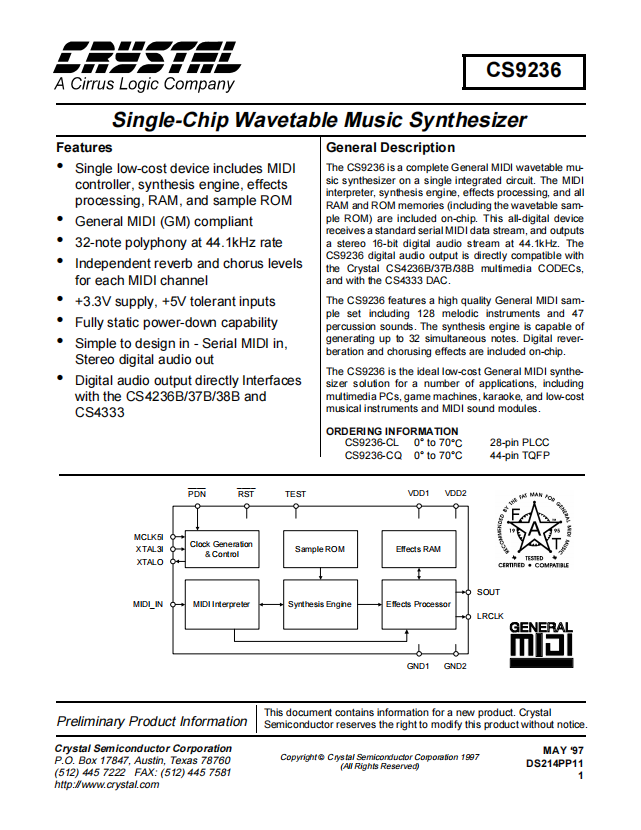

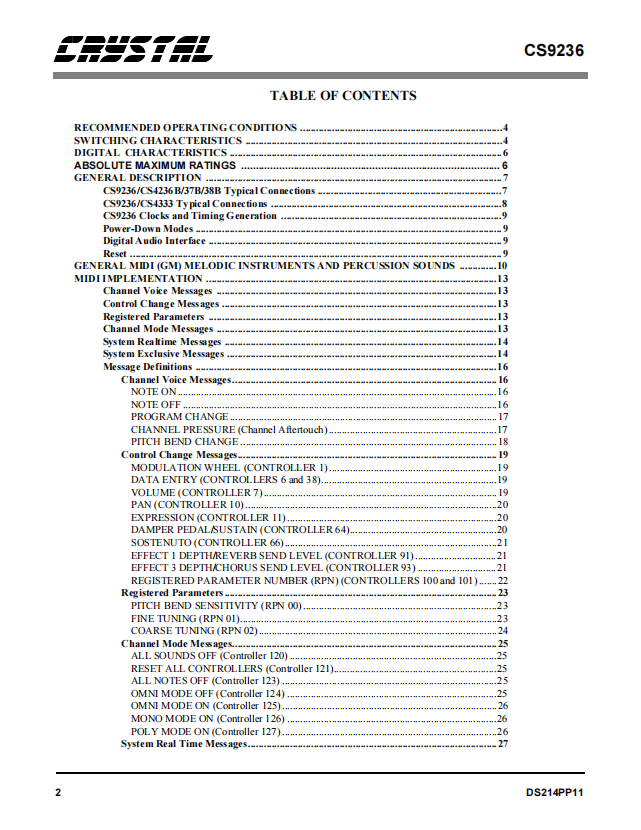

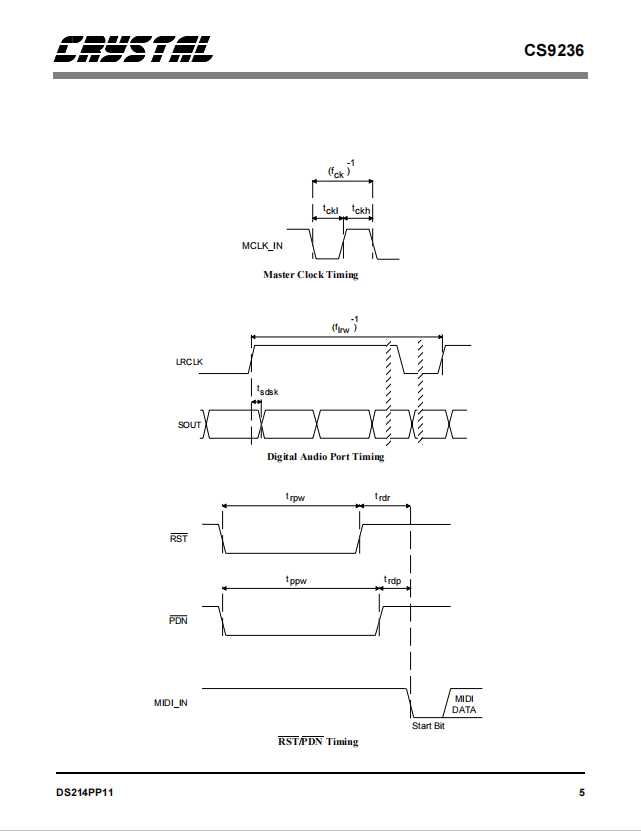

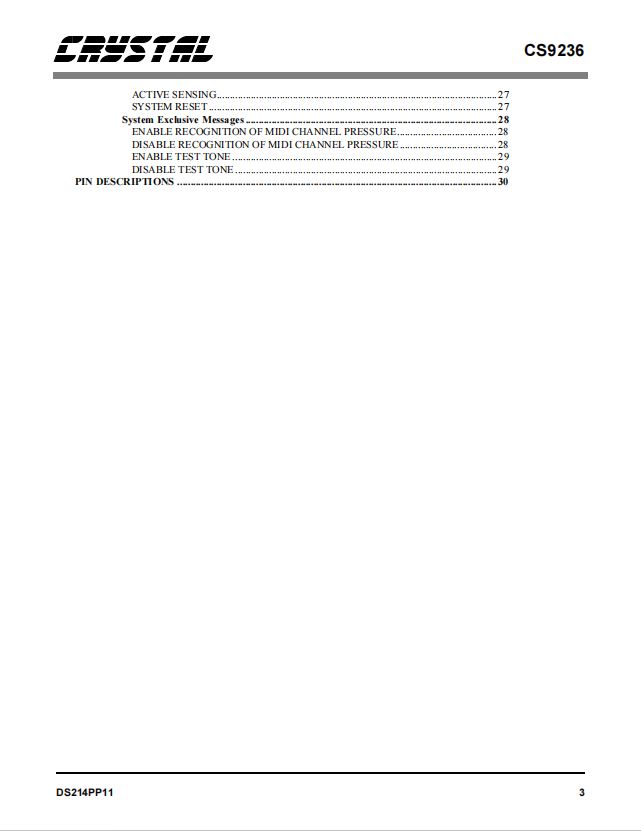

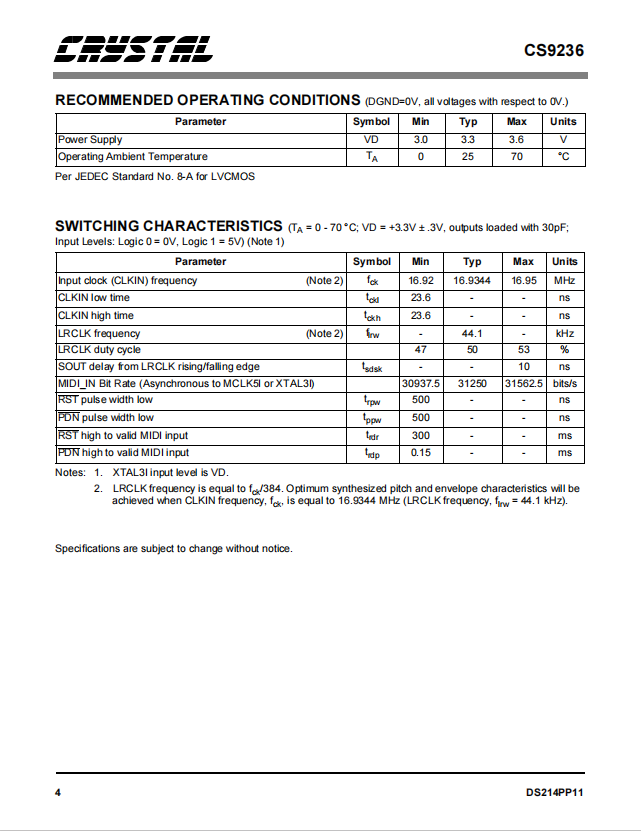

Product Data Book：

For more product information, please download the PDF

Payment&Transportation

Official Certificate&Certificate

Multiple product supply

Company office environment

Warehouse Real Shot

Standard packaging

We also provide ：
