Product Descriptions

The INA118 is a low-power, general-purpose instrumentation amplifier offering excellent accuracy. The versatile, three op amp design and small size make this device an excellent choice for a wide range of applications. Current-feedback input circuitry provides wide bandwidth, even at high gain (70 kHz at G = 100).

A single external resistor sets any gain from 1 to 10000. Internal input protection can withstand up to ±40 V without damage.

The INA118 is laser-trimmed for low offset voltage (50 μV), drift (0.5 μV/°C), and high common-mode rejection (110 dB at G = 1000). The INA118 operates with power supplies as low as ±2.25 V, and quiescent current is only 350 μA, making this device an excellent choice for battery-operated systems.

The INA118 is available in 8-pin plastic DIP and SO-8 surface-mount packages, and specified for the –40°C to +85°C temperature range.

The upgraded INA818 offers a lower input stage offset voltage (35 μV, maximum), lower input bias current (0.5 nA maximum) and lower noise (8 nV/√Hz) at the same quiescent current. See the Device Comparison Table for a selection of precision instrumentation amplifiers from Texas Instruments.

Product Features

? A newer version of this device is now available:

INA818

? Low offset voltage: 50 μV, maximum

? Low drift: 0.5 μV/°C, maximum

? Low input bias current: 5 nA, maximum

? High CMR: 110 dB, minimum

? Inputs protected to ±40 V

? Wide supply range: ±2.25 to ±18 V

? Low quiescent current: 350 μA

? Packages: 8-Pin plastic DIP, SO-8

Product Applications

? Pressure transmitter

? Temperature transmitter

? Weigh scale

? Electrocardiogram (ECG)

? Analog input module

? Data acquisition (DAQ)

Specifications

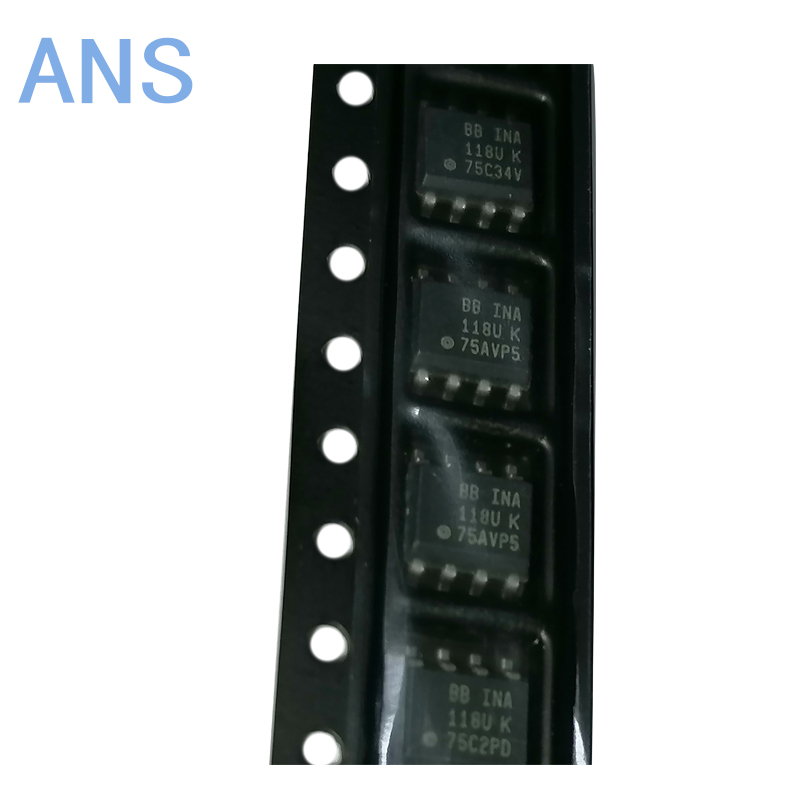

Actual product photos
