Product Description
| GP2Y0A02YK0F is a range sensor unit composed of PSD (Position Sensitive Detector), IRED (Infrared Emission Diode) and signal processing circuit. Due to the triangulation method, changes in object reflectivity, ambient temperature, and operating time are less likely to affect distance detection. The device outputs a voltage corresponding to the probe distance. So this sensor can also be used as a proximity sensor function1 . Distance measurement range: 20 to 150cm 2. Analog output type 3. Package size: 295×13×2.16 million square meters4 . Current Consumption: 33mA Typical 5. Supply Voltage: 4.5 to 5.5V Application 1. Non-contact switch (sanitary equipment, lighting control, etc.) 2. Robot cleaner 3. Energy-saving sensors (ATMs, copiers, vending machines) 4. Entertainment equipment (robots, arcades) |

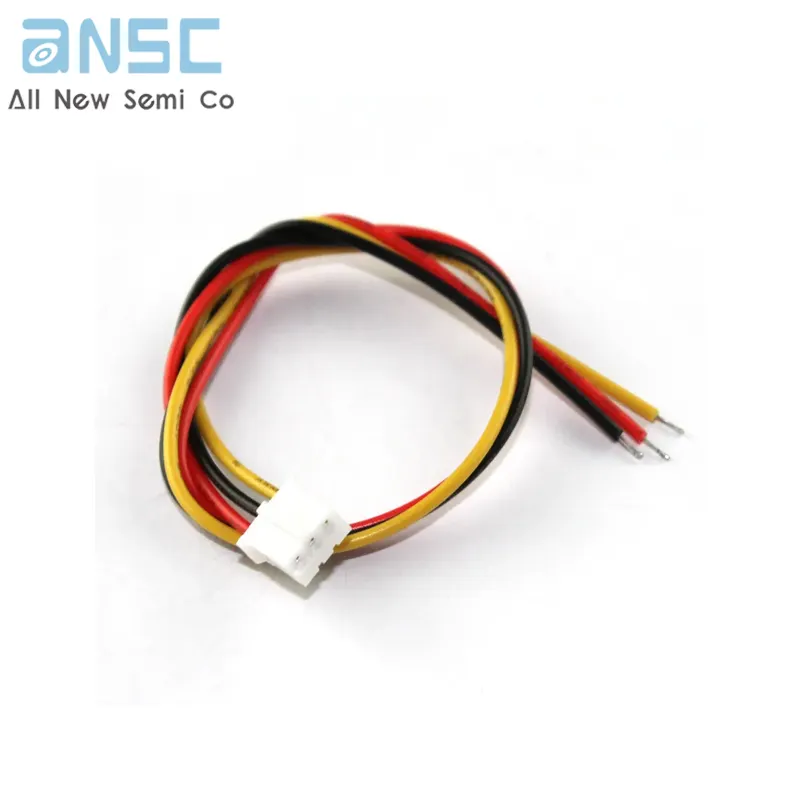

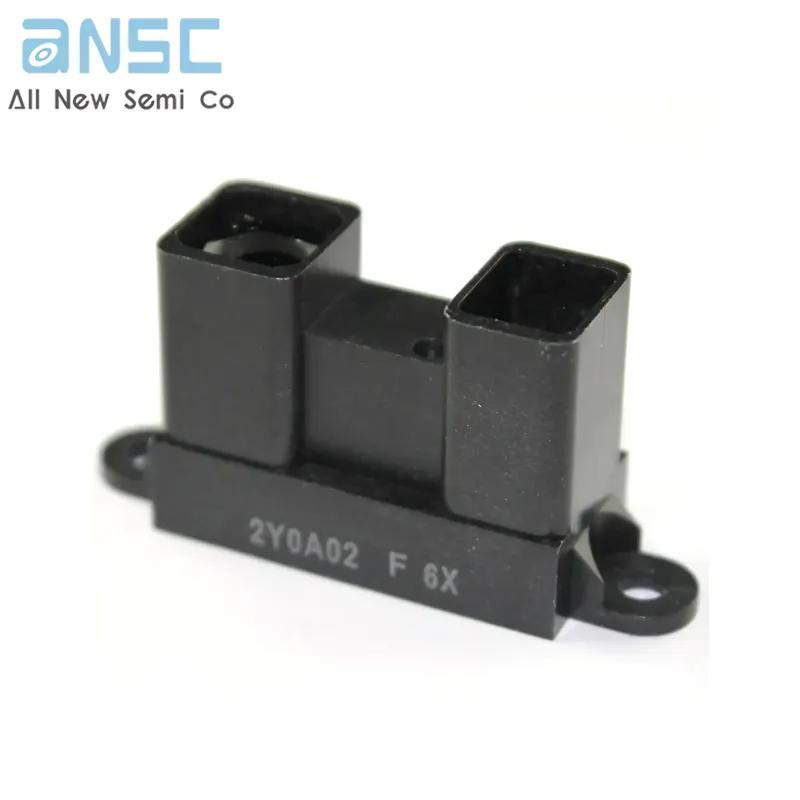

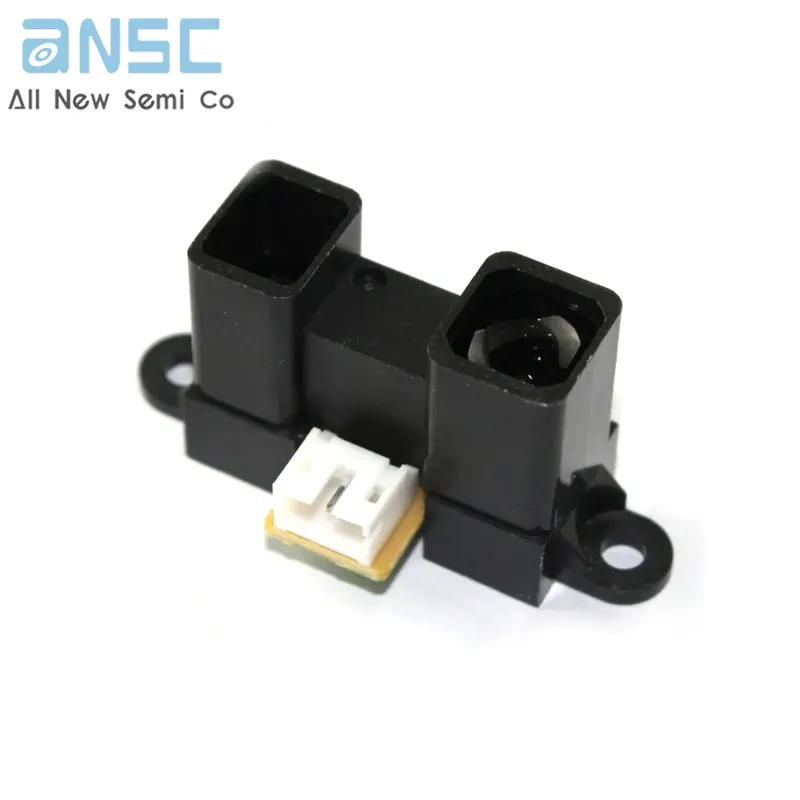

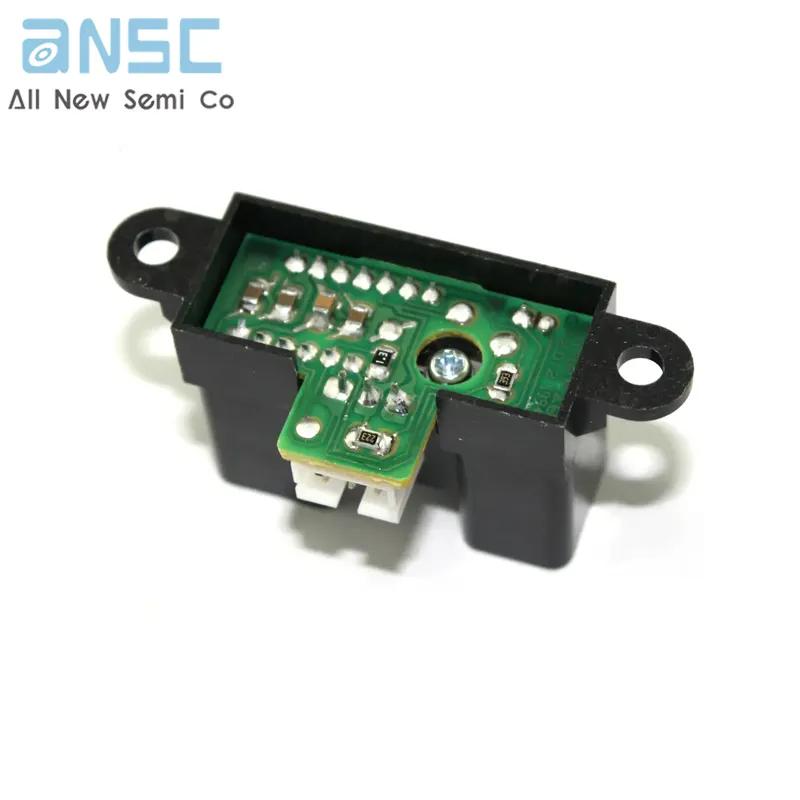

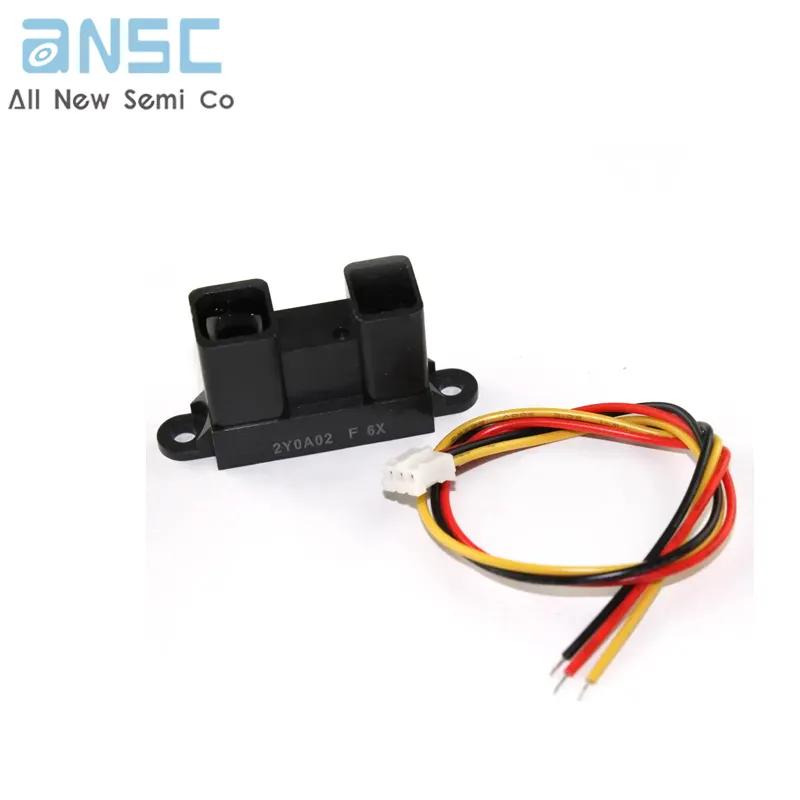

Actual image of the product
Certifications
Package and Delivery:
