Product Description
Type | Description |
|---|---|
PART# | PFB1224UHE |
Category | Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
Mfr | / |
Series | PFB |
Packaging | Bulk |
Part Status | Active |
Voltage - Rated | 24VDC |
Size / Dimension | Square - 120mm L x 120mm H |
Width | 38.00mm |
Air Flow | 252.9 CFM (7.08m3/min) |
Static Pressure | 1.412 in H2O (351.7 Pa) |
Bearing Type | Ball |
Fan Type | Tubeaxial |
Features | Locked Rotor Protection |
Noise | 66.5dB(A) |
Power (Watts) | 48 W |
RPM | 5500 RPM |
Termination | 2 Wire Leads |
Ingress Protection | - |
Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
Approval Agency | CE, CSA, UL, VDE |
Weight | 0.838 lb (380.11 g) |
Current Rating (Amps) | 2.00A |
Voltage Range | 14 ~ 26.5VDC |
Material - Frame | Plastic |
Material - Blade | Plastic |
Lifetime @ Temp. | 70000 Hrs @ 40°C |
Base Product Number | PFB1224 |

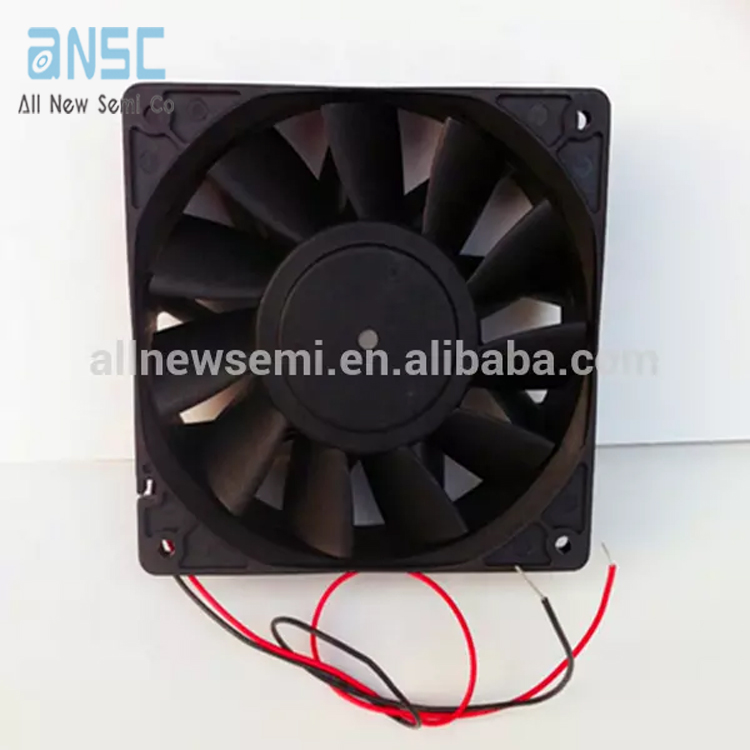

Actual image of the product
