Product Description
Cheap FP-108EX-S1-B 15CM 15050 Axial AC 220V Cooling Fan
FP-108EX-S1-B
Illustrate:
FP-108EX-S1-B 15CM 15050 Axial AC 220V Cooling Fan
(Hz) Working Frequency: 50/60:38 w
Turning Speed: 2700/3100 (R/min) Air Volume: 5.37/6.88 (M3/min)
(DB Noise Sound: 57/62 - A) Weight: 950 (g).
Available in individual boxes, bags: 24 sets of plain cardboard packs/1 FCL;
Frame: Black painted aluminum alloy die-casting anti-corrosion and moisture-proof structure;
Blades: Injection molded, PBT + 30% glass wire + VO grade flame retardant;
The shaft bearing has imported ball bearings with high precision, long life and low noise;
Unique edges: Enameled wire is insulated by Class B, heat resistant, 120 degrees Celsius;
Insulation resistance: more than 500 trillion high;
Withstand voltage, leakage current 0.5 mA. Resistance voltage 1500 V / 1 minute;
Operating Voltage: 110 V (Voltage Range: 85 V ~ 125 V)
Operating Voltage: 220 V (Voltage Range: 185 V ~ 245 V)Operating
Ambient Temperature (°C): - 20 °C ~ 75 °C B :( Ball bearing)
Life: Working ambient temperature 40 °C B :( Ball bearing) 60000 (h)
has a long service life and can work continuously for a long time for 24 hours
| Type# | Description |
| PART# | 108EX-S1-B |
| voltage | 220 ~ 240V AC |
| Material | plastics |
| Installation | other |
| class | DC cooling fan |
| Warranty period | 1 year |
| energy | Battery |
| Wind blade material | Injection molding |
| Bearing type | Ball |
| After-sales service system | Free spare parts |
| Origin | Guangdong, China |
| brand | ANSC |
| type | 108EX-S1-B |
| size | 150x150x50mm |
| Voltage Rating (VDC) | 220 ~ 240V AC |
| Power Current (Amps) | 0.22A |
| Power Consumption (Watts) | 38 watts |
| Rotational speed (RPM) | 2300/2700(R/min0 |
| Air flow | 5.37/6.88(M3/min) |
| streptococcus | 55/60(dB-A) |

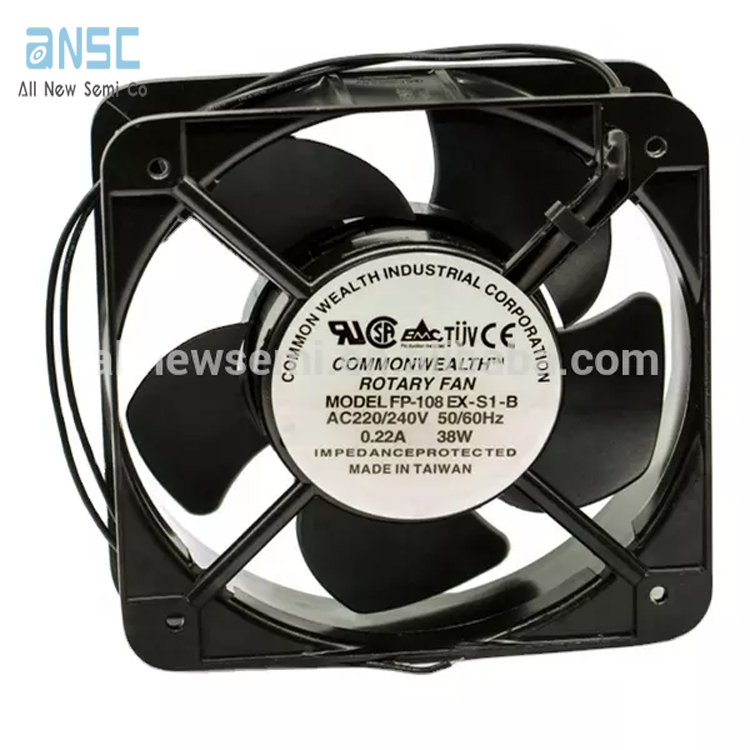

Actual image of the product
