Ai-WB2-13 is a Wi Fi&BT module equipped with BL602 chip as the core processor, supporting Wi Fi 802.11b/g/n protocol and BLE5.0 protocol. The BL602 chip is equipped with a low-power 32-bit RISCPU, 276KBRAM, and a variety of peripheral interfaces including SDIO, SPI, UART, I2C, IRremote, PWM, ADC, DAC, PIR, and GPIO.
Product Specifications
| 模組型號 Module model | Ai-WB2-13 |
| 模組封裝 Module packaging | SMD18 |

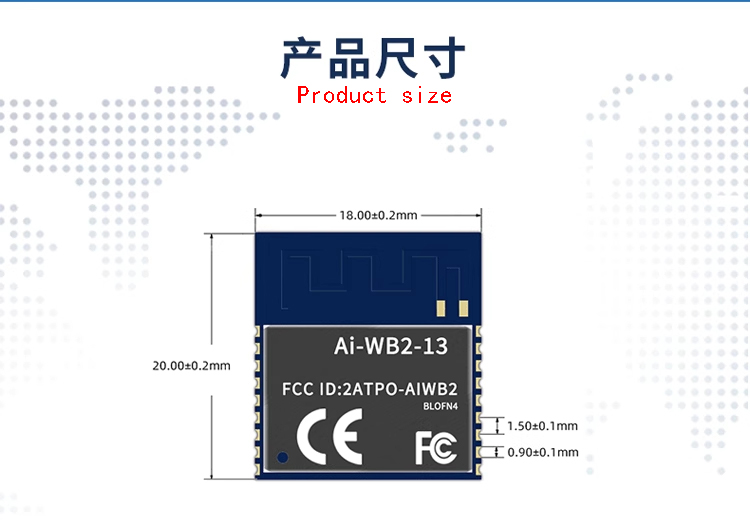

| 尺寸 Size(mm) | 20.0*18.0*3.1(±0.2)MM |
| 天線形式 Antenna form | 板載PCB天線 Onboard PCB antenna |
| 頻譜范圍 Spectrum range | 2400-2483.5MHz |
| 工作環境 Work environment | -40℃~85 ℃ |
| 存儲環境 Storage environment | -40℃~125°C,<90%RH |
| 供電范圍 Power supply range | 供電電壓2.7V~3.6V，供電電流≥500mA Supply voltage 2.7V~3.6V,supply current≥500mA |
| 支持接口 Support interfaces | UART/GPIO/ADC/PWM/I2C/SPI |
| IO口數量 Number of IO ports | 11個 Default 11 |
| 串口速率 Series Rate | 默認115200bps Default 115200bps |
| 安全性 Safety | WPS/WEP/WPA/WPA2 Personal/WAP2 Enterprise/WPA3 |
| Flash | 默認4MByte，最大支持16MByte Default 4MByte, maximum support 16MByte |

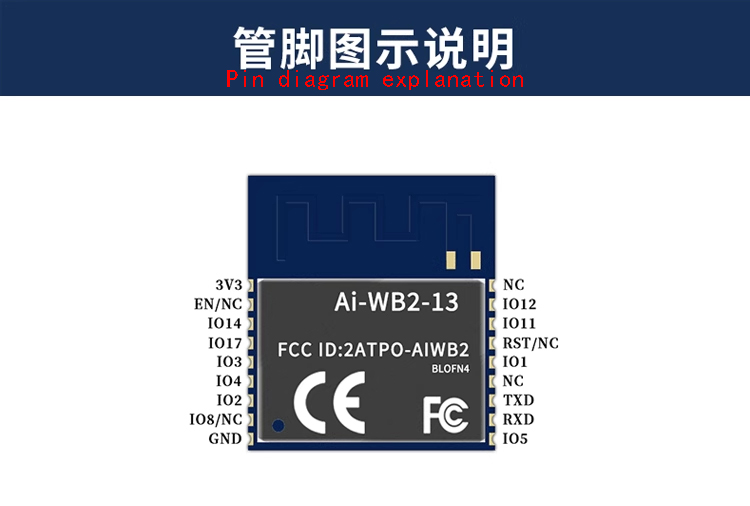

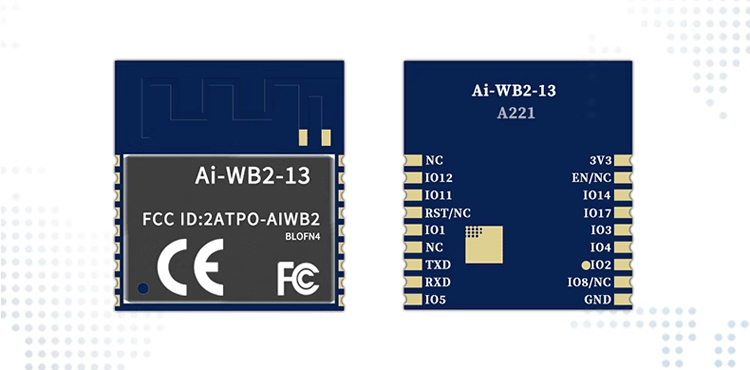

Ai-WB2-13 has a total of 18 pins connected, as shown in the pin diagram. The pin function definition table is the interface definition.
| 腳序 Foot sequence | 名稱 Name | 功能說明 Function Description |
| 1 | 3V3 | 3.3V供電;外部供電電源輸出電流建議在500mA 以上 3.3V power supply; It is recommended that the output current of the external power supply be above 500mA |
| 2 | EN/NC | 默認作為芯片使能，高電平有效，跟RST不能同時使用 Default as chip enable, high level effective, cannot be used simultaneously with RST |
| 3 | IO14 | GPIO14/SPI_SS/IIC_SCL/PWM_CH4/ADC_CH2 |
| 4 | IO17 | GPIO17/SPI_MOSI/MISO/IIC_SDA/PWM_CH2 |
| 5 | IO3 | GPIO3/SPI_SCLK/IIC_SDA/PWM_CH3 |
| 6 | IO4 | GPIO4/SPI_MOSI/MISO/IIC_SCL/PWM_CH4/ADC_CH4 |
| 7 | IO2 | 不推薦使用，與模組內部 Flash 共用，(Not recommended to use, shared with internal Flash of the module) GPIO2/SPI_SS/IIC_SCL/PWM_CH2 |
| 8 | IO8/NC | 默認 NC，不可使用，如果引出，功能支持 (Default NC, not available. If exported, the function is supported) Bootstrap/GPIO8/SPI_MOSI/MISO/IIC_SCL/PWM_CH3 |
| 9 | GND | 接地 Grounding |
| 10 | IO5 | GPIO5/SPI_MOSI/MISO/IIC_SDA/PWM_CH0/ADC_CH4 |
| 11 | RXD | RXD/GPIO7/SPI_SCLK/IIC_SDA/PWM_CH2 |
| 12 | TXD | TXD/GPIO16/SPI_MOSI/MISO/IIC_SCL/PWM_CH1 |
| 13 | NC | 懸空 Floating |
| 14 | IO1 | 不推薦使用，與模組內部 Flash 共用，(Not recommended to use, shared with internal Flash of the module) GPIO1/SPI_MOSI/MISO/IIC_SDA/PWM_CH1 |
| 15 | RST/NC | 默認懸空，可定制為復位引腳，低電平有效， Default floating, customizable as reset pin, effective at low level |
| 16 | IO11 | GPIO11/SPI_SCLK/IIC_SDA/ADC_CH10 |
| 17 | IO12 | GPIO12/SPI_MOSI/MISO/IIC_SCL/PWM_CH2/ADC_CH0 |
| 18 | NC | 懸空 Floating |
| Note: 1. As a Bootstrap, when GPIO8 is powered on and reaches a high level, the module enters burning mode; When the power on moment is low, the module starts normally. | ||
WiFi RF Performance Table
| 描述 Describe | 典型值 Typical values | 單位 Unit | ||
| 頻譜范圍 Spectrum range | 2400~2483.5 | MHz | ||
| 輸出功率 Output power | ||||
| 模式 Mode | 最小值 Minimum value | 典型值 Typical values | 最大值 Maximum value | 單位 Unit |
| 11n 模式下HT20，PA輸出功率為 | - | 16 | - | dBm |
| 11g 模式下，PA輸出功率為 | - | 17 | - | dBm |
| 11b 模式下，PA輸出功率為 | - | 19 | - | dBm |
| 接收靈敏度 Receiver sensitivity | ||||
| 模式 Mode | 最小值 Minimum value | 典型值 Typical values | 最大值 Maximum value | 單位 Unit |
| 11b,1 Mbps | - | -98 | - | dBm |
| 11b, 11 Mbps | - | -90 | - | dBm |
| 11g, 6 Mbps | - | -93 | - | dBm |
| 1lg,54 Mbps | - | -76 | - | dBm |
| 11n,HT20(MCS7) | - | -73 | - | dBm |
BLE RF Performance Table
| 描述 Describe | 典型值 Typical values | 單位 Unit | ||
| 頻譜范圍 Spectrum range | 2400~2483.5MHz | MHz | ||
| 輸出功率 Output power | ||||
| 速率模式 Rate mode | 最小值 Minimum value | 典型值 Typical values | 最大值 Maximum value | 單位 Unit |
| 1Mbps | - | 9 | 15 | dBm |
| 接收靈敏度 Receiver sensitivity | ||||
| 速率模式 Rate mode | 最小值 Minimum value | 典型值 Typical values | 最大值 Maximum value | 單位 Unit |
| 1Mbps sensitivity @ 30.8% PER | - | -96 | - | dBm |
Power consumption meter
·The following power consumption data is based on a 3.3V power supply, an ambient temperature of 25 ° C, and measured using an internal voltage regulator.
·All measurements were completed at the antenna interface with a filter in place.
·All emission data is measured based on a 100% duty cycle in continuous emission mode.
| 模式 Mode | 最小值 Minimum value | 平均值 Average value | 最大值 Maximum value | 單位 Unit |
| 發射(Transmit)802.11b，11Mbps，POUT=+21dBm | - | 260 | - | mA |
| 發射(Transmit)802.11g，54Mbps，POUT=+18dBm | - | 245 | - | mA |
| 發射(Transmit)802.11n，MCS7，POUT=+17dBm | - | 230 | - | mA |
| 接收(Receive)802.11b | - | 65 | - | mA |
| 接收(Receive)802.11g | - | 65 | - | mA |
| 接收(Receive)802.11n | - | 65 | - | mA |
| Deep-Sleep | - | 12 | - | μA |
