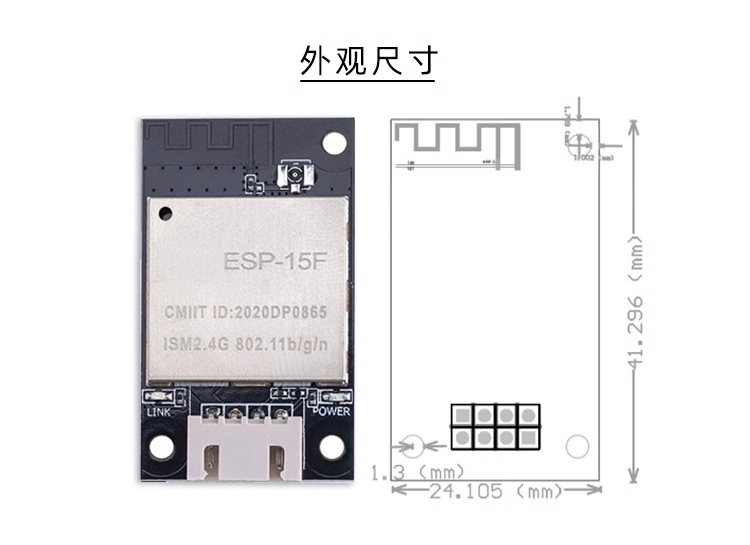

Product Size

Product Specifications

Product Characteristic

Software Features

■ Complete 802.11b/g/n Wi Fi SOC;

■ Built in Tensilicon L106 ultra-low power 32-bit micro MCU, with clock speeds supporting 80MHz and 160 MHz, supporting RTOS secondary development;

■ Built in 1 channel 10 bit high-precision ADC;

■ Only supports UART interface;

■ Adopting PH2.54 connector/DIP-8 package;

■ Integrated Wi Fi MAC/BB/RF/PA/LNA;

■ Supports multiple sleep modes, with standby power consumption as low as 1.0mW;

■ The maximum serial port speed can reach 4Mbps;

■ Embedded Lwip protocol stack;

■ Support STA/AP/STA+AP working mode;

■ Supports Android and 10S SmartConfig (APP)/AirKiss (WeChat) one click distribution network;

■ Support local serial port upgrade and remote firmware upgrade (FOTA);

■ The universal AT command can be quickly mastered, and the AT firmware is burned by default at the factory; Supports secondary development and integrates Windows and Linux development environments;

■ By using the AT command to set up WiFi MQTT cloud connection, it can be integrated with Alibaba Cloud, Tencent Cloud, Amazon Cloud, and other platforms.

Hardware features

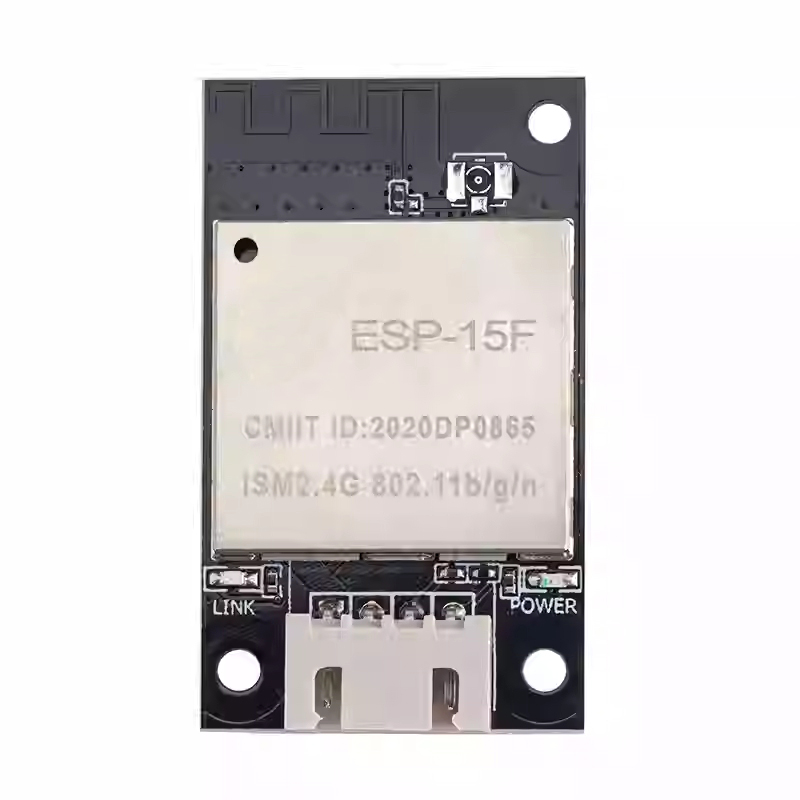

■WiFi data transmission module with ESP8266 as the core

■No need for board design, 4PIN wiring can achieve data exchange between MCU end and cloud through WiFi transmission

■Does not affect the main circuit design, only needs to lead out the serial port cable

■Supports 5V power supply, without considering compatibility with 5V microcontroller levels;

■Adopting PH2.54 connector/DIP-8 package;

■Integrated Wi Fi MAC/BB/RF/PA/LA;

■Supports multiple sleep modes, with standby power consumption as low as 1.0mW;

■The maximum serial port speed can reach 4Mbps;

■Embedded Lwip protocol stack;

■Support STA/AP/STA+AP working mode;

■Support Android and 10S Smart config (APP)/AirKiss (WeChat) one click distribution network;

■Support local serial port upgrade and remote firmware upgrade (FOTA);

■The universal AT command can be quickly mastered, and the AT firmware is burned by default at the factory;

■Supports secondary development and integrates Windows and Linux development environments;

■By using the AT command to set up WiFi MOTT cloud connection, it is possible to connect to Alibaba Cloud, Tencent Cloud, Amazon Cloud, and other platforms.

Module Startup Mode Description

Product Show

Payment&Transportation

Official Certificate&Certificate

Multiple product supply

Company office environment

Warehouse Real Shot

Standard packaging

We also provide ：
