SN74LVC08APW Overview
The part comes in 14-TSSOP (0.173, 4.40mm Width) packaging, which makes it convenient to ship overseas. To ensure high reliability, a new packaging method Tube is used. A AND Gate logic principle is used to make it work. It is necessary to ensure the full functionality of the part by providing a voltage of 1.65V~3.6V. Around -40°C~125°C is the extended operating temperature. There is a hole in Surface Mount for mounting the part. In both high and low states, output current is 24mA 24mA. This item is from the 74LVC series. In total, 14 terminations have occurred. This part is equipped with 4 functions that will greatly enhance the user's experience. It is part of the LVC/LCX/Z family of chips. 74LVC08 can help you find device variants. Into the part body are injected 14 pins. Many applications require the use of this logic device with its Surface Mount mounting. The datasheets for the 14 pins explain the functions. Inputs for this part are 2. Parts in quiescent state carry 1μA current. It has a capacitance of 50pF when loaded. Upon reaching 3.6V, the highest supply voltage (Vsup) is reached. Power supplies required for this part are specified in the datasheet as 3.3V. A device rated at 24mA has 24mA output current. This device has 1 outputs. During operation, there are 4 elements.
SN74LVC08APW Features
AND Gate Logic Type
Operating Temperature: -40°C~125°C
LVC/LCX/Z Family
Quiescent Current: 1μA
Output Current: 24mA
SN74LVC08APW Applications
There are a lot of Texas Instruments
SN74LVC08APW Gates and Inverters applications.
Computer
Television
Washing machine
Range hood
Refrigerator
VCR
Massager
Fan
Illumination
Cell phone
Product Description
Texas Instruments SN74LVC08APW
Gates & Inverters 24mA mA 1.2mm mm 57.209338mg mg Gates & Inverters 24mA mA
3.3V V 3.9 ns ns 4.1 ns ns 5mm mm Gates & Inverters 24mA mA 1.2mm mm 57.209338mg mg Surface Mount Surface Mount 1.65V~3.6V V 1μA μA
ansc Part # | ANSC- SN74LVC08APW |
Part# | SN74LVC08APW |
Type： | Integrated Circuits (ICs) |
Manufactor | Texas Instruments |
DC | new |
Package / Case | 14-TSSOP |
Supplier Device Package | Tube |
Description | Integrated Circuits (ICs)LogicGates and InvertersTexas Instruments14-TSSOPTube |

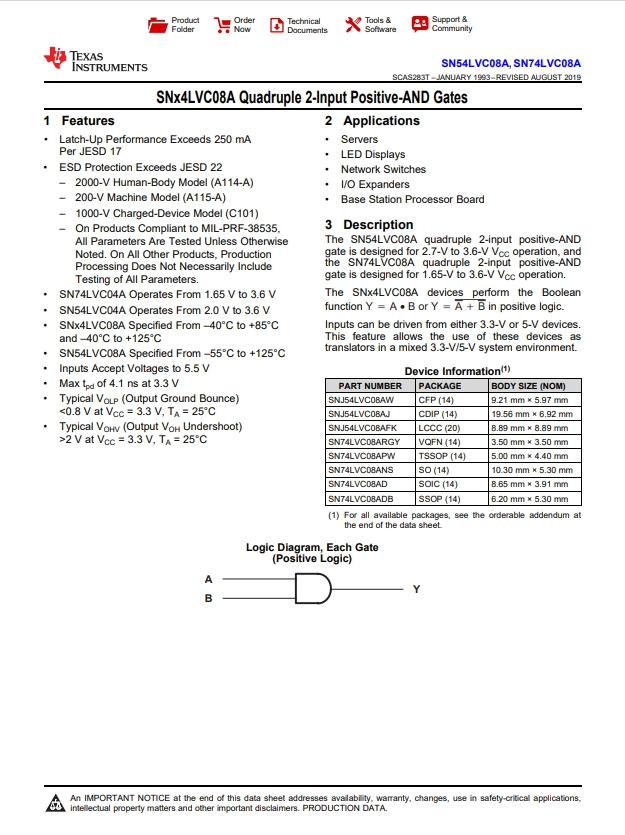

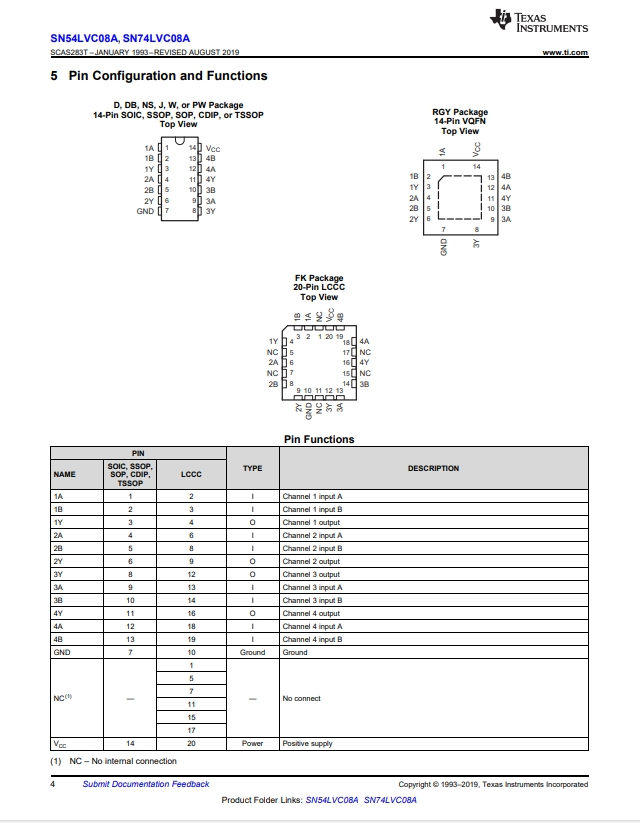

Actual image of the product
Specifications
| TYPE | DESCRIPTION |
|---|---|
| Category | Integrated Circuits (ICs)LogicGates and Inverters |
| Mfr | Texas Instruments |
| Series | 74LVC |
| Package | Tube |
| Product Status | Active |
| Logic Type | AND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 1.65V ~ 3.6V |
| Current - Quiescent (Max) | 1 μA |
| Current - Output High, Low | 24mA, 24mA |
| Input Logic Level - Low | 0.7V ~ 0.8V |
| Input Logic Level - High | 1.7V ~ 2V |
| Max Propagation Delay @ V, Max CL | 3.9ns @ 3.3V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-TSSOP |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Base Product Number | 74LVC08 |
