Product Details
Description:
The Texas Instruments LMZ21701SILT is a DC-DC converter that provides a regulated output voltage from 0.9V to 6V with a maximum output power of 6W. It is designed to operate from a wide input voltage range of 4.5V to 36V and is capable of delivering up to 6A of output current. The LMZ21701SILT features a high efficiency of up to 95%, low quiescent current, and a wide operating temperature range of -40°C to +125°C.
Features:
? Wide input voltage range of 4.5V to 36V
? Output voltage range of 0.9V to 6V
? Maximum output power of 6W
? High efficiency of up to 95%
? Low quiescent current
? Wide operating temperature range of -40°C to +125°C
? Over-temperature protection
? Over-current protection
? Short-circuit protection
? RoHS compliant
Applications:
The LMZ21701SILT is suitable for a wide range of applications including industrial, automotive, and consumer electronics. It can be used in applications such as power supplies, battery chargers, and motor drives. It is also suitable for powering FPGAs, ASICs, and other low-voltage logic circuits.
Product Description
| ansc Part # | ANSC- LMZ21701SILT |
| Part# | LMZ21701SILT |
| Type： | Power Supplies - Board MountDC DC Converters |
| Manufactor | Texas Instruments |
| DC | new |
| Package / Case | / |
| Supplier Device Package | Tape & Reel (TR)Cut Tape (CT) |
| TYPE | DESCRIPTION |
| Category | Power Supplies - Board Mount |
| DC DC Converters | |
| Mfr | Texas Instruments |
| Series | SIMPLE SWITCHER廬 Nano |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel廬 | |
| Product Status | Active |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3V |
| Voltage - Input (Max) | 17V |
| Voltage - Output 1 | 0.9 ~ 6V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Current - Output (Max) | 1A |
| Applications | ITE (Commercial) |
| Features | OCP, OTP, SCP, UVLO |
| Operating Temperature | -40擄C ~ 125擄C |
| Efficiency | 95% |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD Module |
| Size / Dimension | 0.14" L x 0.14" W x 0.07" H (3.5mm x 3.5mm x 1.8mm) |
| Control Features | Enable, Active High |
| Base Product Number | LMZ21701 |

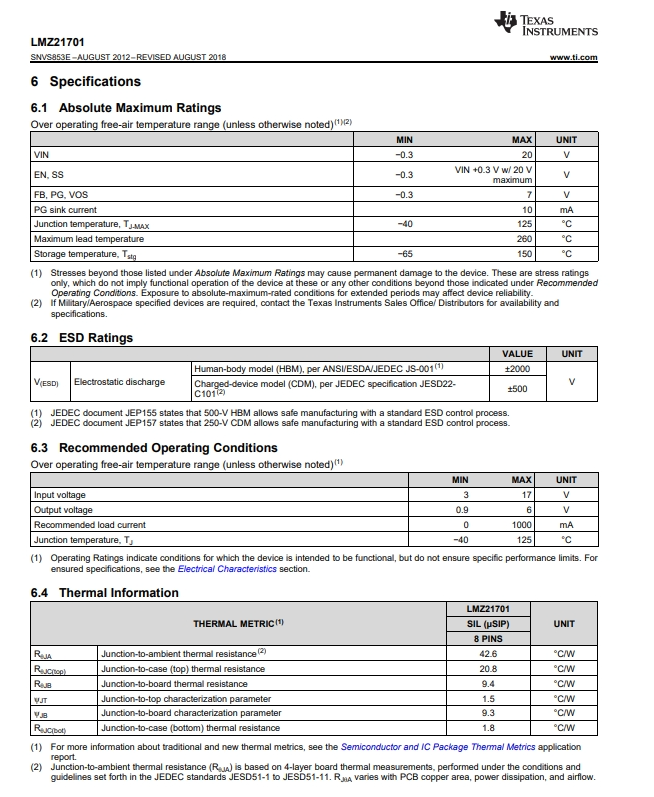

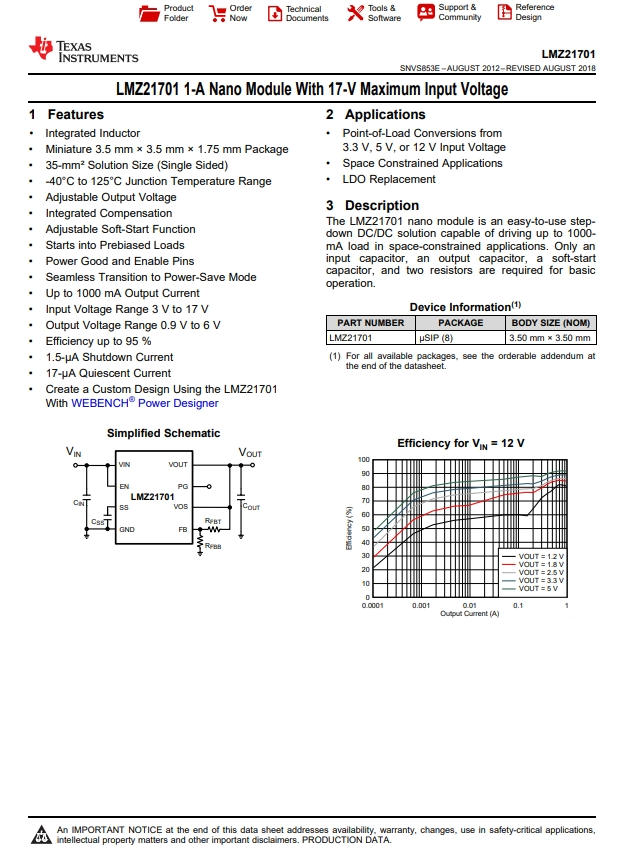

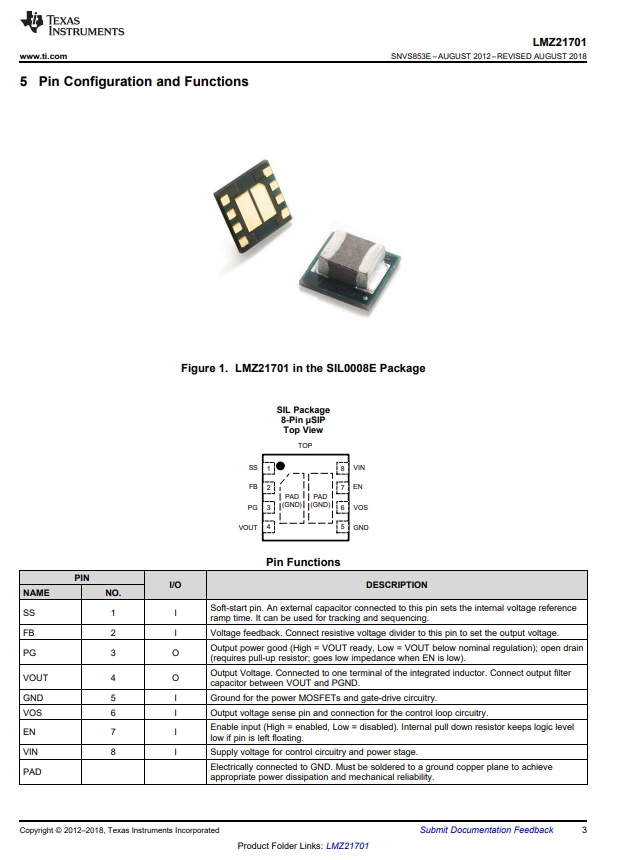

Product Data Book
Please download the more product specifications
