Product Features

High-Performance 32-bit RISC CPU:

? MIPS32? M4K? 32-bit core with 5-stage pipeline

? 80 MHz maximum frequency

? 1.56 DMIPS/MHz (Dhrystone 2.1) performance at 0 wait state Flash access

? Single-cycle multiply and high-performance divide unit

? MIPS16e? mode for up to 40% smaller code size

? Two sets of 32 core register files (32-bit) to reduce interrupt latency

? Prefetch Cache module to speed execution from Flash

Microcontroller Features:

? Operating temperature range of -40oC to +105oC

? Operating voltage range of 2.3V to 3.6V

? 32K to 512K Flash memory (plus an additional 12 KB of boot Flash)

? 8K to 32K SRAM memory

? Pin-compatible with most PIC24/dsPIC? DSC devices

? Multiple power management modes

? Multiple interrupt vectors with individually programmable priority

? Fail-Safe Clock Monitor Mode

? Configurable Watchdog Timer with on-chip Low-Power RC Oscillator for reliable operation

Peripheral Features:

? Atomic SET, CLEAR and INVERT operation on select peripheral registers

? Up to 4-channel hardware DMA with automatic data size detection

? USB 2.0-compliant full-speed device and On-The-Go (OTG) controller

? USB has a dedicated DMA channel

? 3 MHz to 25 MHz crystal oscillator

? Internal 8 MHz and 32 kHz oscillators

? Separate PLLs for CPU and USB clocks

? Two I2C? modules

? Two UART modules with:

- RS-232, RS-485 and LIN support

- IrDA? with on-chip hardware encoder and decoder

? Up to two SPI modules

? Parallel Master and Slave Port (PMP/PSP) with 8-bit and 16-bit data and up to 16 address lines

? Hardware Real-Time Clock and Calendar (RTCC)

? Five 16-bit Timers/Counters (two 16-bit pairs combine to create two 32-bit timers)

? Five capture inputs

? Five compare/PWM outputs

? Five external interrupt pins

? High-Speed I/O pins capable of toggling at up to 80 MHz

? High-current sink/source (18 mA/18 mA) on all I/O pins

? Configurable open-drain output on digital I/O pins

Debug Features:

? Two programming and debugging Interfaces:

- 2-wire interface with unintrusive access and real-time data exchange with application

- 4-wire MIPS? standard enhanced JTAG interface

? Unintrusive hardware-based instruction trace

? IEEE Standard 1149.2-compatible (JTAG) boundary scan

Analog Features:

? Up to 16-channel 10-bit Analog-to-Digital

Converter:

- 1000 ksps conversion rate

- Conversion available during Sleep, Idle

? Two Analog Comparators

Specifications

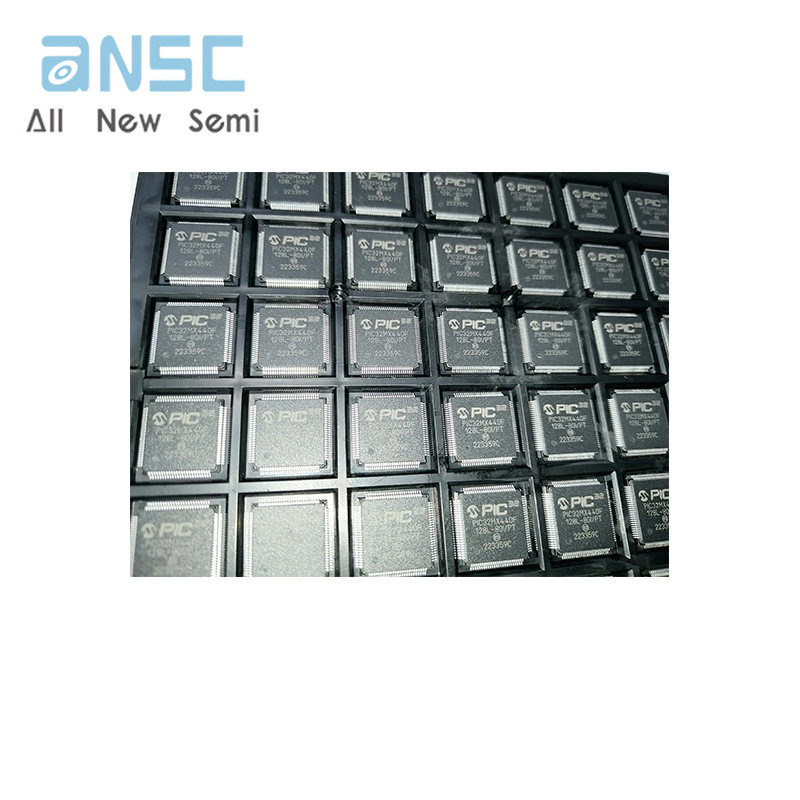

Actual product photos

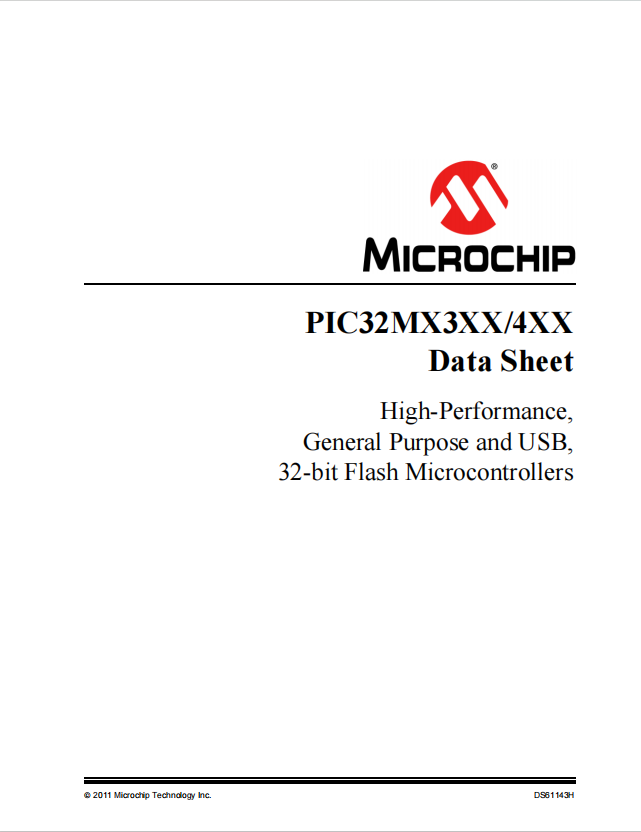

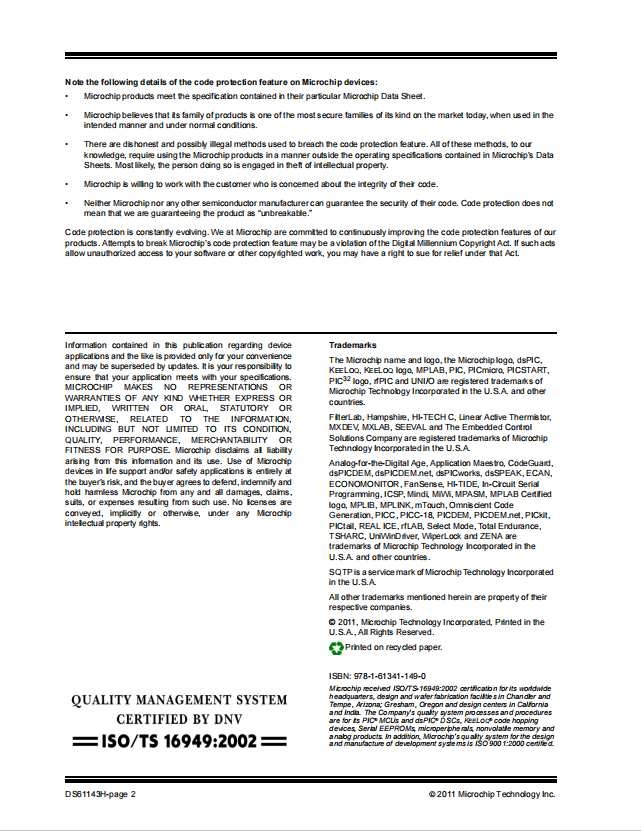

Product Data Book：

For more product information, please download the PDF
