Product Features

? Power-On Reset Generator

? Automatic Reset Generation After Voltage Drop

? Precision Voltage Sensor

? Temperature-Compensated Voltage Reference

? Programmable Delay Time by External Capacitor

? Supply Voltage Range . . . 2 V to 6 V

? Defined RESET Output from VDD ≥ 1 V

? Power-Down Control Support for Static RAM With Battery Backup

? Maximum Supply Current of 16 μA

? Power Saving Totem-Pole Outputs

? Temperature Range . . . Up to –55°C to 125°C

Product Applications

? Medical Imaging

Product Description

The TLC77xx family of micropower supply voltage supervisors provide reset control, primarily in microcomputer and microprocessor systems. During power-on, RESET is asserted when VDD reaches 1 V. After minimum VDD (≥2 V) is established, the

circuit monitors SENSE voltage and keeps the reset outputs active as long as SENSE voltage (VI(SENSE)) remains below the threshold voltage. An internal timer delays return of the output to the inactive state to ensure proper system reset.

Specifications

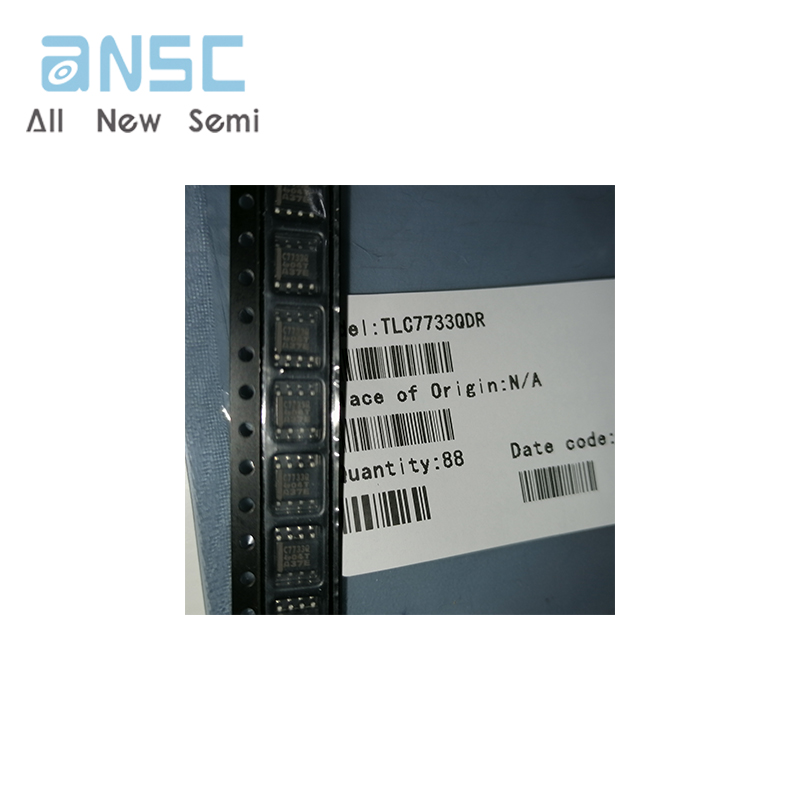

Actual product photos

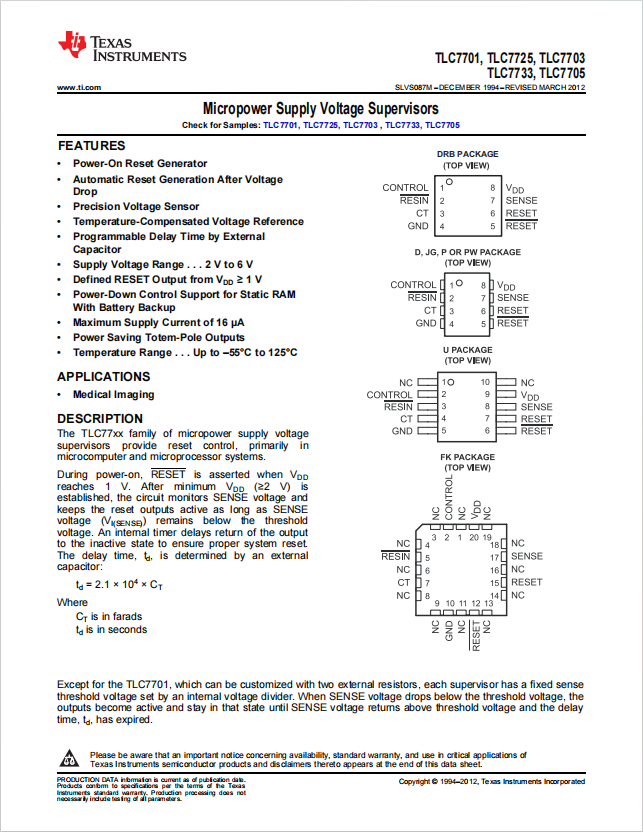

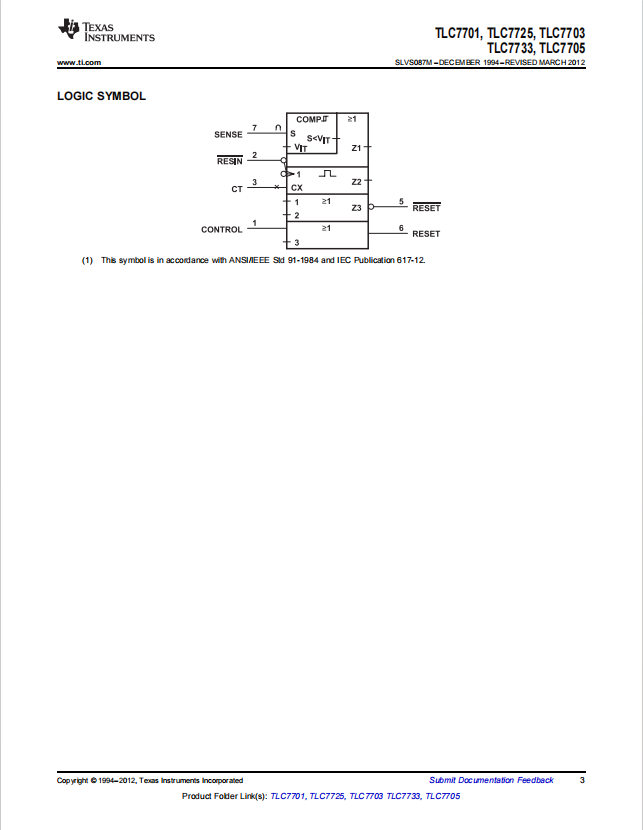

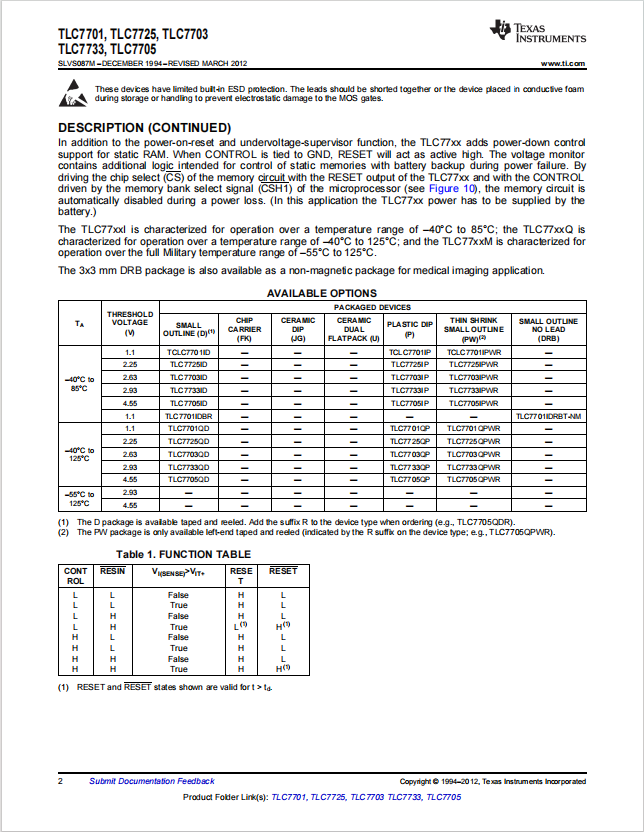

Product Data Book：

For more product information, please download the PDF
