Product Descriptions

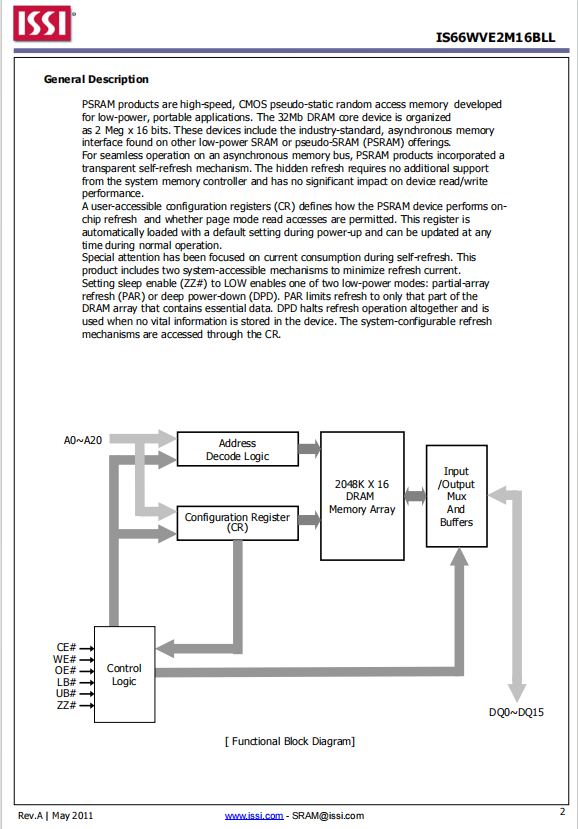

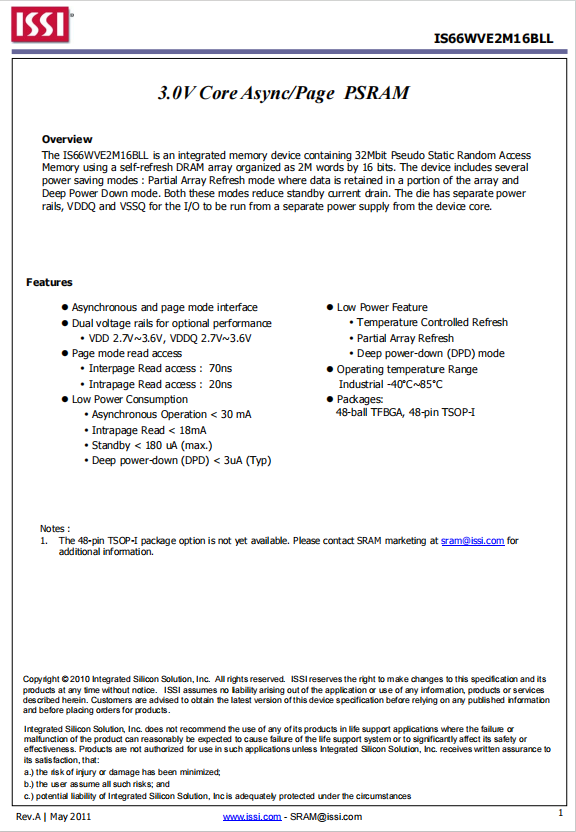

The IS66WVE2M16BLL is an integrated memory device containing 32Mbit Pseudo Static Random Access Memory using a self-refresh DRAM array organized as 2M words by 16 bits. The device includes several power saving modes : Partial Array Refresh mode where data is retained in a portion of the array and Deep Power Down mode. Both these modes reduce standby current drain. The die has separate power rails, VDDQ and VSSQ for the I/O to be run from a separate power supply from the device core.

Product Features

? Asynchronous and page mode interface

? Dual voltage rails for optional performance

? VDD 2.7V~3.6V, VDDQ 2.7V~3.6V

? Page mode read access

? Interpage Read access : 70ns

? Intrapage Read access : 20ns

? Low Power Consumption

? Asynchronous Operation < 30 mA

? Intrapage Read < 18mA

? Standby < 180 uA (max.)

? Deep power-down (DPD) < 3uA (Typ)

? Low Power Feature

? Temperature Controlled Refresh

? Partial Array Refresh

? Deep power-down (DPD) mode

? Operating temperature Range

Industrial -40°C~85°C

? Packages:

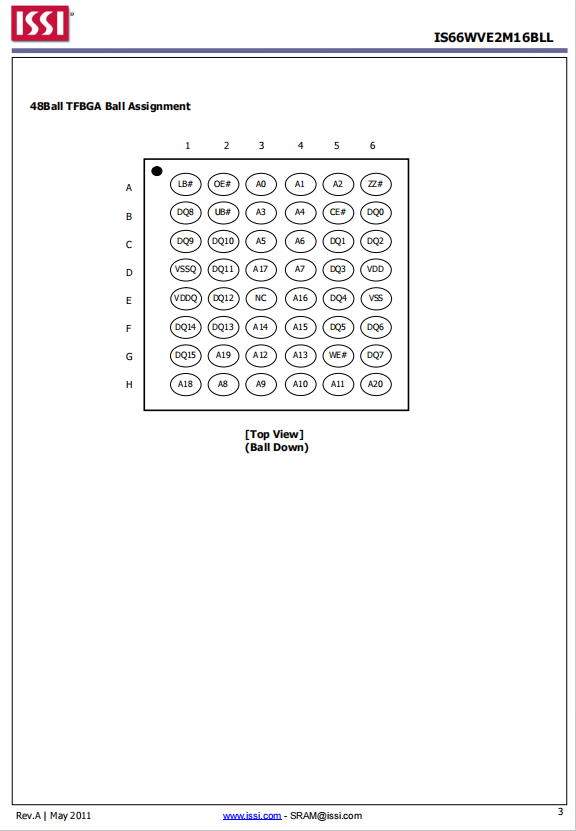

48-ball TFBGA, 48-pin TSOP-I

Specifications

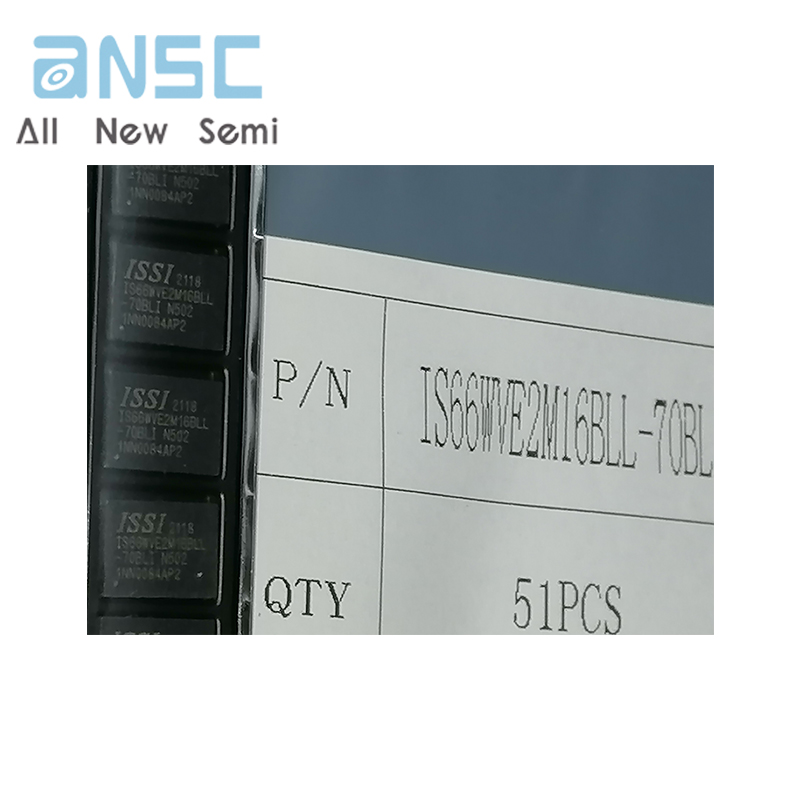

Actual product photos

Product Data Book：

For more product information, please download the PDF

Payment&Transportation

Official Certificate&Certificate

Multiple product supply

Company office environment

Warehouse Real Shot

Standard packaging

We also provide ：
