Product Descriptions

The ADS1118 is a precision, low power, 16-bit analog-to-digital converter (ADC) that provides all features necessary to measure the most common sensor signals in an ultra-small, leadless X2QFN-10 package or a VSSOP-10 package. The ADS1118 integrates a programmable gain amplifier (PGA), voltage reference, oscillator and high-accuracy temperature sensor. These features, along with a wide power supply range from 2 V to 5.5 V, make the ADS1118 ideally suited for power- and spaceconstrained, sensor-measurement applications.

The ADS1118 can perform conversions at data rates up to 860 samples per second (SPS). The PGA offers input ranges from ±256 mV to ±6.144 V, allowing both large and small signals to be measured wit high resolution. An input multiplexer (MUX) allows to measure two differential or four single-ended inputs.

The high-accuracy temperature sensor can be used for system-level temperature monitoring or coldjunction compensation for thermocouples.

The ADS1118 operates either in continuousconversion mode, or in a single-shot mode that automatically powers down after a conversion.

Single-shot mode significantly reduces current consumption during idle periods. Data are transferred through a serial peripheral interface (SPI?). The ADS1118 is specified from –40°C to +125°C.

Product Features

? Ultrasmall X2QFN Package:

2 mm × 1.5 mm × 0.4 mm

? Wide Supply Range: 2 V to 5.5 V

? Low Current Consumption:

– Continuous Mode: Only 150 μA

– Single-Shot Mode: Automatic Power Down

? Programmable Data Rate:

8 SPS to 860 SPS

? Single-Cycle Settling

? Internal Low-Drift Voltage Reference

? Internal Temperature Sensor:

0.5°C (Maximum) Error: 0°C to 70°C

? Internal Oscillator

? Internal PGA

? Four Single-Ended or Two Differential Inputs

Product Applications

? Temperature Measurement:

– Thermocouple Measurement

– Cold-Junction Compensation

– Thermistor Measurement

? Portable Instrumentation

? Factory Automation and Process Controls

Specifications

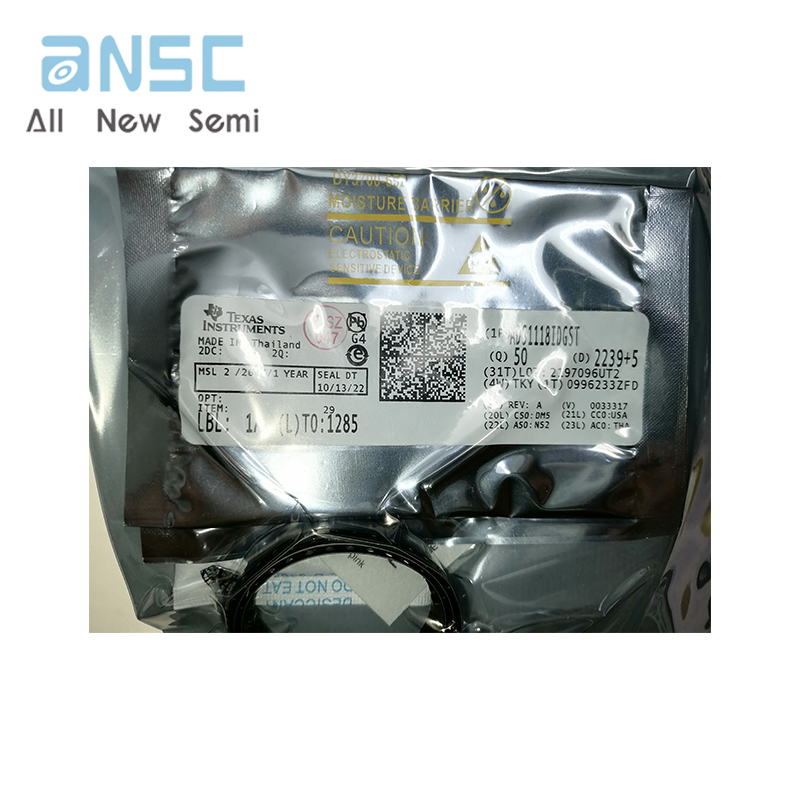

Actual product photos
