Product Features
? Short-circuit protection
? Input protection
? Overtemperature protection with hysteresis
? Overload protection
? Overvoltage protection
? Switching inductive load
? Clamp of negative output voltage with inductive loads
? Undervoltage shutdown
? Maximum current internally limited
? Electrostatic discharge (ESD) protection
? Reverse battery protection1)
Product Application
? μC compatible power switch for 12 V DC grounded loads for industrial applications
? All types of resistive, inductive and capacitive loads
? Replaces electromechanical relays and discrete circuits
Product General Description
? N channel vertical power FET with charge pump, ground referenced CMOS compatible input, monolithically integrated in Smart SIPMOS? technology.
? Providing embedded protection functions.
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-ISP452HUMA1 |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Power Distribution Switches, Load Drivers | |
| Mfr | Infineon Technologies |
| Series | miniPROFET? |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel? | |
| Product Status | Active |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 0.042361111 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 5V ~ 34V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 700mA |
| Rds On (Typ) | 160mOhm |
| Input Type | Non-Inverting |
| Features | - |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-SOT223-4 |
| Package / Case | TO-261-4, TO-261AA |
| Base Product Number | ISP452 |

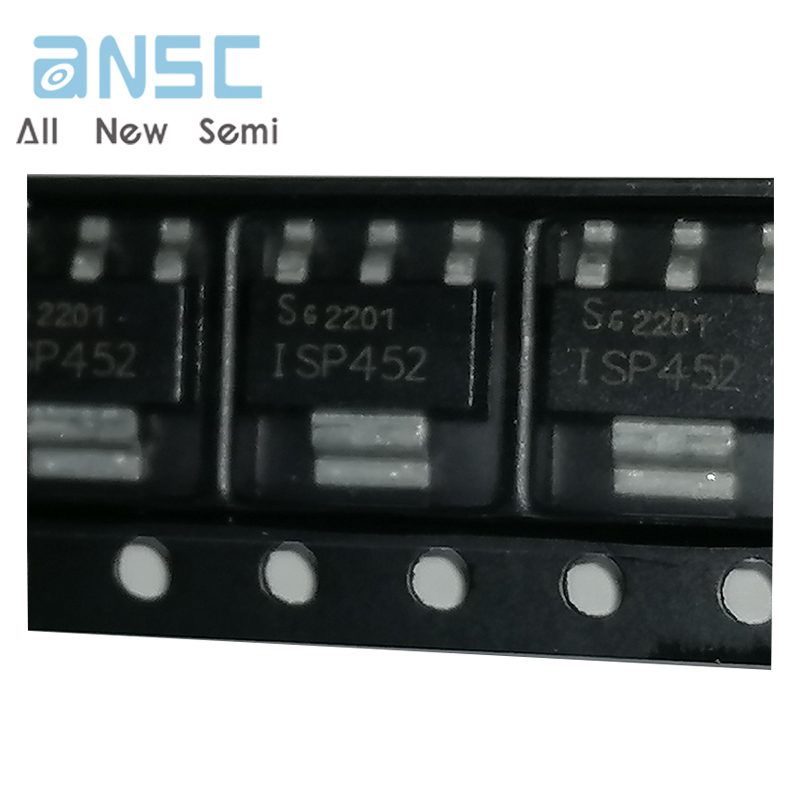

Actual product photos
Product Data Book：
For more product information, please download the PDF
Payment&Transportation
Official Certificate&Certificate
Multiple product supply
Company office environment
Warehouse Real Shot
Standard packaging
