Product Descriptions

The SG79xxA/SG79xx series of negative regulators offer self-contained, fixed voltage capability with up to 1.5A of load current and input voltage up to -30V. With a variety of output voltages this regulator series is an optimum complement to the SG7800A/SG7800 positive three terminal regulators.

These units feature a unique band gap reference which allows the SG79xxA series to be specified with an output voltage tolerance of ±1.5 peicent.

The SG79xxA versions also offer much improved line regulation characteristics.

All protective features of thermal shutdown, current limiting, and safe-area control have been designed into these units and since these regulators require only a single output capacitor (SG79xx series) or a capacitor and 5mA minimum load (SG120 series) for satisfactory performance, ease of application is assured.

Although designed as fixed-voltage regulators, the output voltage can be increased through the use of a simple voltage divider. The low quiescent drain current of the device insures good regulation when this method is used.

These devices are available in hermetically sealed TO-257 (both case grounded ‘G’ and isolated ‘IG’), TO-3, TO-39, and LCC packages.

Product Features

? Output Voltage Set Internally to ±1.5 percent on SG79xxA

? Output Current up to 1.5A

? Excellent Line and Load Regulation

? Foldback Current Limiting

? Thermal Overload Protection

? Voltages Available: -5V, -12V, -15V

? Contact Factory for Other Voltage Options

? Available in Surface Mount Package

Product Applications

? Available to MIL-STD - 883, ? 1.2.1

? MIL-M38510/11501BXA - SG7905T-JAN

? MIL-M38510/11505BYA - SG7905K-JAN

? MIL-M38510/11502BXA - SG7912T-JAN

? MIL-M38510/11506BYA - SG7912K-JAN

? MIL-M38510/11503BXA - SG7915T-JAN

? MIL-M38510/11507BYA - SG7915K-JAN

? MIL-M38510/11508BYA - SG7924K-JAN

? MSC-AMS level "S" Processing Available

? Available to DSCC

Standard Microcircuit Drawing (SMD)

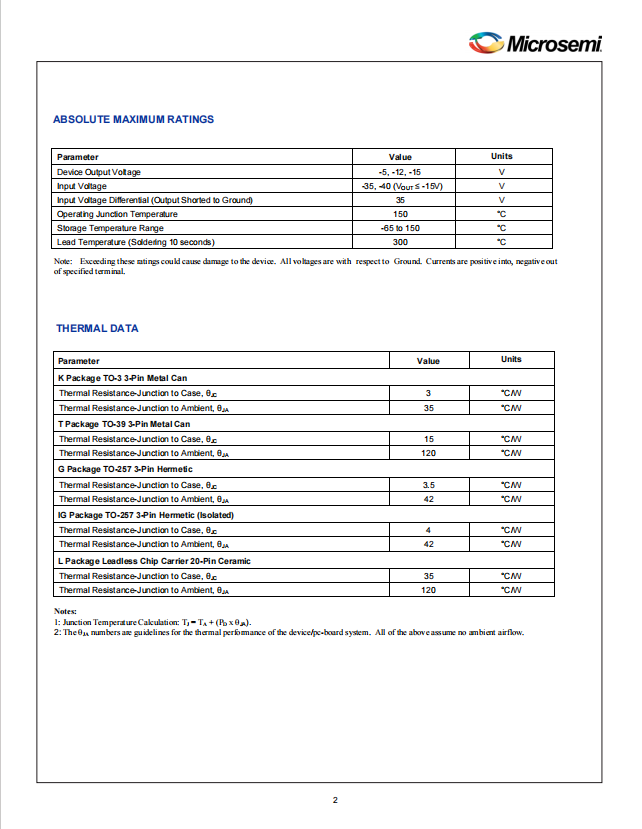

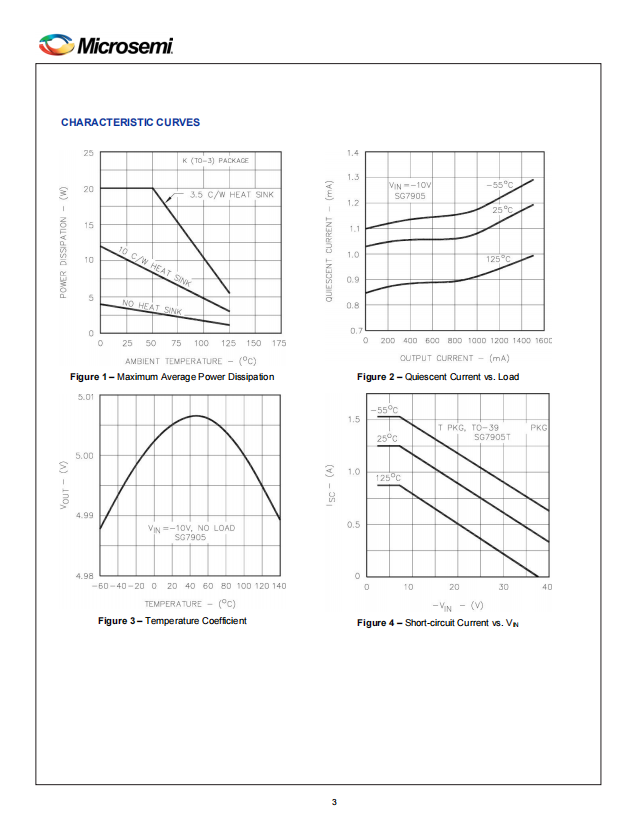

Specifications

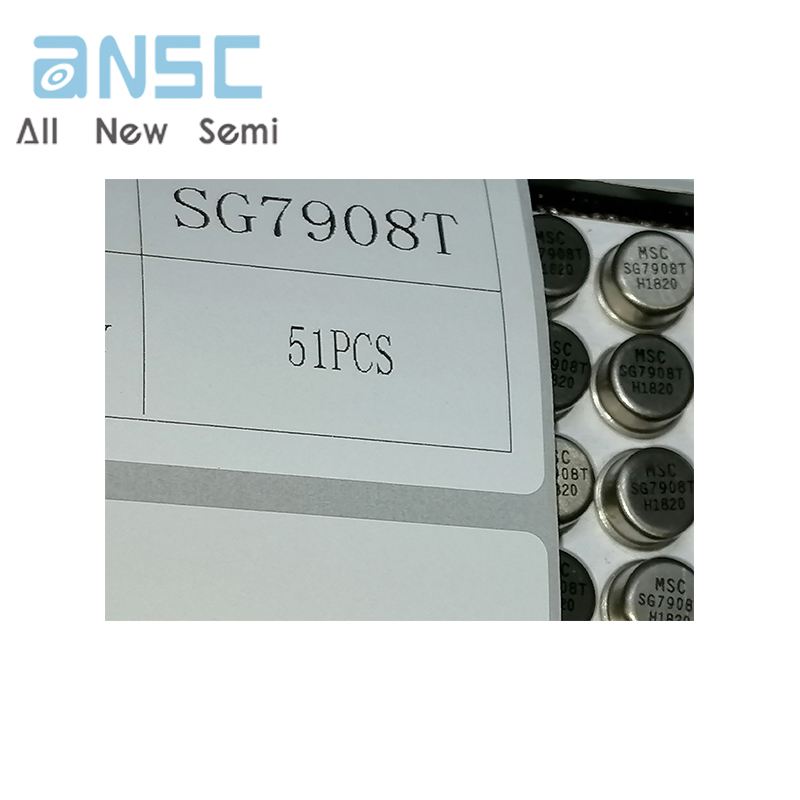

Actual product photos

Product Data Book：

For more product information, please download the PDF
