High quality sales of TPS54286PWP 2-A DUAL NON-SYNCHRONOUS CONVERTER WITH INTEGRATED HIGH-SIDE MOSFET

TPS54286PWP

Model:TPS54286PWP

Manufacturer:TI

Package:14-HTSSOP

詳情

Product Descriptions


TPS54283TPS54286andaredualoutputcapableofnon-synchronousbuck converterssupporting 2-A output applications that operate from a4.5-V to 28-V input supply voltage, and require outputvoltages between 0.8 V and 90% of the input voltage.


With internally-determined operating frequency, softstart time,and control loop compensation, theseconverters provide many features with a minimum ofChannel1overcurrentexternalcomponents.protection is set at 3 A, while Channel 2 overcurrentprotection level is selected by connecting a pin toground, to BP, or left floating. The setting levels areused to allow for scaling of external components forapplications not needing the full load capability ofboth outputs.


The outputs may be enabled independently, or maybe configured to allow either ratiometric or sequentialstartup sequencing. Additionally, the two outputs mayalso be powered from different sources


Product Features


  • 4.5-V to 28-V Input Range

  • Output Voltage Range 0.8 V to 90% of lnput Voltage

  • Output Current Up to 2 A

  • Two Fixed Switching Frequency Versions:

  • - TPS54283: 300 kHz

  • - TPS54286: 600 kHz

  • Two Selectable Levels of Overcurrent Protection (Output 2)

  • 0.8-V 1.5% Voltage Reference

  • 2.1-ms Internal Soft Start

  • Dual PWM Outputs 180° Out-of-Phase

  • Ratiometric or Sequential Startup Modes Selectable by a Single Pin

  • 100-m ohm Internal High-Side MOSFETs

  • Current Mode Control

  • Internal Compensation (See Page 16)

  • Pulse-by-Pulse Overcurrent Protection

  • Thermal Shutdown Protection at 148°C

  • 14-Pin PowerPADTM HTSSOP package


Product Applications


  • Set Top Box

  • Digital TV

  • Power for DSP

  • Consumer Electronics


Specifications


AttributeAttribute value
ANSM-Part#ANSM-TPS54286PWP
CategoryIntegrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators - DC DC Switching Regulators
MfrTexas Instruments
Series-
PackageTube
Product StatusActive
FunctionStep-Down
Output ConfigurationPositive
TopologyBuck
Output TypeAdjustable
Number of Outputs2
Voltage - Input (Min)4.5V
Voltage - Input (Max)28V
Voltage - Output (Min/Fixed)0.8V
Voltage - Output (Max)25.2V
Current - Output2A
Frequency - Switching630kHz
Synchronous RectifierNo
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case14-PowerTSSOP (0.173", 4.40mm Width)
Supplier Device Package14-HTSSOP
Base Product NumberTPS54286

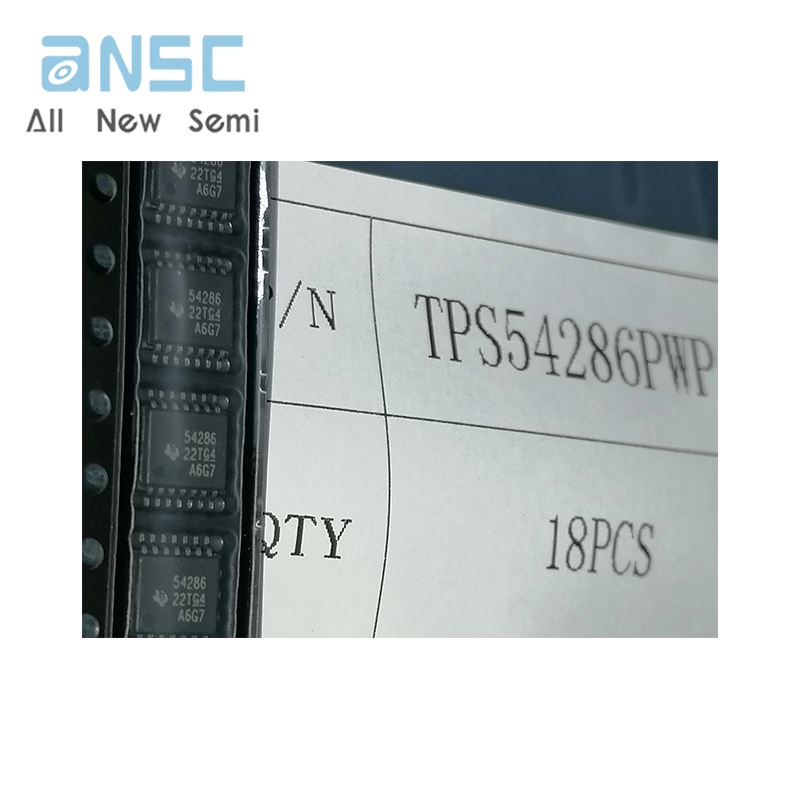

Actual product photos


TPS54286PWP


Product Data Book:



For more product information, please download the PDF
