Product Descriptions

The MAX8887/MAX8888 low-dropout linear regulators operate from a 2.5V to 5.5V input and deliver up to 300mA continuous (500mA pulsed) current. The MAX8887 is optimized for low-noise operation, while the MAX8888 includes an open-drain power-OK (POK) ouput flag. Both regulators feature exceptionally low 100mV dropout at 200mA. These devices are available in a variety of preset output voltages in the 1.5V to 3.3V range.

An internal PMOS pass transistor allows the low 55μA supply current to remain independent of load, making these devices ideal for portable battery-powered equipment such as personal digital assistants (PDAs), cellular phones, cordless phones, and notebook computers. Other features include a micropower shutdown mode, short-circuit protection, thermal shutdown protection,  and an active-low open-drain POK output that indicates when the output is out of regulation. The MAX8887/MAX8888 are available in a thin 5-pin SOT23 package that is only 1mm high.

Product Features

? Guaranteed 300mA Output Current (500mA for Pulsed Loads)

? Low 100mV Dropout at 200mA Load

? POK Output (MAX8888)

? 42μVRMS Output Noise (MAX8887)

? Preset Output Voltages (1.5V, 1.8V, 2.85V, and 3.3V)

? 55μA No-Load Supply Current

? Thermal-Overload and Short-Circuit Protection

? Foldback Output Current-Limit Protection

? 60dB PSRR at 1kHz

? 0.1μA Shutdown Current

? Thin 5-Pin SOT23 Package, 1mm High

Product Applications

? Notebook Computers

? Wireless Handsets

? PDAs and Palmtop Computers

? Digital Cameras

? PCMCIA Cards

? Hand-Held Instruments

Specifications

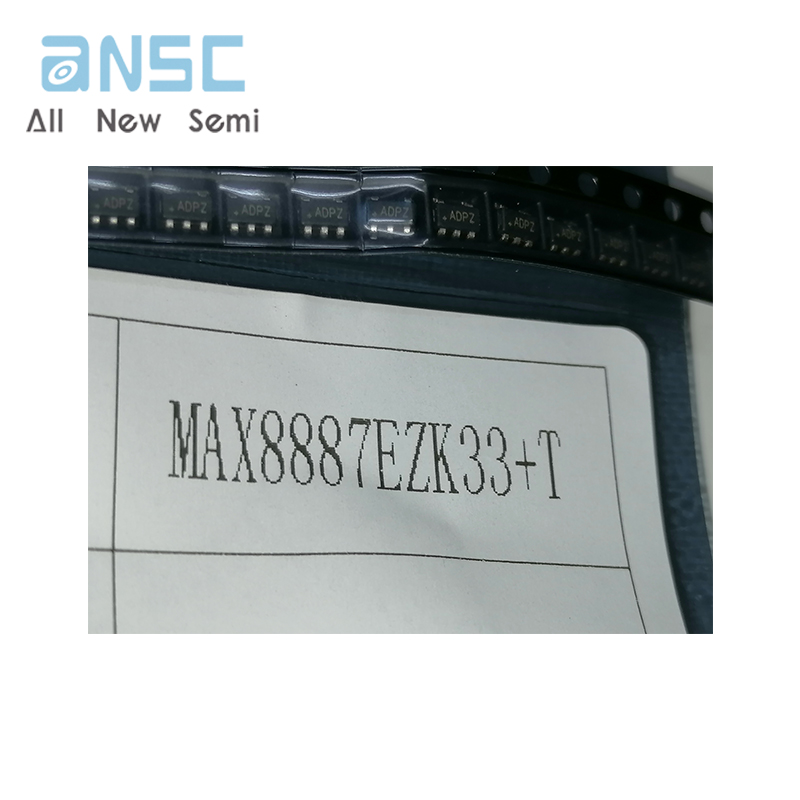

Actual product photos

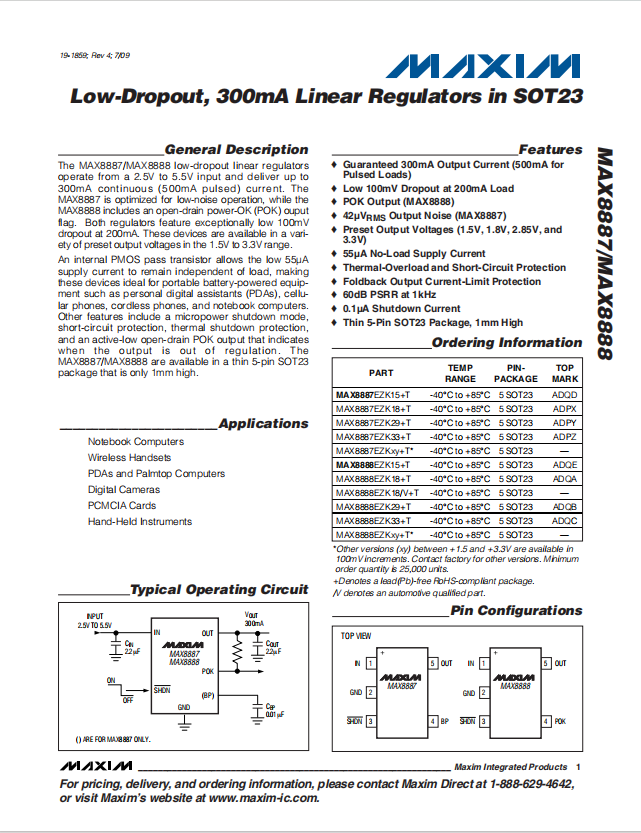

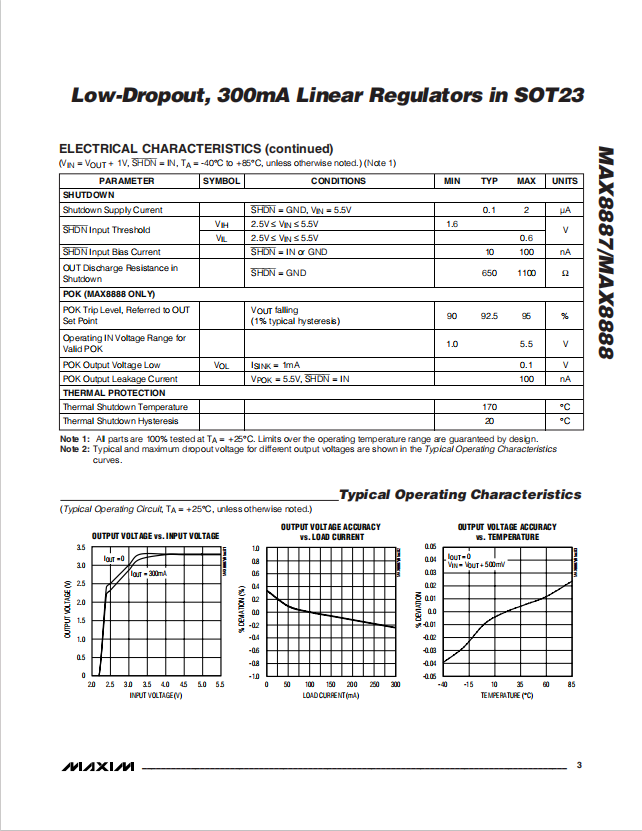

Product Data Book：

For more product information, please download the PDF
