Product Descriptions

The HSMP-380X and HSMP-381X series are specifically designed for low distortion attenuator applications. The HSMP-382X series is optimized for switching applications where ultra-low resistance is required. The HSMP-3880 switching diode is an ultra low distortion device optimized for higher power applications from 50 MHz to 1.5 GHz. The HSMP-389X series is optimized for switching applications where low resistance at low current and low capacitance are required. The HSMP-48XX series are special products featuring ultra low parasitic inductance in the SOT-23 package, specifically designed for use at frequencies which are much higher than the upper limit for conventional SOT-23 PIN diodes. The HSMP-4810 diode is a low distortion attenuating PIN designed for operation to 3 GHz. The HSMP-4820 diode is ideal for limiting and low inductance switching applications up to 1.5 GHz. The HSMP-4890 is optimized for low current switching applications up to 3 GHz.

The HSMP-386X series of general purpose PIN diodes are designed for two classes of applications.The first is attenuators where current consumption is the most important design consideration.The second application for this

series of diodes is in switches where low cost is the driving issue for the designer.

The HSMP-386X series Total Capacitance (CT) and Total Resistance (RT) are typical specifications. For applications that require guaranteed performance, the general purpose HSMP-383X series is recommended. For low distortion Description/Applications The HSMP-380X and HSMP-381X series are specifically designed for low distortion attenuator applications. The HSMP-382X series is optimized for switching applications where ultra-low resistance is required. The HSMP-3880 switching diode is an ultra low distortion device optimized for higher power applications from 50 MHz to 1.5 GHz. The HSMP-389X series is optimized for switching applications where low resistance at low current and low capacitance are attenuators, the HSMP-380X or-381X series are recommended.For high performance switching applications, the HSMP-389X series is recommended.

A SPICE model is not available for PIN diodes as SPICE does not provide for a key PIN diode characteristic, carrier lifetime.

Product Features

? Diodes Optimized for:

Low Current Switching

Low Distortion Attenuating

Ultra-Low Distortion

Switching

Microwave Frequency

Operation

? Surface Mount SOT-23 and SOT-143 Packages

Single and Dual Versions

Tape and Reel Options

Available

? Low Failure in Time (FIT)Rate

Specifications

Actual product photos

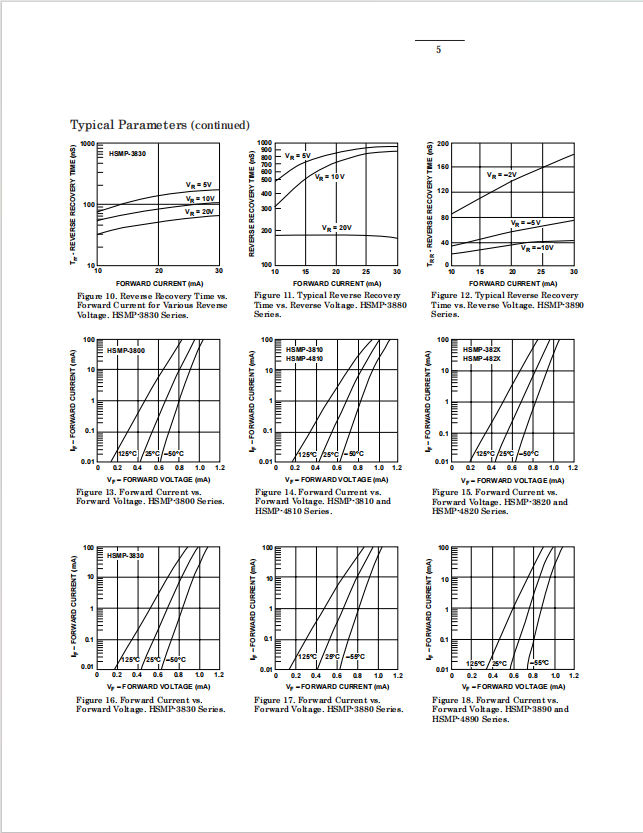

Product Data Book：

For more product information, please download the PDF
