Product Features

? Low Supply-Voltage Range, 1.8 V to 3.6 V

? Ultralow-Power Consumption:

? Active Mode: 280 μA at 1 MHz, 2.2 V

? Standby Mode: 1.1 μA

? Off Mode (RAM Retention): 0.1 μA

? Five Power Saving Modes

? Wake-Up From Standby Mode in Less Than 6 μs

? 16-Bit RISC Architecture,125-ns Instruction Cycle Time

? 12-Bit A/D Converter With Internal Reference, Sample-and-Hold and

Autoscan Feature

? 16-Bit Timer_B With Three? or Seven? Capture/Compare-With-Shadow Registers

? 16-Bit Timer_A With Three Capture/Compare Registers

? On-Chip Comparator

? Serial Communication Interface (USART),

Select Asynchronous UART or

Synchronous SPI by Software:

? Two USARTs (USART0, USART1)?

? One USART (USART0)?

? Brownout Detector

? Supply Voltage Supervisor/Monitor With Programmable Level Detection

? Serial Onboard Programming,No External Programming Voltage Needed

Programmable Code Protection by SecurityFuse

? Integrated LCD Driver for up to 160 Segments

? Bootstrap Loader

? Family Members Include:

? MSP430F435, MSP430F4351§:

16KB+256B Flash Memory,

512B RAM

? MSP430F436, MSP430F4361§:

24KB+256B Flash Memory,

1KB RAM

? MSP430F437, MSP430F4371§:

32KB+256B Flash Memory,

1KB RAM

? MSP430F447:

32KB+256B Flash Memory,

1KB RAM

? MSP430F448, MSP430F4481§:

48KB+256B Flash Memory,

2KB RAM

? MSP430F449, MSP430F4491§:

60KB+256B Flash Memory,

2KB RAM

? For Complete Module Descriptions, See The MSP430x4xx Family User’s Guide,Literature Number SLAU056

Product Descriptions

The Texas Instruments MSP430 family of ultralow power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The devices feature a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6 μs.

The MSP430x43x(1) and the MSP430x44x(1) series are microcontroller configurations with two built-in 16-bit timers, a fast 12-bit A/D converter (not implemented on the MSP430F43x1 and MSP430F44x1 devices), one or two universal serial synchronous/asynchronous communication interfaces (USART), 48 I/O pins, and a liquid crystal driver (LCD) with up to 160 segments.

Typical applications include sensor systems that capture analog signals, convert them to digital values, and process and transmit the data to a host system, or process this data and display it on a LCD panel. The timers make the configurations ideal for industrial control applications such as ripple counters, digital motor control,EE-meters, hand-held meters, etc. The hardware multiplier enhances the performance and offers a broad code and hardware-compatible family solution.

  Specifications

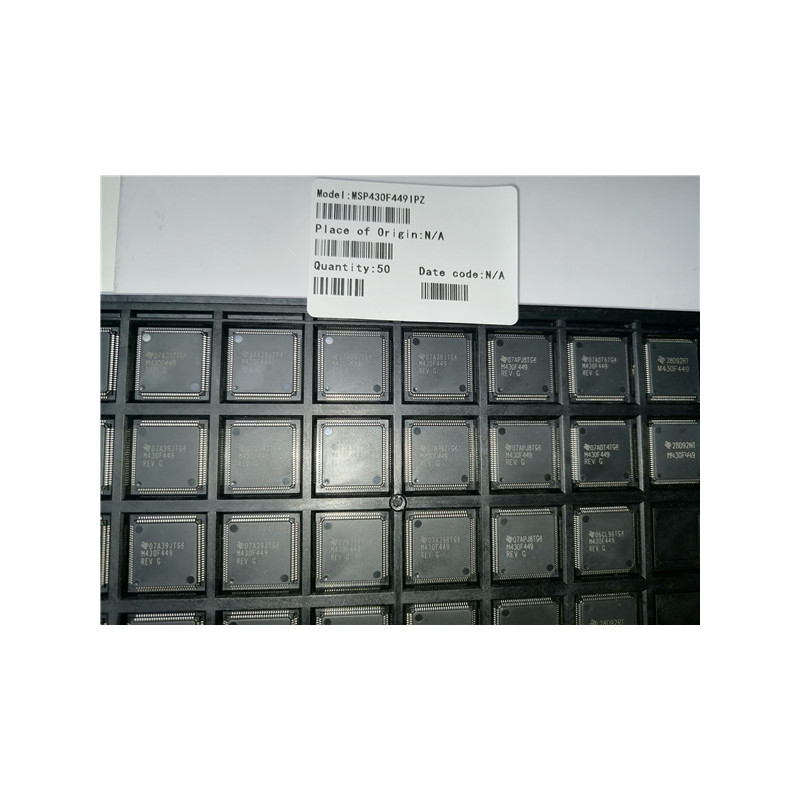

Actual product photos

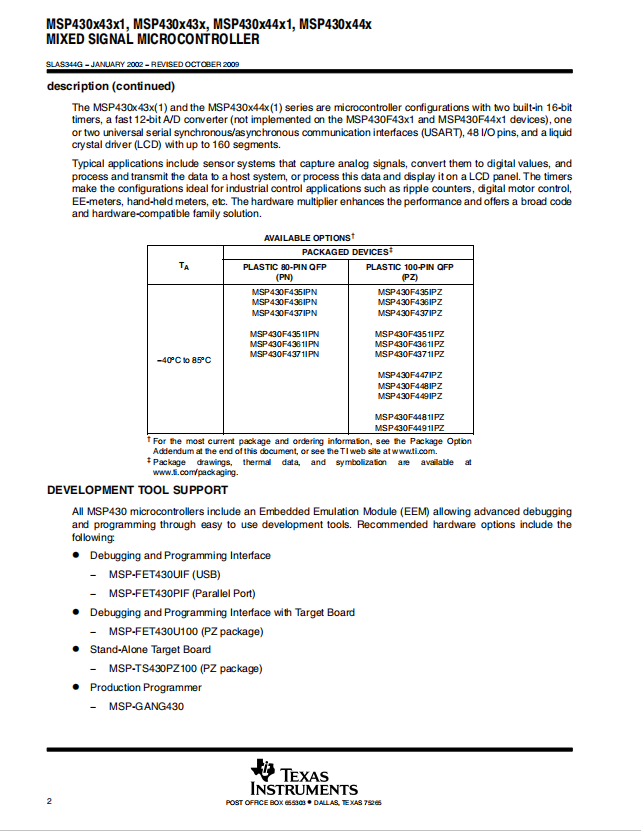

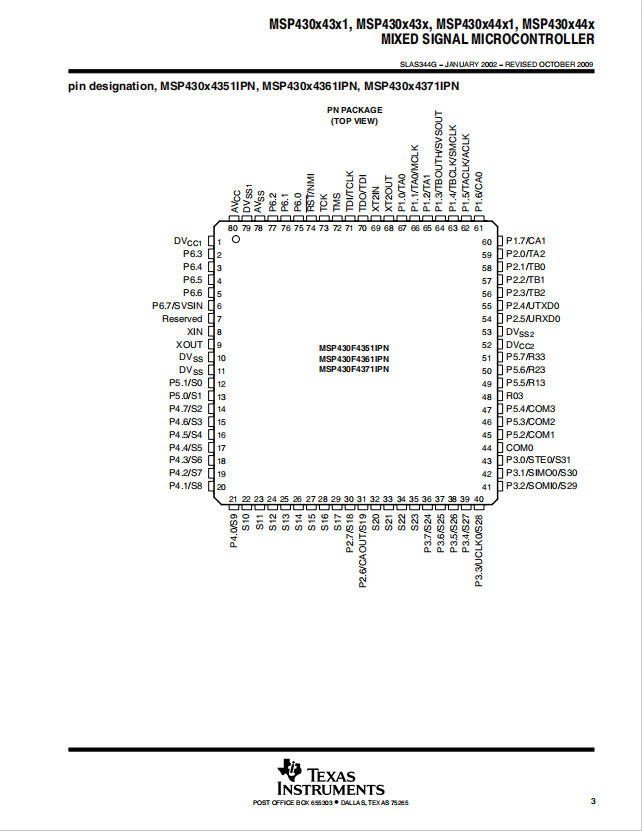

Product Data Book：

For more product information, please download the PDF
