Product Descriptions

The LCX16245 contains sixteen non-inverting bidirectional

buffers with 3-STATE outputs and is intended for bus oriented applications. The device is designed for low voltage(2.5V or 3.3V) VCC applications with capability of interfacing to a 5V signal environment. The device is byte controlled. Each byte has separate control inputs which could be shorted together for full 16-bit operation. The T/R inputs determine the direction of data flow through the device.The OE inputs disable both the A and B ports by placing them in a high impedance state.

The LCX16245 is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.

Product Features

■ 5V tolerant inputs and outputs

■ 2.3V–3.6V VCC specifications provided

■ 4.5 ns tPD max (VCC 3.3V), 20 PA ICC max

■ Power down high impedance inputs and outputs

■ Supports live insertion/withdrawal (Note 1)

■ r24 mA output drive (VCC 3.0V)

■ Uses patented noise/EMI reduction circuitry

■ Latch-up performance exceeds 500 mA

■ ESD performance:

    Human body model ! 2000V

    Machine model ! 200V

■ Also packaged in plastic Fine-Pitch Ball Grid Array(FBGA)

Specifications

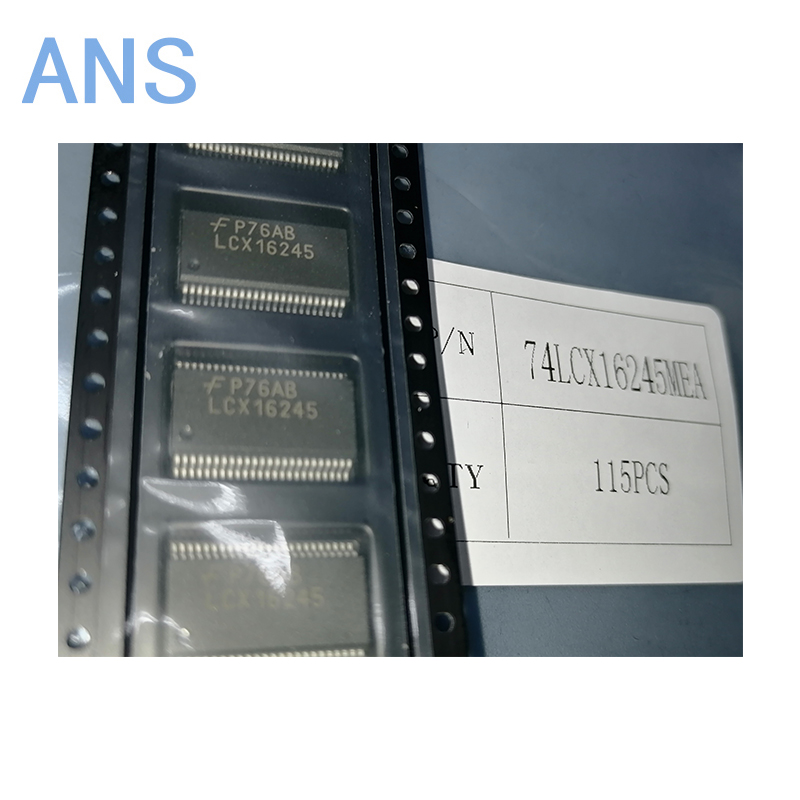

Actual product photos

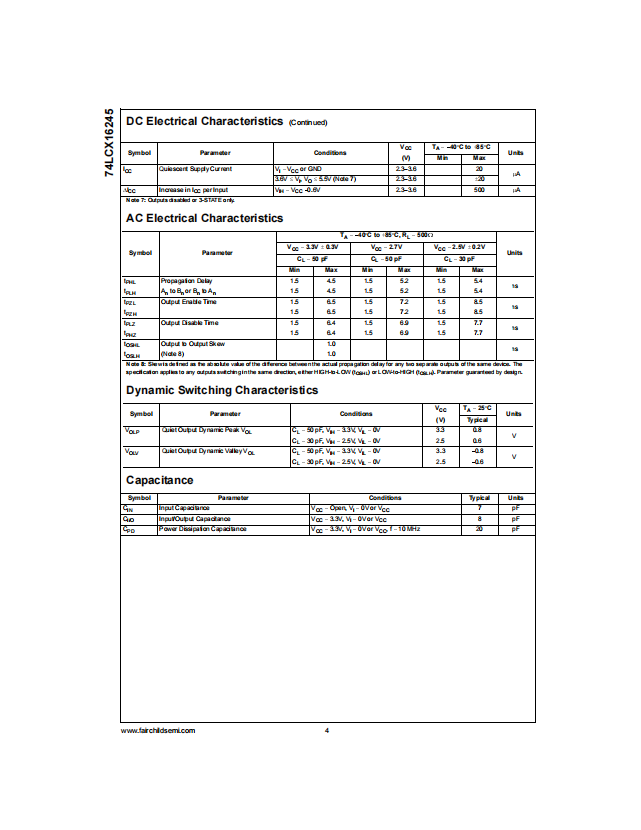

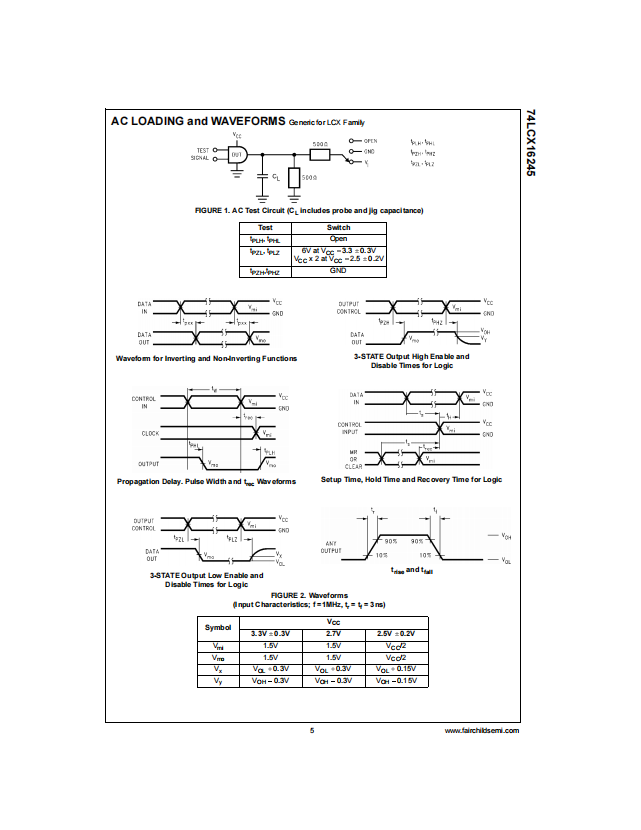

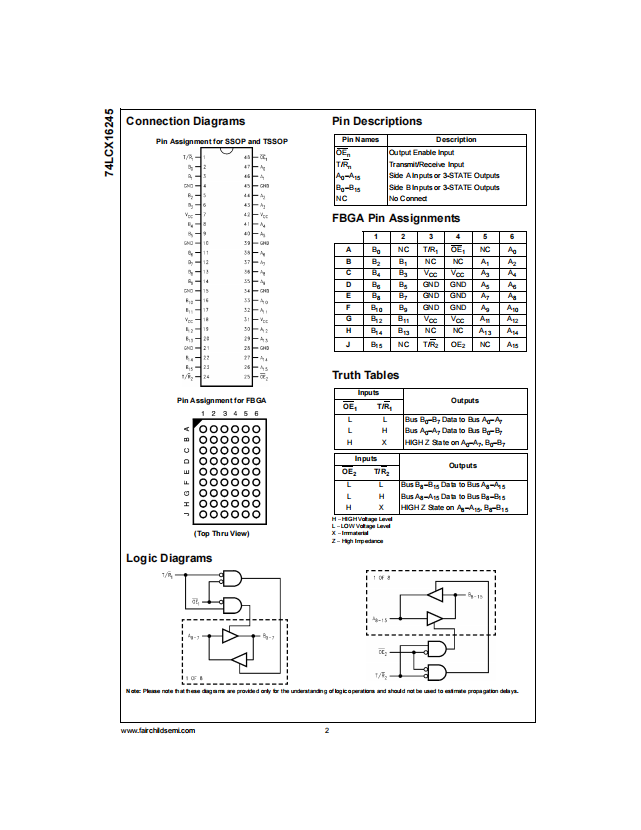

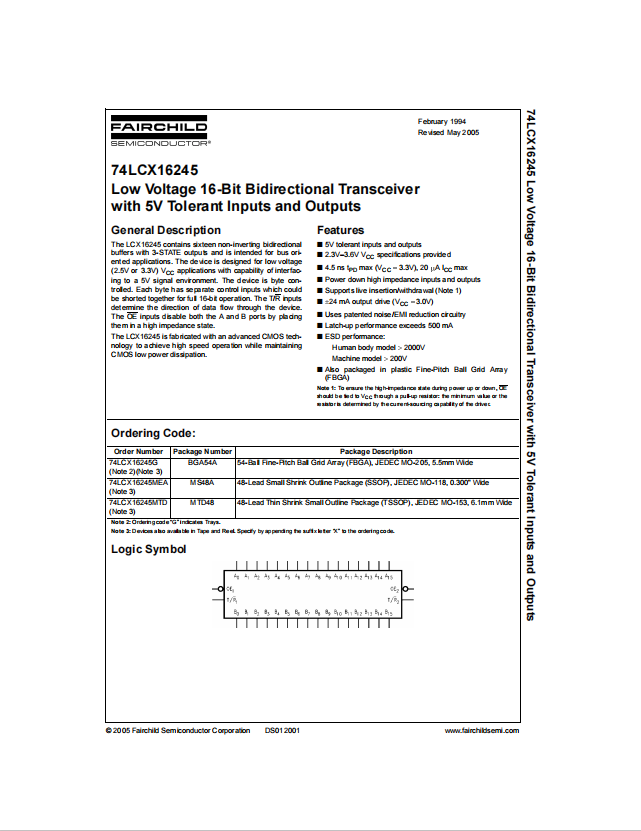

Product Data Book：

For more product information, please download the PDF
